T 3638 000
| Manufacturer | |
| Description | Circular DIN Connectors 12 Pin female recpt; Panel Mount CONN CIR RCPT FMALE 12POS PNLMNT CIRCULAR, RECEPTACLE, 12 WAY, PANEL connector, circular din, female panel recept, front mt, 12 silver-pltd solder cont Device bushing C091A 12-pin Poles=12, T 3638 000, Amphenol |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 000 3638 T U | Product Category | Circular DIN Connectors |
| Standard Package | 105 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| Tariff No | 85369010 | Approval Agency Marking | UL Recognized/IEC |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage Rating | 150V | Voltage - Supply | DIN |
| Current Rating (Max) | 3A | ||
Mechanical
| Weight | 0.05 | Packaging | Bulk |
| Cable Exit | Internal | Wire Gauge | 24 |
| Orientation | Keyed | Termination | Solder Cup |
| Contact Type | Socket | Mounting Type | Panel Mount |
| Shell Plating | Nickel | Angle of Throw | Straight |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Silver |
| Fastening Type | Threaded | Housing Finish | Nickel |
| Package / Case | Metal | Connector Usage | Threaded |
| Insertion Angle | :- | Material - Body | :- |
| Contact Material | :- | Housing Material | Die Cast |
| Primary Material | DIN | Termination Style | Solder |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 12 |
| Contact Termination | :Solder | Dielectric Material | Thermoplastic |
| Number of Positions | 12 | Shell Size - Insert | DIN |
| Shell Material, Finish | Die Cast, Nickel Plated | 1st Connector Mounting Type | :Panel |
Product Info
| Type | Panel Socket | Gender | :Socket |
| Series | :C 091 A | Features | Shielded |
| Manufacturer | C091-A Series | Product Type | Connectors |
| RF Family/Standard | C091A | ||
Environmental
| Seal Rating | IP 40 | Ingress Protection | IP40 |
| Operating Temperature | -40°C ~ 100°C | ||
Documents & Media
PDF Document
PDF Document
PDF Document
Online Document
Similar Parts

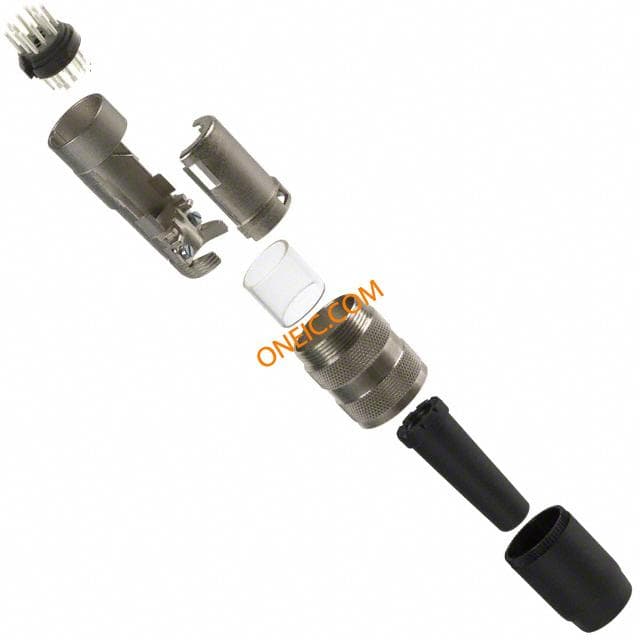

T 3635 001
