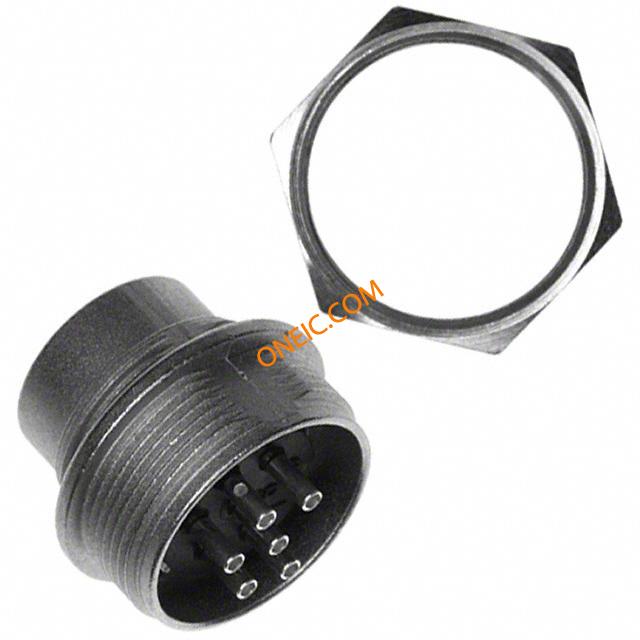

点击放大查看

T 3402 009

Manufacturer	Amphenol Corporation
Description	Circular DIN Connectors 6 Pin male; Front Pnl Mnt CONN MALE RCPT 6POS FRONT PNL MT connector, circular din, male panel recept, front mt, 6din silver-pltd solder cont
Category	Connector SolutionsCircular ConnectorsMilitary Circular Connectors

对参数有疑问？问 AI 助手

Business

Part # Aliases	009 3402 34B9001 T U	Product Category	Circular DIN Connectors
Standard Package	50	Factory Pack Quantity	50

Compliance

RoHS	RoHS Compliant	Approval Agency Marking	UL Recognized/IEC
Material Flammability Rating	UL94-V0

Electrical

Voltage Rating	300V	Voltage - Supply	DIN
Current Rating (Max)	5A

Mechanical

Packaging	Bulk	Cable Exit	Internal
Wire Gauge	20-26	Orientation	Keyed
Termination	Solder Cup	Contact Type	Pin
Mounting Type	Panel Mount, Bulkhead - Rear Side Nut	Shell Plating	Nickel
Angle of Throw	Straight	Connector Type	Receptacle, Male Pins
Contact Finish	Silver	Fastening Type	Threaded
Housing Finish	Nickel	Package / Case	Metal
Connector Usage	Threaded	Housing Material	Die Cast
Primary Material	DIN	Termination Style	Solder
1st Contact Gender	Pin (Male)	Number of Contacts	6
Dielectric Material	Thermoplastic	Number of Positions	6
Shell Size - Insert	DIN (240 Degree)	Shell Material, Finish	Die Cast, Nickel Plated

Product Info

Type	Panel Socket	Gender	Male
Features	Shielded	Manufacturer	C091-A Series
Product Type	Connectors	RF Family/Standard	C091A

Environmental

Seal Rating	IP 40	Ingress Protection	IP40
Operating Temperature	-40°C ~ 100°C

Documents & Media

PDF Document

C091A,B Series Design 19/Jan/2009

PDF Document

C091 A,B,D Series Catalog

PDF Document

40_c091_abd_e.pdf

PDF Document

40_c091_abd_e-75918.pdf
