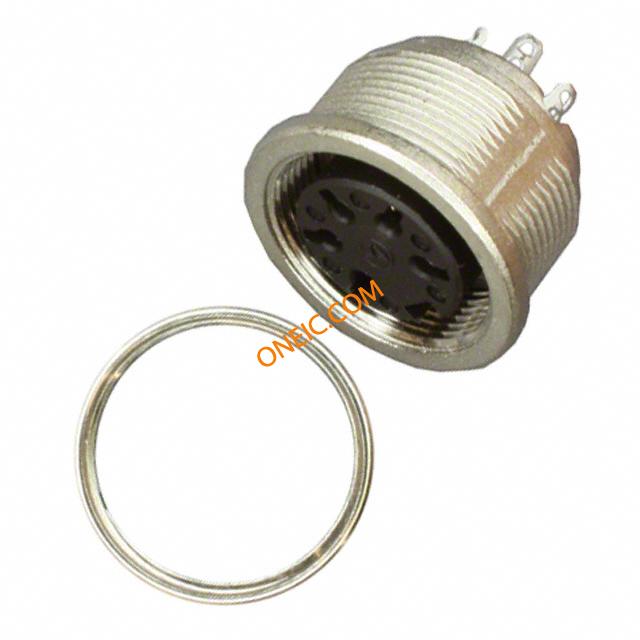

T 3363 018

Manufacturer	Amphenol Corporation
Description	Circular DIN Connectors 5 Pin female;Gold Front Mount CONN FMALE RCPT 5PS FRONT MT AU connector, circular din, female panel recept, front mt, 5 gold-pltd solder contact
Category	Connector SolutionsCircular ConnectorsMilitary Circular Connectors

对参数有疑问？问 AI 助手

Business

Part # Aliases	018 3363 T U	Product Category	Circular DIN Connectors
Standard Package	50	Factory Pack Quantity	50

Compliance

RoHS	RoHS Compliant	Approval Agency Marking	UL Recognized/IEC
Material Flammability Rating	UL94-V0

Electrical

Voltage Rating	300V	Voltage - Supply	DIN
Current Rating (Max)	5A

Mechanical

Packaging	Bulk	Cable Exit	Internal
Wire Gauge	20 AWG	Orientation	Keyed
Shell Style	Receptacle	Termination	Solder Cup
Contact Type	Socket	Mounting Type	Panel Mount
Shell Plating	Nickel	Angle of Throw	Straight
Connector Type	Receptacle, Female Sockets	Contact Finish	Gold
Fastening Type	Threaded	Housing Finish	Nickel
Package / Case	Metal	Connector Usage	Threaded
Housing Material	Die Cast	Primary Material	DIN
Termination Style	Solder	1st Contact Gender	Socket (Female)
Number of Contacts	5	Dielectric Material	Thermoplastic
Number of Positions	5	Shell Size - Insert	DIN (240 Degree)
Shell Material, Finish	Die Cast, Nickel Plated

Product Info

Type	Panel Socket	Gender	Female
Features	Shielded	Manufacturer	C091-A Series
Product Type	Connectors	RF Family/Standard	C091A

Environmental

Seal Rating	IP 40	Ingress Protection	IP40
Operating Temperature	-40°C ~ 100°C

Documents & Media

PDF Document

C091A,B Series Design 19/Jan/2009

PDF Document

C091 A,B,D Series Catalog

Online Document

502.html
