C146 10A064 000 2
| Manufacturer | |
| Description | Heavy Duty Power Connectors 64P+G Male Insert Crimp Heavy Mate Conn Heavy-Duty Rectangular M 64Signal/1Ground POS Crimp ST Panel Mount PIN INSERT 64POS INSERT, MALE, CRIMP, 250V, 64+PE connector comp, c146d insert, contacts not included, for 64+ground stamped pin cont 64P MALE CONN STAMPEDCONTACS |
| Category |
Business
| Tradename | Heavymate D | Other Names | C14610A0640002 |
| Part # Aliases | 34B7853 | Product Category | Heavy Duty Power Connectors |
| Standard Package | 10 | Factory Pack Quantity | 36 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Standards | UL Recognized, CSA Certified, SEV Approved |
| Tariff No | 85369010 | Approval Agency Marking | CSA, UL |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Voltage Rating | 600V | Number of Poles | 64 |
| Current Rating (Max) | 15A | Voltage - Input (Min) | 250VAC |
Mechanical
| Size | E24 | Color | Gray |
| Depth | 34 | Height | 34 |
| Weight | 0.075 | Packaging | Bulk |
| Termination | Crimp | Weight (g): | 69.31600 |
| Contact Type | C 16-3; heavy|mate®, C146 D, M | Mounting Type | Straight |
| Angle of Throw | Straight | Cable Diameter | 4.1 mm |
| Connector Type | Insert without Contacts | Contact Finish | Silver |
| Number of Rows | 4 | Insert Material | :Signal |
| Insertion Force | Male | Contact Material | Brass |
| Housing Material | Thermoplastic | Length - Overall | 110 mm |
| Primary Material | Industrial | Termination Style | Crimp |
| 1st Contact Gender | M | Number of Contacts | 64Signal/1Ground |
| Contact Termination | :Crimp | Dielectric Material | PC GV |
| Number of Positions | 64+Ground | Shell Size - Insert | :E24 |
| Contact Mating Finish | Silver | Contact Layout, Typical | 64+Gnd |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | Heavy-Duty Rectangular | Gender | Male |
| Series | :Heavy Mate | Features | Contacts Not Included |
| Manufacturer | C146D Series | Product Type | Inserts |
| Other Specifications | Crimp | For Use With/Related Products | :C146 Rectangular Connectors |
Environmental
| Seal Rating | IP20 | Operating Temperature | -40°C ~ 125°C |
Documents & Media
Similar Parts
VN01 016 0004 1
Amphenol Tuchel
Heavy Duty Power Connectors Crimp male 1.6mm AWG 16-20 100/pk CONTACT PIN CRIMP 16-20AWG SILVR C 16-1 Series Male Circular Connector Contact, Crimp,Wire size 20 to 16AWG CIRCULAR CONTACT, PIN, 20-16AWG, CRIMP CRIMP PIN, 0.5-1.5 connector comp, stamped pin contact, silver plated, for 0.50-1.50mm2(20-16awg)wire Crimp contact Stamped, Female, VN01 016 0004 1, Amphenol Amphenol Eco-Mate 系列 公 压接端接 圆形 连接器 触芯, 使用于Ecomate 系列圆形连接器, 20 → 16 AWG 线规格
VN01 016 0015 1
Amphenol Tuchel
ヘビーデューティパワーコネクタ STAMPED MALE CONTACT 20-16 AWG HI CURRENT PIN CONTACT 100 PCS connector comp;stamped pin contact;silver plated;for 0.50-1.50mm2(20-16awg)wire Heavy Duty Power Connectors STAMPED MALE CONTACT 20-16 AWG HI CURRENT connector comp, stamped pin contact, silver plated, for 0.50-1.50mm2(20-16awg)wire

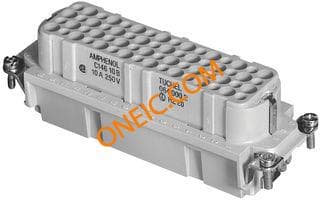

C146 10B064 000 2
