点击放大查看

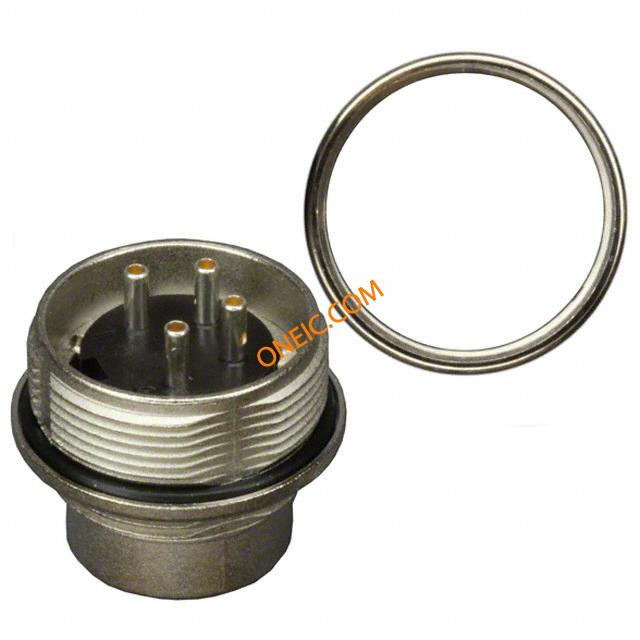

C091 31W004 100 2
| Manufacturer | |
| Description | Circular DIN Connectors Male recpt 4 Pin; Front MT CONN MALE RCPT 4POS FRONT MT connector, circular din, male panel recept, front mt, 4iec silver plt pin cont, ip67 Connector: circular; Series: C091D; male; socket; silver plated |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 100 2 31W004 34B7646 C091 U | Product Category | Circular DIN Connectors |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | Approval Agency Marking | UL Recognized |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage Rating | 300 V | Voltage - Supply | DIN |
| Current Rating (Max) | 5 A | ||
Mechanical
| Weight | 0.01 kg | Packaging | Bulk |
| Cable Exit | Internal | Wire Gauge | 20-26 |
| Orientation | Keyed | Termination | Solder |
| Contact Type | Pin | Body Material | metal |
| Mounting Type | Panel Mount | Shell Plating | Nickel |
| Angle of Throw | Straight | Connector Type | Receptacle, Male Pins |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Nickel | Mounting Style | Flange |
| Package / Case | Metal | Plating - Body | nickel |
| Connector Usage | Threaded | Locking Feature | threaded joint, external thread |
| Panel Thickness | max 3.5mm | Housing Material | Die Cast |
| Primary Material | DIN | Connector - Cable | socket |
| Termination Style | Solder | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 4 | Dielectric Material | Thermoplastic |
| Number of Positions | 4 | Shell Size - Insert | DIN (210 Degree) |
| Shell Material, Finish | Die Cast, Nickel Plated | Wire Gauge or Range - mm2 | 0.5mm2 |
| Contact Material - Plating | silver plated | 1st Connector Mounting Feature | DIN EN 60130-9 |
Product Info
| Type | Panel Socket | Series | C 091 D |
| Features | Shielded | Main Purpose | Shielded |
| Manufacturer | C091-D Series | Product Type | Connectors |
| Adapter Series | C091D | Number of Units | 1 |
| RF Family/Standard | C091D | Output Configuration | Panel Mount |
Environmental
| Seal Rating | IP 67 | Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | -40°C ~ 100°C | ||
Documents & Media
PDF Document
PDF Document
