C016 20D003 210 12
| Manufacturer | |
| Description | Circular DIN Connectors 3+PE FEM STRT BLK SCW GLD INT ST RELF CONN FEMALE PLUG 3+PE GOLD BLACK connector;plastic circ;str fem cable conn;3+gnd gold plt cont;screw term;black connector, plastic circ, str fem cable conn, 3+gnd gold plt cont, screw term, black |
| Category |
Business
| Part # Aliases | 81K1470 | Product Category | Circular DIN Connectors |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Compliant | Approval Agency Marking | UL Recognized/CSA/VDE |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage Rating | 400V | Voltage - Supply | DIN |
| Current Rating (Max) | 16A | ||
Mechanical
| Color | Black | Packaging | Bulk |
| Cable Exit | Internal | Wire Gauge | 20-14 |
| Orientation | Keyed | Shell Style | Receptacle |
| Termination | Screw | Weight (g): | 44.40000 |
| Contact Type | Socket | Mounting Type | Free Hanging (In-Line) |
| Angle of Throw | Straight | Cable Diameter | 6-12.5 mm |
| Connector Type | Plug, Female Sockets | Contact Finish | Gold |
| Fastening Type | Threaded | Mounting Style | Free Hanging |
| Package / Case | Plastic | Connector Usage | Threaded |
| Housing Material | Polyamide | Primary Material | DIN |
| Termination Style | Screw | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 3 | Dielectric Material | Polyamide |
| Number of Positions | 4 | Shell Material, Finish | Polyamide |
| Contact Layout, Typical | 3 + 1 Ground (PE) | ||
Product Info
| Type | Cable Socket | Features | Cable Clamp, Strain Relief |
| Manufacturer | C016 Series | Product Type | Connectors |
| Application Specifics | Commercial | ||
Environmental
| Seal Rating | IP 67 | Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | -40°C ~ 100°C | ||
Documents & Media
Similar Parts
C016 00V000 010 12
Amphenol Tuchel
Circular DIN Connectors PROTECTIVE COVER FOR FEM CABLE CONNECTOR COVER FOR CABLE BOX C16-M CONN CAP FOR FEMALE PLUG EcoMateCap for Female Cable Conn Connector Accessories Protection Cover For Female Cable Connector DUST CAP, FOR FEMALE CABLE CONNECTOR connector accessory, protection cover(cap) for eco-mate female cable conn, black Sealing cap for cable socket, C016 00V000 010 12, Amphenol Amphenol Eco-Mate 系列 插头 IP65 防尘盖

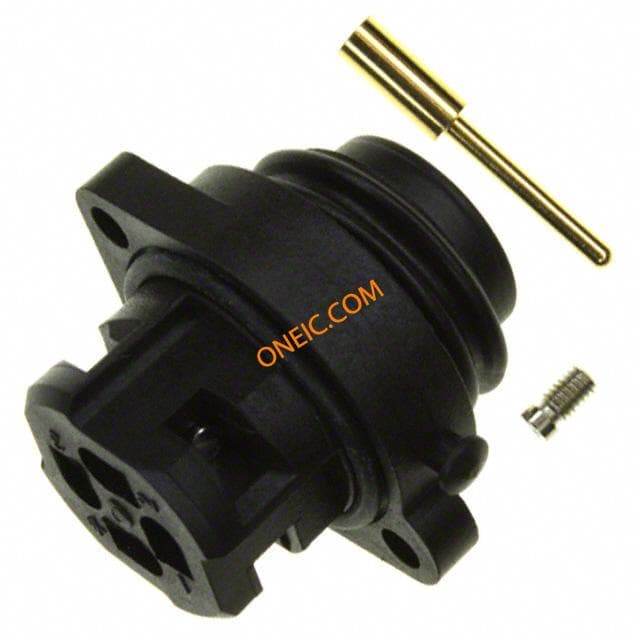

C016 20C003 200 12
