C016 20D003 200 12
| Manufacturer | |
| Description | Circular DIN Connectors 3+PE FEM STRT BLK SCREW GLD CONTACT CONN FEMALE PLUG 3+PE GOLD BLACK connector;plastic circ;str fem cable conn;3+gnd gold plt cont;screw term;black CIRCULAR CONNECTOR RECEPTACLE 3POS CABLE connector, plastic circ, str fem cable conn, 3+gnd gold plt cont, screw term, black |
| Category |
Business
| Part # Aliases | 81K1468 | Product Category | Circular DIN Connectors |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Approval Agency Marking | UL Recognized/CSA/VDE | Material Flammability Rating | UL94-V0 |
Electrical
| Voltage Rating | 400 V | Voltage - Supply | DIN |
| Current Rating (Max) | 16 A | ||
Mechanical
| Color | Black | Weight | 0.041 |
| Packaging | Bulk | Wire Gauge | 20-14 |
| Orientation | Keyed | Shell Style | Receptacle |
| Termination | Screw | Contact Type | Socket |
| Mounting Type | Free Hanging (In-Line) | Angle of Throw | Straight |
| Cable Diameter | 6 mm to 10 mm | Connector Type | Plug, Female Sockets |
| Contact Finish | Gold | Fastening Type | Threaded |
| Mounting Style | Free Hanging | Package / Case | Plastic |
| Connector Usage | Threaded | Insertion Angle | :- |
| Material - Body | :Nylon (Polyamide) | Housing Material | Polyamide |
| Primary Material | DIN | Termination Style | Screw |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 3 |
| Dielectric Material | Polyamide | Number of Positions | 4 |
| Shell Material, Finish | Polyamide | Contact Layout, Typical | 3 + 1 Ground (PE) |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | Cable Socket | Gender | :Receptacle |
| Series | eco mate | Features | Cable Clamp |
| Manufacturer | C016 Series | Product Type | Connectors |
| Application Specifics | Commercial | ||
Environmental
| Seal Rating | IP 67 | Ingress Protection | IP 67, IP 65 |
| Operating Temperature | -40°C ~ 100°C | ||
Documents & Media
Similar Parts
C016 00V000 010 12
Amphenol Tuchel
Circular DIN Connectors PROTECTIVE COVER FOR FEM CABLE CONNECTOR COVER FOR CABLE BOX C16-M CONN CAP FOR FEMALE PLUG EcoMateCap for Female Cable Conn Connector Accessories Protection Cover For Female Cable Connector DUST CAP, FOR FEMALE CABLE CONNECTOR connector accessory, protection cover(cap) for eco-mate female cable conn, black Sealing cap for cable socket, C016 00V000 010 12, Amphenol Amphenol Eco-Mate 系列 插头 IP65 防尘盖

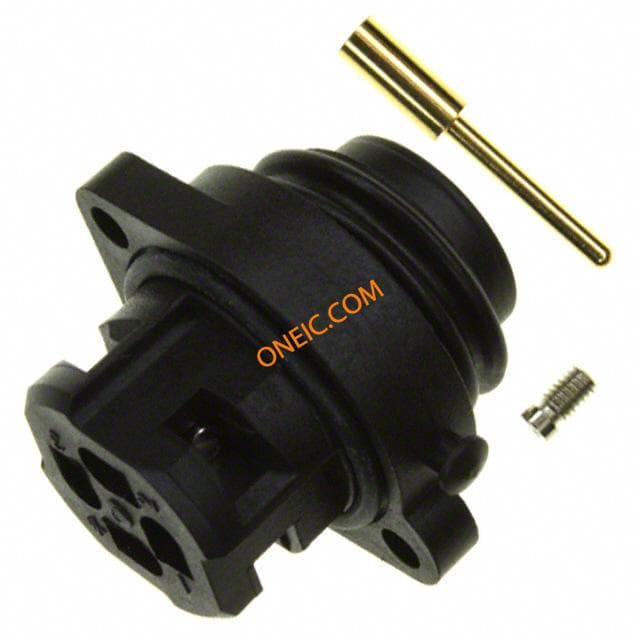

C016 20C003 200 12
