C016 20D003 110 10
| Manufacturer | |
| Description | Circular DIN Connectors 3+PE FEM STRT BLUE SCW SILV INT ST RELF 03P+PE FEMALE CABLE C16-M CONN FEMALE PLUG 3+PE SILVR BLUE SOCKET, FREE, SCREW, 3P+E WAY connector, plastic circ, str fem cable conn, 3+gnd silver plt cont, screw term, blue Connector: circular; plug; with cable clamp; female; PIN:4; 400V Cable socket 3+PE, C016 20D003 110 10, Amphenol |
| Category |
Business
| MOQ | 500 | Unit Pack | 50 |
| Product Category | Circular DIN Connectors | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | Automotive | NO |
| Leadfree Defin | RoHS-conform | Approval Agency | VDE,UL,CSA |
| Protection Features | 67 | Approval Agency Marking | UL Recognized/CSA/VDE |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage Rating | 400V | Voltage - Supply | DIN |
| Contact Resistance | :5mohm | Voltage - Breakdown | :6000V |
| Current Rating (Max) | 16A | Insulation Resistance | :10Mohm |
| Connector - Voltage Input | with cable clamp | ||
Mechanical
| Color | Blue | Weight | 0.041 |
| Packaging | Bulk | Cable Exit | Internal |
| Wire Gauge | :14AWG | Orientation | Keyed |
| Shell Style | Receptacle | Termination | Screw |
| Weight (g): | 44.00000 | Contact Type | Socket |
| Mounting Type | Free Hanging (In-Line) | Release Force | :30N |
| Angle of Throw | Straight | Cable Diameter | 6 mm to 12.5 mm |
| Connector Type | Plug, Female Sockets | Contact Finish | Silver |
| Fastening Type | Threaded | Mounting Style | Free Hanging |
| Package / Case | :Straight | Connector Usage | Threaded |
| Insertion Angle | :- | Insertion Force | :15N |
| Locking Feature | threaded joint, internal thread | Material - Body | :Nylon (Polyamide) |
| Contact Material | :- | Housing Material | Polyamide |
| Package Quantity | 50 | Primary Material | DIN |
| Connector - Cable | plug | Termination Style | FEMALE |
| 1st Contact Gender | Socket (Female) | Color - Connectors | :Blue / Black |
| Number of Contacts | 03+PE | Contact Termination | :Screw |
| Dielectric Material | Polyamide | Number of Positions | 4 |
| Shell Size - Insert | :- | Shell Material, Finish | Polyamide |
| Contact Layout, Typical | 3 + 1 Ground (PE) | Exterior Housing Material | :Polyamide 6.6/PA6 |
| Wire Gauge or Range - mm2 | :2.5mm² | Contact Material - Plating | -40 TO 100 |
| 1st Connector Mounting Type | :Cable | 1st Connector Mounting Feature | 3+PE |
| Diameter - Outside, Non-Expanded | :12.5mm | ||
Product Info
| Spg | 50 | Type | Cable Socket |
| Gender | :Socket | Series | ECOMATE |
| Features | Cable Clamp, Strain Relief | Matchcode | C01620D00311010 |
| Manufacturer | C016 Series | Product Type | Connectors |
| Adapter Series | ECOMATE (C016) | Number of Units | 1 |
| Standard Leadtime | 12 weeks | RF Family/Standard | C016 |
| Application Specifics | Commercial | ||
Environmental
| Seal Rating | IP 67 | Mating Cycles | :500 |
| NEMA Frame Size | :IP67 | Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | SCREW°C | ||
Documents & Media
Similar Parts
C016 00V000 010 12
Amphenol Tuchel
Circular DIN Connectors PROTECTIVE COVER FOR FEM CABLE CONNECTOR COVER FOR CABLE BOX C16-M CONN CAP FOR FEMALE PLUG EcoMateCap for Female Cable Conn Connector Accessories Protection Cover For Female Cable Connector DUST CAP, FOR FEMALE CABLE CONNECTOR connector accessory, protection cover(cap) for eco-mate female cable conn, black Sealing cap for cable socket, C016 00V000 010 12, Amphenol Amphenol Eco-Mate 系列 插头 IP65 防尘盖

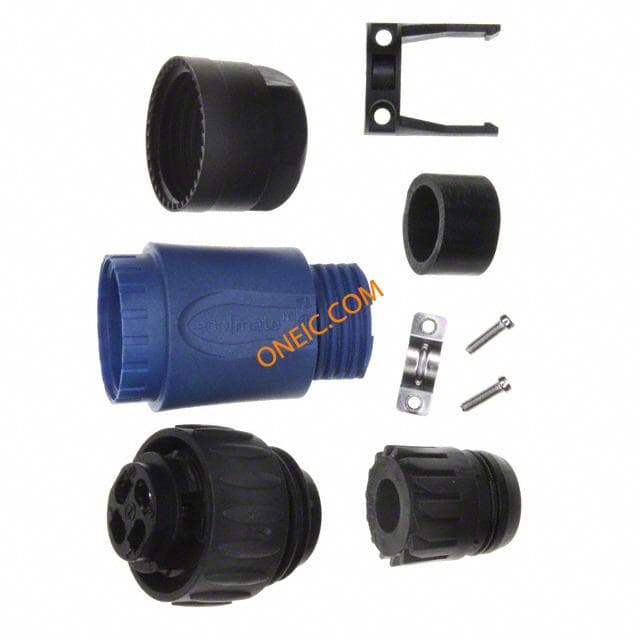

C016 20H003 110 10
