044 104 10005 02
| Manufacturer | |
| Description | Standard Circular Connector 5P RECEPTACLE CONN RECEPT 5POS MINI PUSH-ON connector;plastic circ;str recept housing;for 5 crimp pin cont;sealed;ip65/ip67 CIRCULAR CONNECTOR RECEPTACLE 5POS CABLE connector, plastic circ, str recept housing, for 5 crimp pin cont, sealed, ip65/ip67 |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 500 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 250 V | Current Rating (Max) | 8 A |
Mechanical
| Color | Black | Weight | 0.009 |
| Packaging | Bulk | Wire Gauge | 18-14 |
| Orientation | Keyed | Shell Style | Receptacle |
| Termination | Crimp | Contact Type | Crimp |
| Mounting Type | Free Hanging (In-Line) | Angle of Throw | Straight |
| Connector Type | Receptacle for Male Contacts | Contact Finish | Silver |
| Fastening Type | Push-Pull | Mounting Style | Free Hanging |
| Package / Case | Plastic | Insertion Angle | :- |
| Material - Body | :Thermoplastic | Housing Material | Thermoplastic Rubber |
| Primary Material | Sealed | Termination Style | Crimp |
| 1st Contact Gender | :Socket | Number of Contacts | 5 |
| Dielectric Material | Santoprene | Insulation Diameter | 0.08 to 013 " |
| Number of Positions | 5 | Shell Material, Finish | Plastic |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Note | Contacts Not Provided | Type | Cable Socket |
| Gender | :Receptacle | Series | 44 |
| Manufacturer | 44 Series | Product Type | Connectors |
| Application Specifics | Commercial | ||
Environmental
| Seal Rating | IP 67 | Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
Documents & Media
Similar Parts
044 100 1414P 1000 101
amphenol
Contact PIN Crimp ST Cable Mount Bag Standard Circular Contacts BAG OF 1000 PIN CNTS Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 14-18 AWG TIN connector comp;044-series;poke-home crimp pin contact;for 14;16;18awg wire connector comp, 044-series, poke-home crimp pin contact, for 14, 16, 18awg wire
356-258
amphenol canada, corp.
ASSEMBLY TOOLS, INSERTION AND REMOVAL TOOLS Hand Tools 44SERIES INSERT TOOL *NCNR Insertion-tool TOOL INSERTION 44 SERIES INSERTION TOOL, FOR SERIES 44 tool, insertion tool for contacts for the 044-series

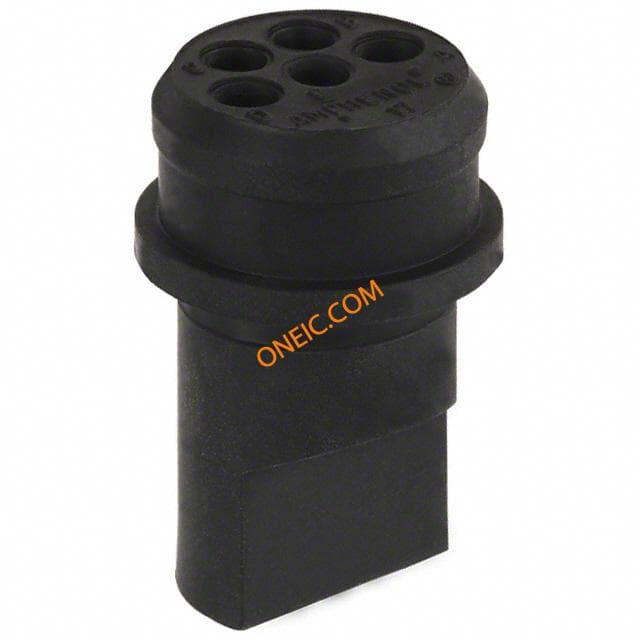

044 103 10005
