MB1LLN0800
| Manufacturer | |
| Description | Conn Circular PIN 8 POS ST Panel Mount 8 Terminal 1 Port CONN RCPT 8POS MALE STR LONG 8 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Circular Metric Connectors M23 B-Series Strt Recpt 8 Position RECEPT, PANEL, M23-B, 8WAY, PIN Conn; Circ; Receptacle; Male; 8 Pos; Crimp; Long Straight; M23; A Ser. Amphenol 8路 面板安装 直向 连接器 插座 , 公触点 |
| Category |
Business
| Other Names | 889-1092 | Part # Aliases | 14R7029 |
| Product Category | Circular Metric Connectors | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | Rad Hardened | No |
Electrical
| Voltage - Test | 6000V | Voltage Rating | 630 V ac/dc |
| Current Rating (Max) | 30A | Current - Short Circuit (Isc) | 30A |
Mechanical
| Depth | 25.7 mm | Height | 25.7 mm |
| Weight | 0.0399 | Material | Zinc Die-Cast |
| Packaging | Bulk | Cable Exit | No |
| Orientation | Keyed | Shell Style | Receptacle |
| Contact Form | 8Signal | Contact Size | 1.0mm, 2.0mm |
| Contact Type | 8Signal | Mounting Type | Panel Mount |
| Connector Type | Receptacle for Male Contacts | Contact Finish | Gold |
| Fastening Type | Threaded | Mounting Style | Cable |
| Insertion Angle | :- | Material - Body | :Zinc |
| Contact Material | Brass | Length - Overall | 35.3 mm |
| Termination Style | Crimp | 1st Contact Gender | PIN |
| Number of Contacts | 8 | Number of Positions | 8 |
| Shell Size - Insert | :- | Shell Material, Finish | Zinc Die Cast |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Note | Contacts Not Provided | Type | Circular |
| Gender | RCP | Series | M23 |
| Features | Shielded | Manufacturer | B Series |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | +130°C |
Documents & Media
Similar Parts
SC000035
amphenol-sine systems
Contact PIN Crimp ST Cable Mount CONTACT PIN CRIMP 18AWG AU 1.0MM M23 A Series Male Circular Connector Contact, Crimp Circular Metric Connectors Pin Contact Rock Solid 1.0mm CRIMP PIN, MACHINED, 1MM Contact; Pin; Crimp; 1.0 mm Dia.; M23; A, B Ser. Pin contact, machined Size 1 mm, SC000035, Amphenol Amphenol M23 A 系列 公 压接端接 圆形 连接器 触芯, 使用于M23 连接器

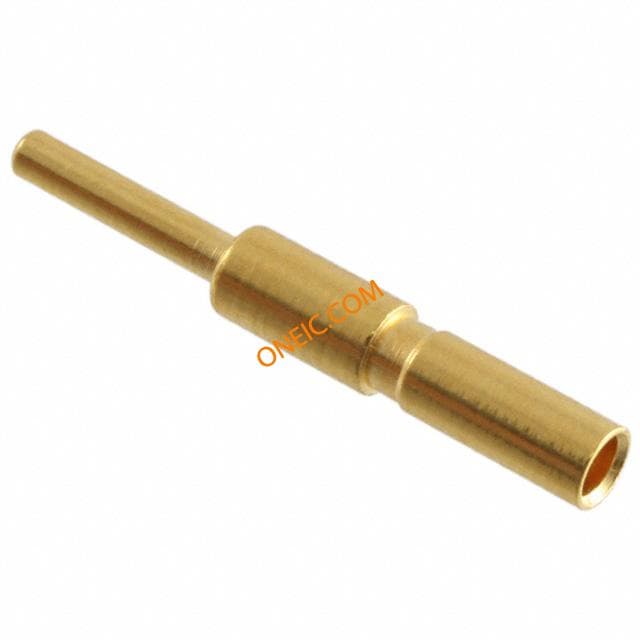

SC000036
amphenol-sine systems
Contact PIN Crimp ST Cable Mount CONTACT PIN CRIMP 14AWG AU 2.0MM M23 B Series Male Circular Connector Contact, Crimp Circular Metric Connectors Pin Contact Machined RockSolid 2.0mm CRIMP PIN, MACHINED, 2MM Contact; Pin; Crimp; 2.0 mm Dia.; M23; B Ser. Socket contact, Size 2 mm, SC000036, Amphenol Amphenol M23 B 系列 公 压接端接 圆形 连接器 触芯, 使用于M23 连接器
MB1CKN0800
amphenol-sine systems
Conn Circular PIN 8 POS ST Cable Mount 8 Terminal 1 Port CONN PLUG 8POS FEMALE STR SHORT 8 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Circular Metric Connectors M23 B-Series St Plug 8 Position PLUG, M23-B, 8WAY, SKT Conn; Circ; Plug; Female; 8 Pos; HC Crimp; Short Housing; M23; B Ser. Amphenol 8路 电缆安装 直向 连接器 插头 , 公触点
MB1EJN0800
amphenol-sine systems
Conn Circular PIN/SKT 8 POS RA Cable Mount 8 Terminal 1 Port CONN PLUG 8POS FEMALE R/A 8 Pole Male Right Angle Cable Mount Industrial & Automation Circular Connector with Male to Female Contacts Circular Metric Connectors M23 B-Series Plug 8 Pos R/A Rotatable PLUG, R/A, M23-B, 8WAY, SKT Plug, female, 8way, HC Crimp, Angle Amphenol 8路 电缆安装 直角 连接器 插头 , 公-母触点

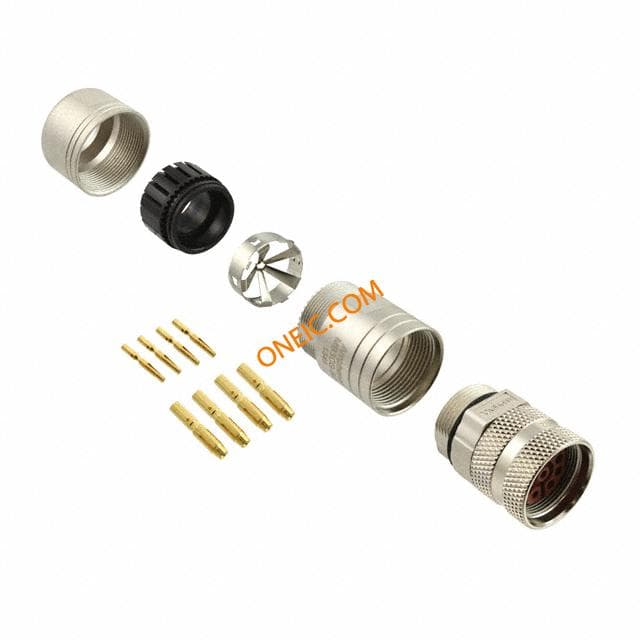

MB1CKN0800-KIT
