点击放大查看
MB1CKN0900
| Manufacturer | |
| Description | Conn Circular PIN 9 POS ST Cable Mount 9 Terminal 1 Port CONN PLUG 9POS FEMALE STR SHORT 9 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Circular Metric Connectors M23 B-Series St Plug 9 Position PLUG, M23-B, 9WAY, SKT Conn; Circ; Plug; Female; 9 Pos; HC Crimp; Short Housing; M23; B Ser. Amphenol 9路 电缆安装 直向 连接器 插头 , 公触点 |
| Category |
Business
| Other Names | 889-1087 | Part # Aliases | 14R7021 |
| Product Category | Circular Metric Connectors | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | ||
Electrical
| Voltage - Test | 6000V | Voltage Rating | 630 V ac/dc |
| Current Rating (Max) | 30A | Current - Short Circuit (Isc) | 30A |
Mechanical
| Weight | 0.0503 | Diameter | 27 |
| Material | Zinc Die-Cast | Packaging | Bulk |
| Cable Exit | No | Orientation | Keyed |
| Shell Style | Plug | Contact Size | 1.0mm, 2.0mm |
| Contact Type | 9Signal | Mounting Type | Cable Mount |
| Connector Type | Plug for Female Contacts | Contact Finish | Gold |
| Fastening Type | Threaded | Mounting Style | Cable |
| Insertion Angle | :- | Material - Body | :Zinc |
| Contact Material | Brass | Termination Style | Crimp |
| 1st Contact Gender | PIN | Number of Contacts | 9 |
| Number of Positions | 9 | Shell Size - Insert | :- |
| Shell Material, Finish | Zinc Die Cast | 1st Connector Mounting Type | :Cable |
Product Info
| Note | Contacts Not Provided | Type | Circular |
| Gender | PL | Series | M23 |
| Features | Shielded | Manufacturer | B Series |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | +130°C |
Documents & Media
Similar Parts
MB1JJN0900
amphenol-sine systems
Conn Circular PIN 9 POS ST Cable Mount 9 Terminal 1 Port CONN RCPT 9POS MALE STR 9 Pole Female Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Circular Metric Connectors M23 B-Series Strt Extension 9 Pos. EXTENSION PLUG, M23-B, 9WAY, PIN Conn; Circ; Plug; Male; Extension; 8 Pos; Crimp; M23; B Ser. Amphenol 9路 电缆安装 直向 连接器 插座 , 公触点
MB1RJN0900
amphenol-sine systems
Conn Circular PIN 9 POS RA Panel Mount 9 Terminal 1 Port Circular Metric Connectors M23 B-Series Recpt 9 Pos R/A Rotatable CONN RCPT 9POS MALE R/A 9 Pole Female Right Angle Panel Mount Industrial & Automation Circular Connector with Male Contacts QRATE Amphenol 9路 面板安装 直角 连接器 插座 , 公触点
MB3CG-S1
amphenol-sine systems
Connector Accessories Cord Grip Zinc Die Cast CORD GRIP 7.5-10.5MM DIAM Cord Grip, Cable Range 7.5 ~ 11mm Circular Metric Connectors M23 B Cord Grip IP67 Cable 7.5-10.5mm CORD GRIP, M23-B, DIA. 7.5-11.0MM Cord Grip; Cable Dia. 7.5-11 mm; M23; BSer. Amphenol MotionGrade 系列 IP67 灰色 电缆固定头 , 7.5mm 至 11mm电缆直径, -20°C至+130°C, M23螺纹
MB3CG-S2
amphenol-sine systems
Connector Accessories Cord Grip Zinc Die Cast CORD GRIP 10.5-15MM DIAM Cord Grip, Cable Range 11 ~ 14.5mm Circular Metric Connectors M23 B Cord Grip IP67 Cable 10.5-15mm CORD GRIP, M23-B, DIA. 11.0-14.5MM Cord Grip; Cable Dia. 11-14.5 mm; M23; B. Ser. Amphenol MotionGrade 系列 IP67 灰色 电缆固定头 , 11mm 至 15mm电缆直径, -20°C至+130°C, M23螺纹

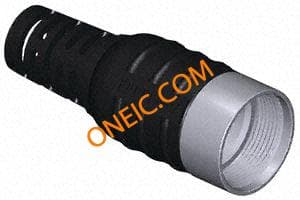

MB4FSR-B14.5
amphenol-sine systems
Connector Accessories Flex Grip Zinc Die Cast BOOT STRAIN RELIEF 14.5MM DIAM Flexible Strain Relief, Exit Dia. ~14mm Circular Metric Connectors M23 B Flexgrip Exit Dia. 14.5mm QRATE Amphenol 电缆固定头 , -20°C至+130°C, M23螺纹
MB4FSR-B17
amphenol-sine systems
Connector Accessories Flex Grip Zinc Die Cast BOOT STRAIN RELIEF 17MM DIAM Flexible Strain Relief, Exit Dia. ~17mm Circular Metric Connectors M23 B Flexgrip Exit Dia. 17mm QRATE Amphenol 电缆固定头 , -20°C至+130°C, M23螺纹
SC000014
amphenol-sine systems
Contact SKT Crimp ST Cable Mount CONTACT SKT CRIMP 14AWG AU 2.0MM M23 B Series Female Circular Connector Contact, Crimp Circular Metric Connectors RockSolid 2.0mm Socket Contact CRIMP SOCKET, ROCKSOLID, 2MM Contact; Socket; RockSolid; Crimp; 2.0 mm Dia.; M23; B Ser. Socket contact, machined, Size 2 mm, RockSolid PU=500 ST, SC000014, Amphenol Amphenol M23 B 系列 母 压接端接 圆形 连接器 触芯, 使用于M23 连接器

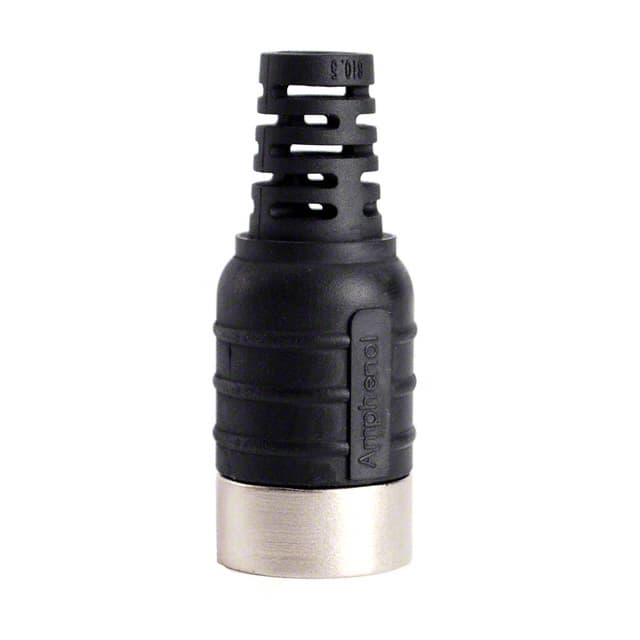

MB4FSR-B10.3
amphenol-sine systems
Connector Accessories Flex Grip Zinc Die Cast BOOT STRAIN RELIEF 10.3MM DIAM Flexible Strain Relief,Exit Dia.~10.3mm Circular Metric Connectors M23 B Flexgrip Exit Dia. 10.3mm Amphenol 电缆固定头 , -20°C至+130°C, M23螺纹
MB3CG-S3
amphenol-sine systems
Connector Accessories Cord Grip Zinc Die Cast CORD GRIP 15-17MM DIAM Cord Grip, Cable Range 14.5 ~ 17mm Circular Metric Connectors M23 B Cord Grip IP67 Cable 15-17mm CORD GRIP, M23-B, DIA. 14.5-17.0MM Cord Grip; Cable Dia. 14.5-17 mm; M23; B Ser. Amphenol 电缆固定头 , -20°C至+130°C, M23螺纹
SC000013
amphenol-sine systems
Contact SKT Crimp ST Cable Mount CONTACT SKT CRIMP 18AWG AU 1.0MM M23 A Series Female Circular Connector Contact, Crimp Circular Metric Connectors Socket Contact Rock Solid 1.0mm CRIMP SOCKET, ROCKSOLID, 1MM Contact; Socket; Crimp; 1.0 mm Dia.; RockSolid; M23; A, B Ser. Socket contact, machined Size 1 mm, RockSolid, SC000013, Amphenol Amphenol M23 A 系列 母 压接端接 圆形 连接器 触芯, 使用于M23 连接器
SC000044
amphenol-sine systems
Contact SKT Crimp ST Cable Mount CONTACT SKT CRIMP 18AWG AU 1.0MM M23 A Series Female Circular Connector Contact, Crimp Circular Metric Connectors Skt Contact 1.0mm RockSolid Machined CRIMP SOCKET, SLIT MACHINED, 1MM Contact; Socket; Split Machined, ; Crimp; 1.0 mm Dia.; M23; A, B Ser. Socket contact, machined Size 1 mm, SC000044, Amphenol Amphenol M23 A 系列 母 压接端接 圆形 连接器 触芯, 使用于M23 连接器

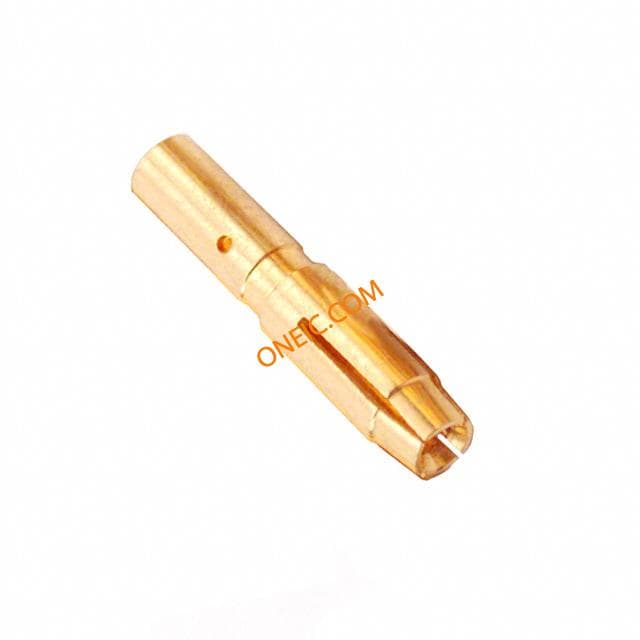

SC000045
amphenol-sine systems
Contact SKT Crimp ST Cable Mount CONTACT SKT CRIMP 14AWG AU 2.0MM M23 B Series Female Circular Connector Contact, Crimp Circular Metric Connectors Socket Contact Slit Machined 2.0mm CRIMP SOCKET, SLIT MACHINED, 2MM Contact; Socket; Split Machined; Crimp; 2.0 mm Dia.; M23; B Ser. Socket contact, machined, Size 2 mm, SC000045, Amphenol Amphenol M23 B 系列 母 压接端接 圆形 连接器 触芯, 使用于M23 连接器

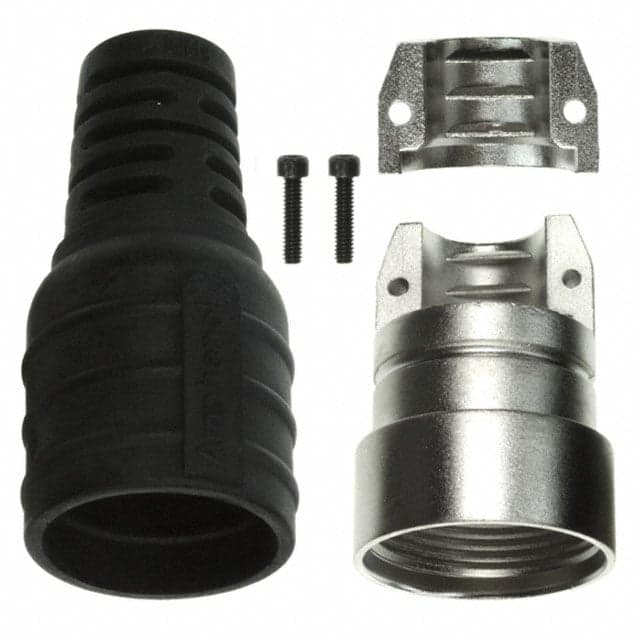

MB4FSR-B12.5
amphenol-sine systems
Connector Accessories Flex Grip Zinc Die Cast BOOT STRAIN RELIEF 12.5MM DIAM Flexible Strain Relief, Exit Dia. ~12mm Circular Metric Connectors M23 B Flexgrip Exit Dia. 12.5mm CIRCULAR STRAIN RELIEF, ZINC Amphenol MotionGrade 系列 IP67 灰色 电缆固定头 , 11.5mm 至 13mm电缆直径, -20°C至+130°C, M23螺纹
MB1LLN0900
amphenol-sine systems
Conn Circular PIN 9 POS ST Panel Mount 9 Terminal 1 Port CONN RCPT 9POS MALE STR LONG 9 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Circular Metric Connectors M23 B-Series Strt Recpt 9 Position RECEPT, PANEL, M23-B, 9WAY, PIN Conn; Circ; Receptacle; Male; 9 Pos; Crimp; Long Straight; M23; A Ser. Amphenol 9路 面板安装 直向 连接器 插座 , 公触点

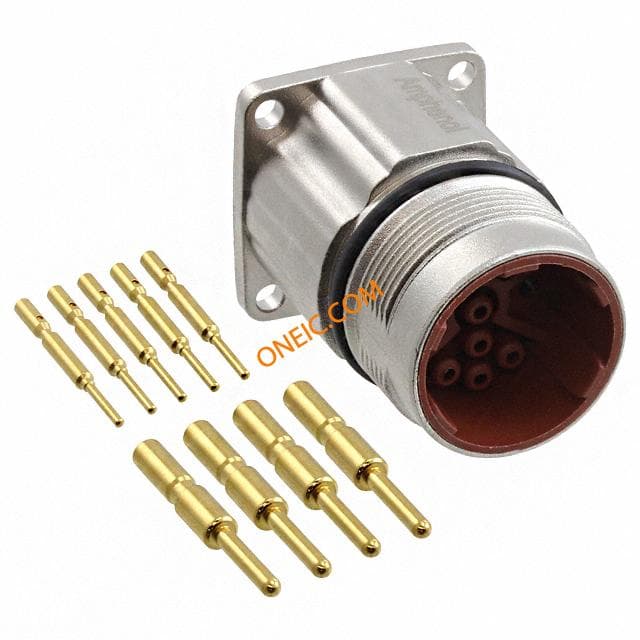

MB1LLN0900-KIT
