MA1RAE1200
| Manufacturer | |
| Description | Conn Circular PIN 12 POS RA Panel Mount 12 Terminal 1 Port CONN RCPT 12POS MALE TYPE E R/A 12 Pole Female Right Angle Panel Mount Industrial & Automation Circular Connector with Male Contacts RECEPT, R/A,, M23-A, TYPE E, 12WAY QRATE Amphenol 12路 面板安装 直角 连接器 插座 , 公触点 |
| Category |
Business
| Other Names | 889-1084 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | 160 V ac/dc | ||
Mechanical
| Height | 41.5 | Weight | 0.0907 |
| Diameter | 25.2 | Packaging | Bulk |
| Cable Exit | No | Orientation | E |
| Contact Size | 1.0mm | Contact Type | 12Signal |
| Mounting Type | Panel Mount | Connector Type | Receptacle for Male or Female Contacts |
| Contact Finish | Gold | Fastening Type | Threaded |
| Insertion Angle | :- | Material - Body | :Zinc |
| Contact Material | Brass | Length - Overall | 52 |
| 1st Contact Gender | PIN | Number of Contacts | 12 |
| Number of Positions | 12 | Shell Size - Insert | :- |
| Shell Material, Finish | Zinc Die Cast | 1st Connector Mounting Type | :Panel |
Product Info
| Note | Contacts Not Provided | Type | Circular |
| Gender | RCP | Series | :MotionGrade M23 A |
| Features | Shielded | ||
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | +130°C |
Documents & Media
Similar Parts

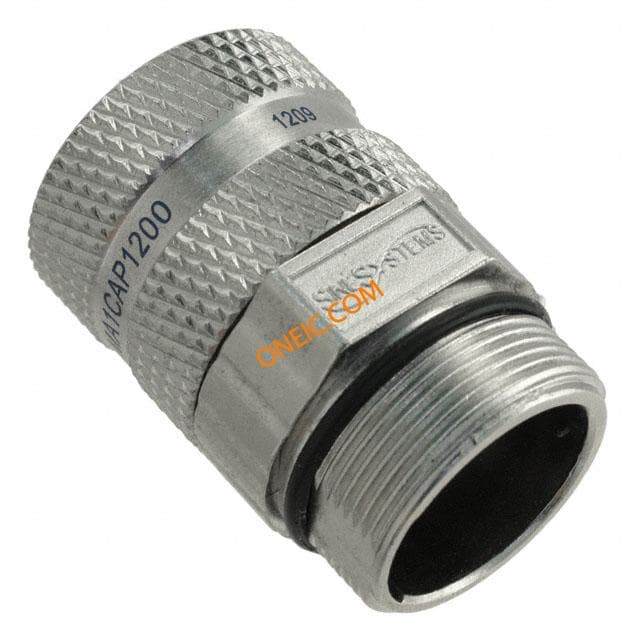

MA1CAP1200
amphenol-sine systems
Conn Circular PIN 12 POS ST Cable Mount 12 Terminal 1 Port CONN PLUG 12POS FMALE TYPE P STR 12 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Circular Metric Connectors M23 A-Series St Plug 12 Position P Type PLUG, M23-A, TYPE P, 12WAY Conn; Circ; Plug; P Type; CCW; Female; 12 Pos, ; Straight; M23; A Ser. Amphenol 12路 电缆安装 直向 连接器 插头 , 公触点
MA1EAE1200
amphenol-sine systems
Conn Circular PIN 12 POS RA Cable Mount 12 Terminal 1 Port CONN PLUG 12POS FMALE TYPE E R/A Circular Metric Connectors M23 A-Rotatable R/A Plug 12 Pos E Type PLUG, R/A, M23-A, TYPE E, 12WAY
MA1EAP1200
amphenol-sine systems
Conn Circular PIN 12 POS RA Cable Mount 12 Terminal 1 Port CONN PLUG 12POS FMALE TYPE P R/A Circular Metric Connectors M23 A Rotatable R/A Plug 12 Pos. P Type PLUG, R/A, M23-A, TYPE P, 12WAY
SC000035
amphenol-sine systems
Contact PIN Crimp ST Cable Mount CONTACT PIN CRIMP 18AWG AU 1.0MM M23 A Series Male Circular Connector Contact, Crimp Circular Metric Connectors Pin Contact Rock Solid 1.0mm CRIMP PIN, MACHINED, 1MM Contact; Pin; Crimp; 1.0 mm Dia.; M23; A, B Ser. Pin contact, machined Size 1 mm, SC000035, Amphenol Amphenol M23 A 系列 公 压接端接 圆形 连接器 触芯, 使用于M23 连接器
SC000013
amphenol-sine systems
Contact SKT Crimp ST Cable Mount CONTACT SKT CRIMP 18AWG AU 1.0MM M23 A Series Female Circular Connector Contact, Crimp Circular Metric Connectors Socket Contact Rock Solid 1.0mm CRIMP SOCKET, ROCKSOLID, 1MM Contact; Socket; Crimp; 1.0 mm Dia.; RockSolid; M23; A, B Ser. Socket contact, machined Size 1 mm, RockSolid, SC000013, Amphenol Amphenol M23 A 系列 母 压接端接 圆形 连接器 触芯, 使用于M23 连接器
SC000044
amphenol-sine systems
Contact SKT Crimp ST Cable Mount CONTACT SKT CRIMP 18AWG AU 1.0MM M23 A Series Female Circular Connector Contact, Crimp Circular Metric Connectors Skt Contact 1.0mm RockSolid Machined CRIMP SOCKET, SLIT MACHINED, 1MM Contact; Socket; Split Machined, ; Crimp; 1.0 mm Dia.; M23; A, B Ser. Socket contact, machined Size 1 mm, SC000044, Amphenol Amphenol M23 A 系列 母 压接端接 圆形 连接器 触芯, 使用于M23 连接器
MA1CAE1200
amphenol-sine systems
Conn Circular PIN 12 POS ST Cable Mount 12 Terminal 1 Port CONN PLUG 12POS FMALE TYPE E STR 12 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Circular Metric Connectors M23 A-Series St Plug 12 Position E Type PLUG, M23-A, TYPE E, 12WAY Conn; Circ; Plug; E Type; CW; Female; 12 Pos; Straight; M23; A Ser. Straight Plug Type 12E 12, MA1CAE1200, Amphenol Amphenol 12路 电缆安装 直向 连接器 插头 , 公触点

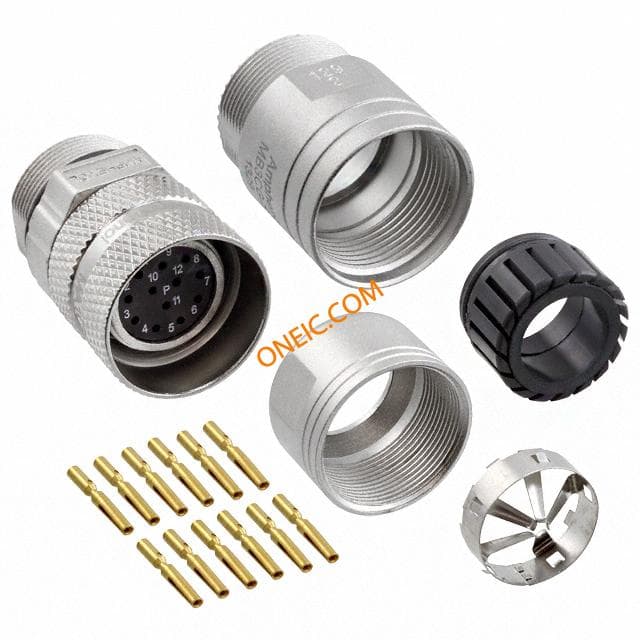

MA1CAP1200-KIT
