MA1LAE1700
| Manufacturer | |
| Description | Conn Circular PIN 17 POS ST Panel Mount 17 Terminal 1 Port CONN RCPT 17POS MALE TYPE E STR 17 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Circular Metric Connectors M23 A-Series 17 Pos. St Recpt E Type RECEPT, PANEL, M23-A, TYPE E, 17WAY Conn; Circ; Receptacle; E Type; CW; Male; 17 Pos; Straight; M23; A Ser. Straight Receptacle Type 17E 17, MA1LAE1700, Amphenol Amphenol 17路 面板安装 直向 连接器 插座 , 公触点 |
| Category |
Business
| Other Names | 889-1081 | Part # Aliases | 14R7006 AEGA034 |
| Product Category | Circular Metric Connectors | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | ||
Electrical
| Voltage - Test | 2500V | Voltage Rating | 125 V ac/dc |
| Current Rating (Max) | 9 A | Current - Short Circuit (Isc) | 9A |
Mechanical
| Depth | 25.6 | Height | 25.6 |
| Weight | 0.0303 | Material | Zinc Die-Cast |
| Packaging | Bulk | Cable Exit | No |
| Orientation | E | Shell Style | Receptacle |
| Contact Size | 1.0mm | Contact Type | 17Signal |
| Mounting Type | Panel Mount | Connector Type | Receptacle for Male or Female Contacts |
| Contact Finish | Gold | Fastening Type | Threaded |
| Mounting Style | Cable | Insertion Angle | :- |
| Material - Body | :Zinc | Contact Material | Brass |
| Length - Overall | 27.5 | Termination Style | Pin |
| 1st Contact Gender | PIN | Number of Contacts | 17 |
| Number of Positions | 17 | Shell Size - Insert | :- |
| Shell Material, Finish | Zinc Die Cast | 1st Connector Mounting Type | :Panel |
Product Info
| Note | Contacts Not Provided | Type | Circular |
| Gender | RCP | Series | M23 |
| Features | Shielded | Manufacturer | A Series |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | +130°C |
Documents & Media
Similar Parts
MA1CAE1700
amphenol-sine systems
Conn Circular PIN 17 POS ST Cable Mount 17 Terminal 1 Port CONN PLUG 17POS FMALE TYPE E STR 17 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Circular Metric Connectors M23 A-Series St Plug 17 Position E Type PLUG, M23-A, TYPE E, 17WAY Conn; Circ; Plug; E Type; CW; Female; 17 Pos, ; Straight; M23; A Ser. Straight Plug Type 17E 17, MA1CAE1700, Amphenol Amphenol 17路 电缆安装 直向 连接器 插头 , 公触点
SC000035
amphenol-sine systems
Contact PIN Crimp ST Cable Mount CONTACT PIN CRIMP 18AWG AU 1.0MM M23 A Series Male Circular Connector Contact, Crimp Circular Metric Connectors Pin Contact Rock Solid 1.0mm CRIMP PIN, MACHINED, 1MM Contact; Pin; Crimp; 1.0 mm Dia.; M23; A, B Ser. Pin contact, machined Size 1 mm, SC000035, Amphenol Amphenol M23 A 系列 公 压接端接 圆形 连接器 触芯, 使用于M23 连接器
MA1EAE1700
amphenol-sine systems
Conn Circular PIN 17 POS RA Cable Mount 17 Terminal 1 Port CONN PLUG 17POS FMALE TYPE E R/A Circular Metric Connectors M23 A Rotatable R/A Plug 17 Pos. E Type PLUG, R/A, M23-A, TYPE E, 17WAY 90° Plug Type 17E 17, MA1EAE1700, Amphenol
SC000013
amphenol-sine systems
Contact SKT Crimp ST Cable Mount CONTACT SKT CRIMP 18AWG AU 1.0MM M23 A Series Female Circular Connector Contact, Crimp Circular Metric Connectors Socket Contact Rock Solid 1.0mm CRIMP SOCKET, ROCKSOLID, 1MM Contact; Socket; Crimp; 1.0 mm Dia.; RockSolid; M23; A, B Ser. Socket contact, machined Size 1 mm, RockSolid, SC000013, Amphenol Amphenol M23 A 系列 母 压接端接 圆形 连接器 触芯, 使用于M23 连接器
SC000044
amphenol-sine systems
Contact SKT Crimp ST Cable Mount CONTACT SKT CRIMP 18AWG AU 1.0MM M23 A Series Female Circular Connector Contact, Crimp Circular Metric Connectors Skt Contact 1.0mm RockSolid Machined CRIMP SOCKET, SLIT MACHINED, 1MM Contact; Socket; Split Machined, ; Crimp; 1.0 mm Dia.; M23; A, B Ser. Socket contact, machined Size 1 mm, SC000044, Amphenol Amphenol M23 A 系列 母 压接端接 圆形 连接器 触芯, 使用于M23 连接器

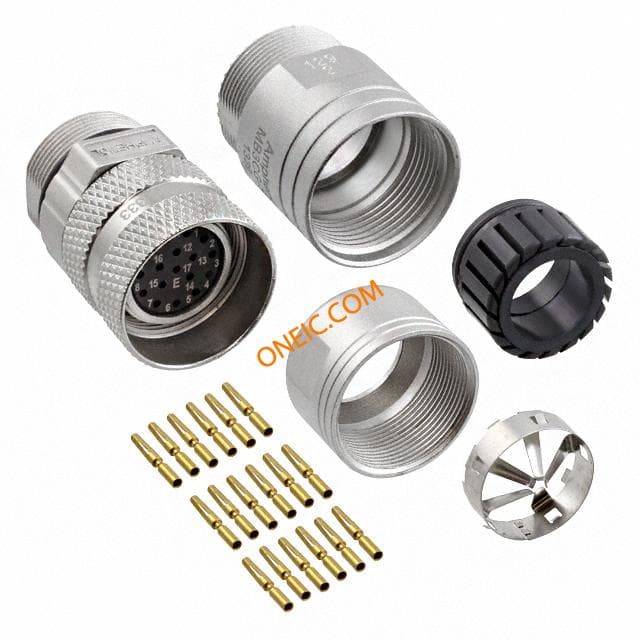

MA1CAE1700-KIT
