MA1CAP1700
| Manufacturer | |
| Description | Conn Circular PIN 17 POS ST Cable Mount 17 Terminal 1 Port CONN PLUG 17POS FMALE TYPE P STR 17 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Circular Metric Connectors M23 A-Series St Plug 17 Position P Type PLUG, M23-A, TYPE P, 17WAY Conn; Circ; Plug; P Type; CCW; Female; 17 Pos, ; Straight; M23; A Ser. Straight Plug Type 17P 17, MA1CAP1700, Amphenol Amphenol 17路 电缆安装 直向 连接器 插头 , 公触点 |
| Category |
Business
| Other Names | 889-1066 | Part # Aliases | 14R6996 ASTA035 |
| Product Category | Circular Metric Connectors | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | Rad Hardened | No |
Electrical
| Voltage - Test | 2500V | Voltage Rating | 125 V ac/dc |
| Current Rating (Max) | 9 A | Current - Short Circuit (Isc) | 9A |
Mechanical
| Weight | 0.0451 | Diameter | 25.8 mm |
| Material | Zinc Die-Cast | Packaging | Bulk |
| Cable Exit | No | Orientation | P |
| Shell Style | Plug | Weight (g): | 9.00000 |
| Contact Form | 17Signal | Contact Size | 1.0mm |
| Contact Type | 17Signal | Mounting Type | Cable Mount |
| Connector Type | Plug for Male or Female Contacts | Contact Finish | Gold |
| Fastening Type | Threaded | Mounting Style | Cable |
| Insertion Angle | :- | Material - Body | :Zinc |
| Contact Material | Brass | Termination Style | Pin |
| 1st Contact Gender | PIN | Number of Contacts | 17 |
| Number of Positions | 17 | Shell Size - Insert | :- |
| Shell Material, Finish | Zinc Die Cast | 1st Connector Mounting Type | :Cable |
Product Info
| Note | Contacts Not Provided | Type | Circular |
| Gender | PL | Series | M23 |
| Features | Shielded | Manufacturer | A Series |
| Product Type | Connectors | RF Family/Standard | A |
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | +130°C |
Documents & Media
Similar Parts
MA1JAP1700
amphenol-sine systems
Conn Circular PIN 17 POS ST Cable Mount 17 Terminal 1 Port CONN RCPT 17POS MALE TYPE P STR 17 Pole Female Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Circular Metric Connectors M23 A-Series 17 Pos. St Extension P Type EXTENSION PLUG, M23-A, TYPE P, 17WAY Conn; Circ; Plug; P Type; CCW; Male; Extension; 17 Pos; M23; A Ser. Amphenol 17路 电缆安装 直向 连接器 插座 , 公触点
MA1LAP1700
amphenol-sine systems
Conn Circular PIN 17 POS ST Panel Mount 17 Terminal 1 Port CONN RCPT 17POS MALE TYPE P STR 17 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Circular Metric Connectors M23 A-Series 17 Pos. St Recpt P Type RECEPT, PANEL, M23-A, TYPE P, 17WAY Conn; Circ; Receptacle; P Type; CCW; Male; 17 Pos; Straight; M23; A Ser. Straight Receptacle Type 17P 17, MA1LAP1700, Amphenol Amphenol 17路 面板安装 直向 连接器 插座 , 公触点

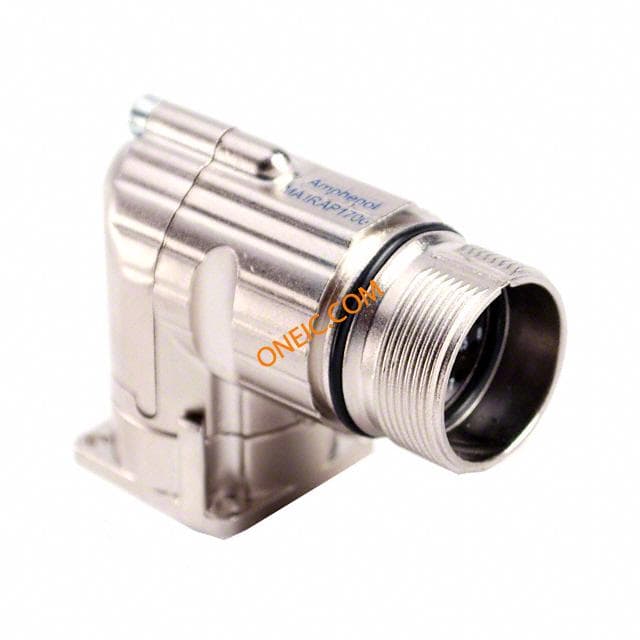

MA1RAP1700
amphenol-sine systems
Conn Circular PIN 17 POS RA Panel Mount 17 Terminal 1 Port CONN RCPT 17POS MALE TYPE P R/A 17 Pole Female Right Angle Panel Mount Industrial & Automation Circular Connector with Male Contacts QRATE Amphenol 17路 面板安装 直角 连接器 插座 , 公触点
MA3CG-S1
amphenol-sine systems
Connector Accessories Cord Grip Zinc Die Cast CORD GRIP 4.5-10.5MM DIAM Cord Grip, crimp cable Dia.4.5~7.5mm Circular Metric Connectors M23 A Cord Grip IP67 Cable Range 4.5-10mm CORD GRIP, M23-A, DIA. 4.5-7.5MM Cord Grip; Crimp; Cable Dia. 4.5-7.5 mm; M23; A Ser. Cordgrip M23 4.5...7.5 mm, MA3CG-S1, Amphenol Amphenol MotionGrade 系列 IP67 灰色 电缆固定头 , 4.5mm 至 8mm电缆直径, -20°C至+130°C, M23螺纹
MA4FSR-A10.5
amphenol-sine systems
Connector Accessories Flex Grip Zinc Die Cast BOOT STRAIN RELIEF 10.5MM DIAM Flexible Strain Relief,Exit Dia.~10.5mm Circular Metric Connectors M23 A Flexgrip Exit Diameter 10.5mm CIRCULAR STRAIN RELIEF, ZINC Amphenol MotionGrade 系列 IP67 电缆固定头 , -20°C至+130°C, M23螺纹
MA4FSR-A8.5
amphenol-sine systems
Connector Accessories Flex Grip Zinc Die Cast BOOT STRAIN RELIEF 8.5MM DIAM Flexible Strain Relief, Exit Dia. ~8.5mm Circular Metric Connectors M23 A Flexgrip Exit Diameter 8.5mm CIRCULAR STRAIN RELIEF, ZINC QRATE Amphenol 电缆固定头 , -20°C至+130°C, M23螺纹
SC000035
amphenol-sine systems
Contact PIN Crimp ST Cable Mount CONTACT PIN CRIMP 18AWG AU 1.0MM M23 A Series Male Circular Connector Contact, Crimp Circular Metric Connectors Pin Contact Rock Solid 1.0mm CRIMP PIN, MACHINED, 1MM Contact; Pin; Crimp; 1.0 mm Dia.; M23; A, B Ser. Pin contact, machined Size 1 mm, SC000035, Amphenol Amphenol M23 A 系列 公 压接端接 圆形 连接器 触芯, 使用于M23 连接器
MA4FSR-A12.8
amphenol-sine systems
Connector Accessories Flex Grip Zinc Die Cast BOOT STRAIN RELIEF 12.8MM DIAM Flexible Strain Relief,Exit Dia.~12.8mm Circular Metric Connectors M23 A Flexgrip Exit Diameter 12-8mm CIRCULAR STRAIN RELIEF, ZINC Amphenol 电缆固定头 , -20°C至+130°C, M23螺纹
MA3CG-S3
amphenol-sine systems
Connector Accessories Cord Grip Zinc Die Cast CORD GRIP 10-12.5MM DIAM Cord Grip, crimp cable Dia.11~15mm Circular Metric Connectors CORD GRIP CRIMP CABLE DIA 10 12.5MM CORD GRIP, M23-A, DIA. 11.0-15.0MM Cord Grip; Crimp; Cable Dia; 11-15 mm; M23; A Ser. Cordgrip M23 11...15 mm, MA3CG-S3, Amphenol Amphenol MotionGrade 系列 IP67 灰色 电缆固定头 , 11mm 至 15mm电缆直径, -20°C至+130°C, M23螺纹
MA3CG-S2
amphenol-sine systems
Connector Accessories Cord Grip Zinc Die Cast CORD GRIP 10.5-15MM DIAM Cord Grip, crimp cable Dia.7.5~11mm Circular Metric Connectors M23 A Cord Grip IP67 Cable 7.5-11 mm CORD GRIP, M23-A, DIA. 7.5-11.0MM Cord Grip; Crimp; Cable Dia. 7.5-11 mm; M23; A Ser. Cordgrip M23 7.5...11 mm, MA3CG-S2, Amphenol Amphenol IP67 电缆固定头 , -20°C至+130°C, M23螺纹
SC000013
amphenol-sine systems
Contact SKT Crimp ST Cable Mount CONTACT SKT CRIMP 18AWG AU 1.0MM M23 A Series Female Circular Connector Contact, Crimp Circular Metric Connectors Socket Contact Rock Solid 1.0mm CRIMP SOCKET, ROCKSOLID, 1MM Contact; Socket; Crimp; 1.0 mm Dia.; RockSolid; M23; A, B Ser. Socket contact, machined Size 1 mm, RockSolid, SC000013, Amphenol Amphenol M23 A 系列 母 压接端接 圆形 连接器 触芯, 使用于M23 连接器
SC000044
amphenol-sine systems
Contact SKT Crimp ST Cable Mount CONTACT SKT CRIMP 18AWG AU 1.0MM M23 A Series Female Circular Connector Contact, Crimp Circular Metric Connectors Skt Contact 1.0mm RockSolid Machined CRIMP SOCKET, SLIT MACHINED, 1MM Contact; Socket; Split Machined, ; Crimp; 1.0 mm Dia.; M23; A, B Ser. Socket contact, machined Size 1 mm, SC000044, Amphenol Amphenol M23 A 系列 母 压接端接 圆形 连接器 触芯, 使用于M23 连接器

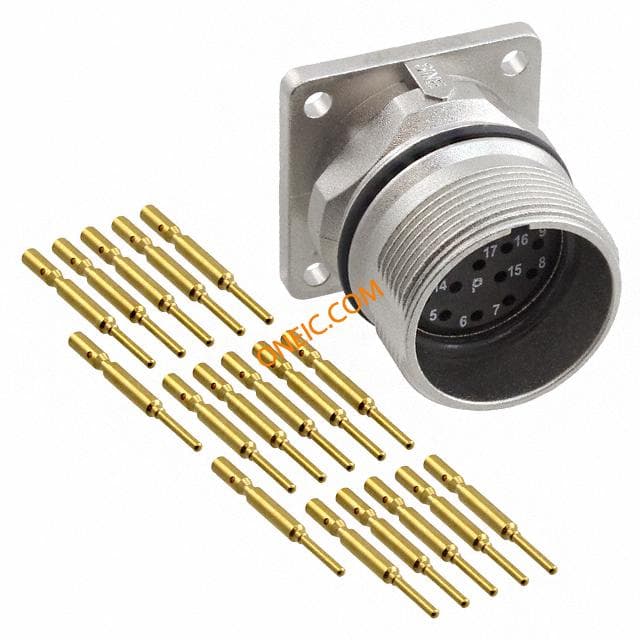

MA1LAP1700-KIT
