AT06-2S
| Manufacturer | |
| Description | Conn Power PL 2 POS ST Cable Mount 2 Terminal 1 Port Conn Housing PL 2 POS Crimp ST Cable Mount CONN PLUG 2POS 14-20AWG SIZE 16 AT 2 Pin Plug Automotive Connectors Plug 2 Way PLUG, AT, 2 WAY, SKT 2 PIN PLUG Connector: wire-wire; AT; plug; female; PIN:2; Locking: lock Crimp housing Poles 2 AT, AT06-2S, Amphenol Amphenol 2路 电缆安装 公 电源连接器 02P AT-SERIES PIN PLUG GRAY |
| Category |
Business
| Product | Housings | Part # Aliases | 14R5598 427-0013 |
| Product Category | Automotive Connectors | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366990 | Material Flammability Rating | :UL94V-0 |
Electrical
| Voltage - Breakdown | :1500V | Current Rating (Max) | :13A |
| Connector - Voltage Input | for size 16 terminals | ||
Mechanical
| Color | Gray | Depth | 28.5mm |
| Width | 14.95mm | Weight | 0.003 |
| Material | :Thermoplastic | Packaging | Bulk |
| Wire Gauge | 14-20 | Contact Type | Female Socket |
| Housing Color | Gray | Mounting Type | Cable Mount |
| Connector Type | Plug | Contact Finish | Nickel |
| Fastening Type | Latch Lock | Mounting Style | for cable |
| Number of Rows | 1 | Locking Feature | lock |
| Material Finish | :- | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Length - Overall | 14.95 |
| Package Quantity | 1500 | Primary Material | Industrial |
| Connector - Cable | plug | Color - Connectors | grey |
| Number of Contacts | 2 | Contact Termination | Crimp |
| Number of Positions | 2 | ||
Product Info
| Spg | 1500 | Note | Contacts Not Provided |
| Type | Power | Gender | PL |
| Series | AT | Manufacturer | AT Series |
| Adapter Series | AT | Number of Units | 1 |
Environmental
| Operating Temperature | :125°C | ||
Documents & Media
Similar Parts
A114017
amphenol-sine systems
BLANK SEAL 16AWG SEAL BLANK 16AWG Blank Seal 16Awg Automotive Connectors Blank Seal 16 AWG Connector Accessories Sealing Plug White Size 16 SEAL PIN, BLANK PIN Sealing pin; AHD, AT, ATP; male-female; Size:12,16 Sealing plug, A114017, Amphenol Amphenol AT/AHD 系列 Seal Plug, 使用于汽车连接器 01P BLANK SEAL PLUG AWG 16
AT04-2P
amphenol-sine systems
Conn Power RCP 2 POS ST Cable Mount 2 Terminal 1 Port Conn Housing RCP 2 POS Crimp ST Cable Mount CONN RCPT 2POS 14-20AWG SIZE 16 AT 2 Pin Receptacle Automotive Connectors AT Series Receptacle 2 Way RECEPTACLE, AT, 2 WAY, PIN 2 PIN RECEPTACLE Connector: wire-wire; AT; plug; male; PIN:2; Locking: lock Crimp housing Poles 2 AT, AT04-2P, Amphenol Amphenol AT 系列 2路 电缆安装 绿色 母 电源连接器 02P AT-SERIES RECEPTACLE GRAY
AT04-2P-EC01
amphenol-sine systems
Conn Power RCP 2 POS ST Cable Mount 2 Terminal 1 Port Conn Housing RCP 2 POS Crimp ST Cable Mount CONN RCPT 2POS 14-20AWG SIZE 16 Automotive Connectors AT Series Receptacle 2 Way End Cap 2 PIN RECEPTACLE, WITH END CAP
AT62-14-0122
amphenol-sine systems
Contact SKT Crimp ST Cable Mount CONN SOCKET 14-16AWG SZ16 NICKEL Female Contact, Stamped&Formed 14-16Awg Automotive Connectors Female Cont Stamped/ Formed 14-16 AWG Nic CONTACT, STAMP & FORMED, SKT, 14AWG FEMALE CONTACT, STAMPED & FORMED 14-16AWG, NICKEL PLATE Crimp socket 13 A Female 16...14 AWG, AT62-14-0122, Amphenol Amphenol AT 系列

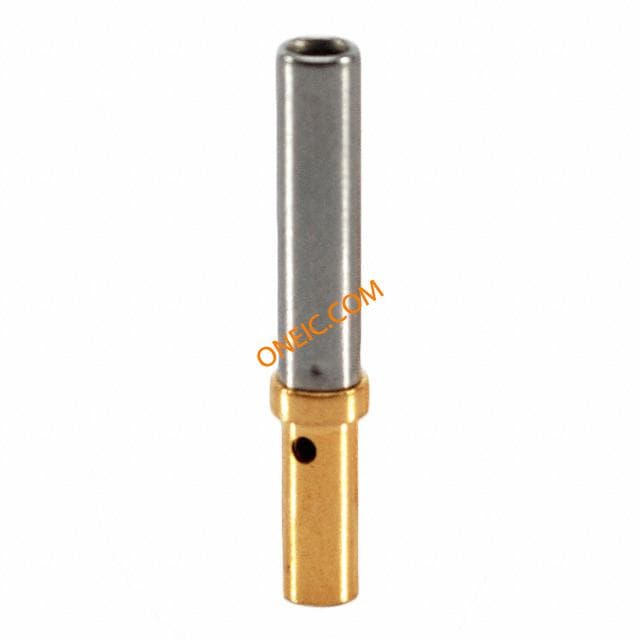

AT62-210-1231
amphenol-sine systems
Contact SKT Crimp ST Cable Mount CONN SOCKET 12-14AWG GOLD Female Cont,Machined 12-14Awg,Gold Plate Automotive Connectors Female 12-14 AWG Machined Contact CONTACT, MACHINED, SKT, 12AWG CONTACT, SOCKET, 14-12 AWG, CRIMP FEMALE CONTACT, MACHINED 12-14AWG, GOLDPLATE Amphenol AT 系列
65-54757
amphenol-sine systems
FEMALE CONTACT,DIAGNOSTICS, SIZE 16, WIRE GAGE 20 AWG CONN SOCKET 20AWG SIZE 16 Automotive Connectors Diagnostic Size 16 Female Cont. 20 AWG FEMALE CONTACT, DIAGNOSTICS, SIZE 16, WIRE GAGE 20 AWG
AT62-16-0622
amphenol-sine systems
Contact SKT Crimp ST Cable Mount Reel CONN FEMALE 18-20AWG NICKEL PLTE Automotive Connectors Female Cont Stamped/ Formed 18-20 AWG Nic FEMALE CONTACT, STAMPED & FORMED 18-20AWG, NICKEL PLATE Amphenol AT 系列 塞孔接点, 使用于AT 系列连接器
AT62-16-0122
amphenol-sine systems
Contact SKT Crimp ST Cable Mount CONN SOCKET 16-18AWG SZ16 NICKEL Female Contact,Stamped&Formed 16-18Awg Automotive Connectors Female Cont Stamped/ Formed 16-18 AWG Nic CONTACT, SOCKET, 18-16AWG, CRIMP, FULL REEL FEMALE CONTACT, STAMPED & FORMED 16-18AWG, NICKEL PLATE Contact; Size:16; female; 0.75÷1.5mm2; AHD, AT; nickel plated; tape Crimp socket 13 A Female 18...16 AWG, AT62-16-0122, Amphenol Amphenol AT 系列 触点, 使用于AT 系列连接器 ATM FEMALE CRIMP AWG 16 NICKEL

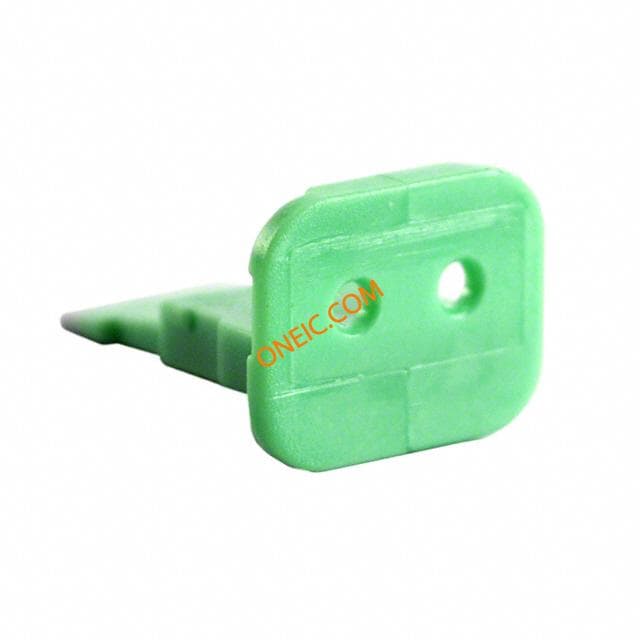

AW2S
