点击放大查看
AT04-6P
| Manufacturer | |
| Description | Conn Power RCP 6 POS ST Cable Mount 6 Terminal 1 Port Conn Housing RCP 6 POS Crimp ST Cable Mount CONN RCPT 6POS 14-20AWG SIZE 16 AT 6 Pin Receptacle Automotive Connectors AT Series Receptacle 6 Way RECEPTACLE, AT, 6 WAY, PIN 6 PIN RECEPTACLE Connector: wire-wire; AT; plug; male; PIN:6; Locking: lock Crimp housing Poles 6 AT, AT04-6P, Amphenol Amphenol 6路 电缆安装 母 电源连接器 06P AT-SERIES RECEPTACLE GRAY |
| Category |
Business
| Product | Connectors | Part # Aliases | 14R5589 427-0004 |
| Product Category | Automotive Connectors | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366990 | Material Flammability Rating | :UL94V-0 |
Electrical
| Voltage - Breakdown | :1500V | Current Rating (Max) | :13A |
| Connector - Voltage Input | for size 16 terminals | ||
Mechanical
| Color | Gray | Depth | 46.1mm |
| Width | 20.96mm | Height | 24.36mm |
| Weight | 0.002 | Material | :Thermoplastic |
| Packaging | Bulk | Wire Gauge | 14-20 |
| Contact Type | Male Pin | Housing Color | Gray |
| Mounting Type | Cable Mount | Connector Type | Receptacle |
| Fastening Type | Latch Holder | Mounting Style | Wire |
| Number of Rows | 3 | Locking Feature | lock |
| Material Finish | :- | Housing Material | Thermoplastic |
| Length - Overall | 20.96 mm | Package Quantity | 480 |
| Primary Material | Industrial | Connector - Cable | plug |
| Color - Connectors | grey | Number of Contacts | 6 |
| Contact Termination | Crimp | Number of Positions | 6 |
Product Info
| Spg | 480 | Note | Contacts Not Provided |
| Type | Power | Gender | RCP |
| Series | AT | Manufacturer | AT Series |
| Adapter Series | AT | Number of Ports | 1 Port |
| Number of Units | 1 | ||
Environmental
| Operating Temperature | - 55 C to + 125 C | ||
Documents & Media
Similar Parts
A114017
amphenol-sine systems
BLANK SEAL 16AWG SEAL BLANK 16AWG Blank Seal 16Awg Automotive Connectors Blank Seal 16 AWG Connector Accessories Sealing Plug White Size 16 SEAL PIN, BLANK PIN Sealing pin; AHD, AT, ATP; male-female; Size:12,16 Sealing plug, A114017, Amphenol Amphenol AT/AHD 系列 Seal Plug, 使用于汽车连接器 01P BLANK SEAL PLUG AWG 16
AT06-6S
amphenol-sine systems
Conn Power PL 6 POS ST Cable Mount 6 Terminal 1 Port Conn Housing PL 6 POS Crimp ST Cable Mount CONN PLUG 6POS 14-20AWG SIZE 16 AT 6 Pin Plug Automotive Connectors Plug 6 Way PLUG, AT, 6 WAY, SKT 6 PIN PLUG Connector: wire-wire; AT; plug; female; PIN:6; Locking: lock Crimp housing Poles 6 AT, AT06-6S, Amphenol Amphenol 6路 电缆安装 公 电源连接器 06P AT-SERIES PIN PLUG GRAY
AT06-6S-EC01
amphenol-sine systems
Conn Power PL 6 POS ST Cable Mount 6 Terminal 1 Port Automotive Connectors Plug 6 Way End Cap Conn Housing PL 6 POS Crimp ST Cable Mount CONN PLUG 6POS 14-20AWG SIZE 16
AT60-14-0122
amphenol-sine systems
Contact PIN Crimp ST Cable Mount CONN PIN 14-16AWG SIZE 16 NICKEL Male Contact,Stamped & Formed 14-16Awg Automotive Connectors Male Cont Stamped/ Formed 14-16 AWG Nic CONTACT, STAMP & FORMED, PIN, 14AWG MALE CONTACT, STAMPED & FORMED 14-16AWG, NICKEL PLATE Crimp pin 13 A Male 16...14 AWG, AT60-14-0122, Amphenol Amphenol AT 系列
AT60-16-0122
amphenol-sine systems
Contact PIN Crimp ST Cable Mount CONN PIN 16-18AWG SIZE 16 NICKEL Male Contact,Stamped&Formed 16-18Awg Automotive Connectors Male Cont Stamped/ Formed 16-18 AWG Nic CONTACT, PIN, 18-16 AWG, CRIMP CONTACT, PIN, 18-16AWG, CRIMP, FULL REEL MALE CONTACT, STAMPED & FORMED 16-18AWG, NICKEL PLATE Contact; Size:16; male; 0.75÷1.5mm2; AHD, AT; nickel plated; tape Crimp pin 13 A Male 18...16 AWG, AT60-16-0122, Amphenol Amphenol AT 系列 ATM MALE CRIMP AWG 16 NICKEL
AT60-220-1231
amphenol-sine systems
Contact PIN Crimp ST Cable Mount CONN PIN 12-14AWG GOLD Male Contact,Machined 12-14Awg,Au Plate Automotive Connectors Male Cont Machined Formed 12-14 AWG CONTACT, MACHINED, PIN, 12AWG CONTACT, PIN, 14-12 AWG, CRIMP MALE CONTACT, MACHINED 12-14AWG, GOLD PLATE Amphenol AT 系列

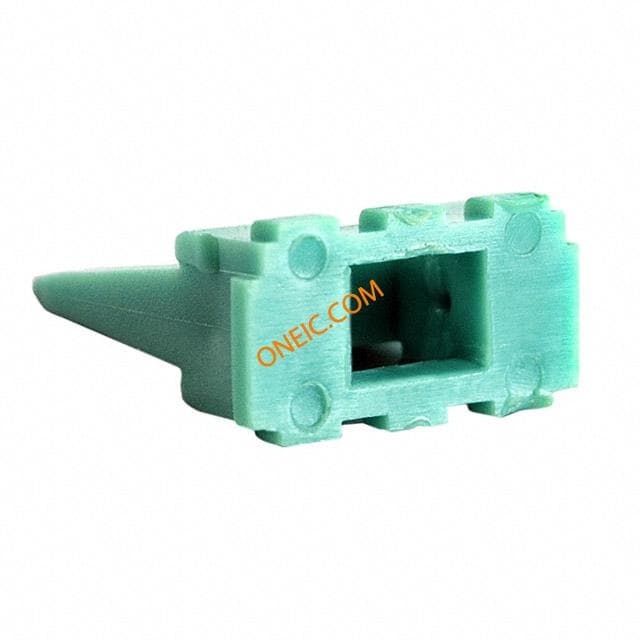

AW6P
