AHD16-9-96S
| Manufacturer | |
| Description | Conn Circular PL 9 POS ST 9 Terminal 1 Port Conn Circular PIN 9 POS ST Cable Mount 9 Terminal 1 Port CONN PLUG 9POS W/COUPLING 9 Pole Male Straight MIL Spec Circular Connector with Male Contacts Automotive Connectors HD Locking Ring 9 Pin Plug (Non-J1939) PLUG,, HD CIRC, LOCKING RING, 9 WAY HD SERIES LOCKING RING (NON-J1939) 9 PIN PLUG Connector: wire-wire; AHD; plug; female; PIN:9; Locking: bayonet Amphenol AHD 系列 9路 直向 连接器 插头 , 公触点 |
| Category |
Business
| Product | Connectors | Part # Aliases | 14R5576 427-0053 |
| Product Category | Automotive Connectors | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366990 | Rad Hardened | No |
Electrical
| Voltage - Breakdown | :1500V | Connector - Voltage Input | for size 16 terminals |
Mechanical
| Depth | Not Required mm | Height | Not Required mm |
| Weight | 0.04 | Diameter | 40.29 |
| Material | :Thermoplastic | Packaging | Bulk |
| Cable Exit | No | Orientation | Keyed |
| Contact Form | 9Signal | Contact Size | 16 |
| Contact Type | 9Signal | Mounting Type | Straight |
| Connector Type | Plug for Female Contacts | Fastening Type | Bayonet Lock |
| Mounting Style | Free Hanging | Insertion Angle | :- |
| Locking Feature | bayonet | Length - Overall | 41.5 mm |
| Package Quantity | 100 | Primary Material | Sealed |
| Connector - Cable | plug | Termination Style | Crimp |
| 1st Contact Gender | PIN | Number of Contacts | 9 |
| Number of Positions | 9 | Shell Size - Insert | :- |
| Shell Material, Finish | Thermoplastic | 1st Connector Mounting Type | :Cable |
Product Info
| Spg | 100 | Note | Contacts Not Provided |
| Type | Circular | Gender | PL |
| Series | AHD | Manufacturer | AHD Series |
| Adapter Series | AHD | Number of Units | 1 |
Environmental
| Seal Rating | IP 67 | Operating Temperature | +125°C |
Documents & Media
Similar Parts
A114017
amphenol-sine systems
BLANK SEAL 16AWG SEAL BLANK 16AWG Blank Seal 16Awg Automotive Connectors Blank Seal 16 AWG Connector Accessories Sealing Plug White Size 16 SEAL PIN, BLANK PIN Sealing pin; AHD, AT, ATP; male-female; Size:12,16 Sealing plug, A114017, Amphenol Amphenol AT/AHD 系列 Seal Plug, 使用于汽车连接器 01P BLANK SEAL PLUG AWG 16
AT62-14-0122
amphenol-sine systems
Contact SKT Crimp ST Cable Mount CONN SOCKET 14-16AWG SZ16 NICKEL Female Contact, Stamped&Formed 14-16Awg Automotive Connectors Female Cont Stamped/ Formed 14-16 AWG Nic CONTACT, STAMP & FORMED, SKT, 14AWG FEMALE CONTACT, STAMPED & FORMED 14-16AWG, NICKEL PLATE Crimp socket 13 A Female 16...14 AWG, AT62-14-0122, Amphenol Amphenol AT 系列
65-54757
amphenol-sine systems
FEMALE CONTACT,DIAGNOSTICS, SIZE 16, WIRE GAGE 20 AWG CONN SOCKET 20AWG SIZE 16 Automotive Connectors Diagnostic Size 16 Female Cont. 20 AWG FEMALE CONTACT, DIAGNOSTICS, SIZE 16, WIRE GAGE 20 AWG
AT62-16-0622
amphenol-sine systems
Contact SKT Crimp ST Cable Mount Reel CONN FEMALE 18-20AWG NICKEL PLTE Automotive Connectors Female Cont Stamped/ Formed 18-20 AWG Nic FEMALE CONTACT, STAMPED & FORMED 18-20AWG, NICKEL PLATE Amphenol AT 系列 塞孔接点, 使用于AT 系列连接器
AT62-16-0122
amphenol-sine systems
Contact SKT Crimp ST Cable Mount CONN SOCKET 16-18AWG SZ16 NICKEL Female Contact,Stamped&Formed 16-18Awg Automotive Connectors Female Cont Stamped/ Formed 16-18 AWG Nic CONTACT, SOCKET, 18-16AWG, CRIMP, FULL REEL FEMALE CONTACT, STAMPED & FORMED 16-18AWG, NICKEL PLATE Contact; Size:16; female; 0.75÷1.5mm2; AHD, AT; nickel plated; tape Crimp socket 13 A Female 18...16 AWG, AT62-16-0122, Amphenol Amphenol AT 系列 触点, 使用于AT 系列连接器 ATM FEMALE CRIMP AWG 16 NICKEL
AHD10-9-1939P
amphenol-sine systems

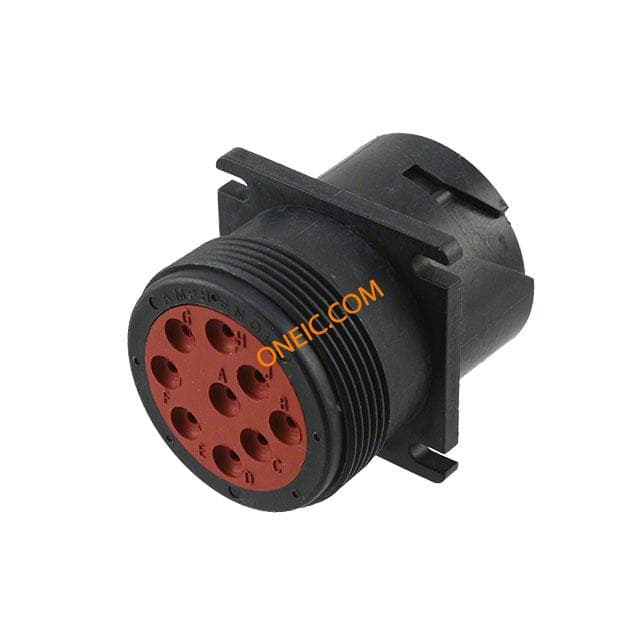

Conn Circular 9 POS ST Flange Mount 9 Terminal 1 Port CONN RCPT 9PIN W/FLANGE Automotive Connectors HD Series 9 Pin Recept. AHD SERIES 9 PIN RECEPTACLE; MILITARY STYLE Connector: wire-wire; AHD; socket; male; PIN:9; Locking: bayonet Amphenol AHD 系列 9路 法兰安装 直向 圆形连接器 插头 , 母触点, 卡口式接合
