AHD16-6-12S
| Manufacturer | |
| Description | Conn Circular PL 6 POS ST 6 Terminal 1 Port Conn Circular PIN 6 POS ST Cable Mount 6 Terminal 1 Port CONN PLUG 6POS SMOOTH SHELL 6 Pole Male Straight MIL Spec Circular Connector with Male Contacts Automotive Connectors 6P PLG SMOOTH SHELL DIAGNOSTIC GRADE HD HD SERIES 6 PIN PLUG SMOOTH SHELL DIAGNOSTIC GRADE Connector: wire-wire; AHD; plug; female; PIN:6; Locking: bayonet Amphenol AHD 系列 6路 直向 连接器 插头 , 公触点 |
| Category |
Business
| Product | Plugs | Other Names | 889-1064 |
| Part # Aliases | 427-0057 | Product Category | Automotive Connectors |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Connector - Voltage Input | for terminals, size 12 | ||
Mechanical
| Depth | Not Required mm | Height | Not Required mm |
| Weight | 0.03 kg | Diameter | 36.9 mm |
| Packaging | Bulk | Cable Exit | No |
| Orientation | Keyed | Contact Form | 6Signal |
| Contact Size | 12 | Contact Type | 6Signal |
| Mounting Type | Straight | Connector Type | Plug for Female Contacts |
| Fastening Type | Bayonet Lock | Mounting Style | Cable |
| Locking Feature | bayonet | Length - Overall | 41.5 mm |
| Package Quantity | 100 | Primary Material | Sealed |
| Connector - Cable | plug | Termination Style | Crimp |
| 1st Contact Gender | PIN | Number of Contacts | 6 |
| Number of Positions | 6 | Shell Material, Finish | Thermoplastic |
Product Info
| Spg | 100 | Note | Contacts Not Provided |
| Type | Circular | Gender | PL |
| Series | AHD | Manufacturer | AHD Series |
| Adapter Series | AHD | Number of Units | 1 |
Environmental
| Seal Rating | IP 67 | Operating Temperature | +125°C |
Documents & Media
Similar Parts
AT62-210-1231
amphenol-sine systems
Contact SKT Crimp ST Cable Mount CONN SOCKET 12-14AWG GOLD Female Cont,Machined 12-14Awg,Gold Plate Automotive Connectors Female 12-14 AWG Machined Contact CONTACT, MACHINED, SKT, 12AWG CONTACT, SOCKET, 14-12 AWG, CRIMP FEMALE CONTACT, MACHINED 12-14AWG, GOLDPLATE Amphenol AT 系列

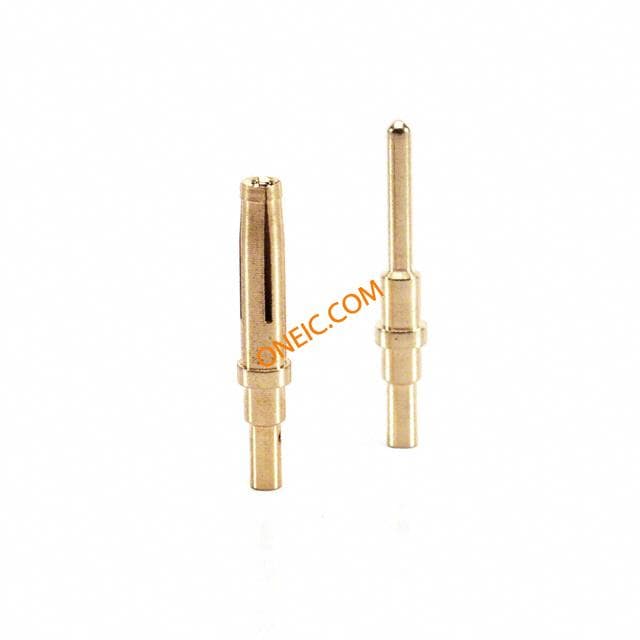

65-54748
amphenol-sine systems
FEMALE CONTACT, DIAGNOSTIC GRADE, SIZE 12, WIRE GAGE 20 AWG FEMALE CONTACT, DIAGNOSTIC GRA CONN SOCKET 20AWG SIZE 12 Automotive Connectors Diagnostic Size 12 Female Cont. 20 AWG FEMALE CONTACT, DIAGNOSTIC GRADE, SIZE 12, WIRE GAGE 20 AWG

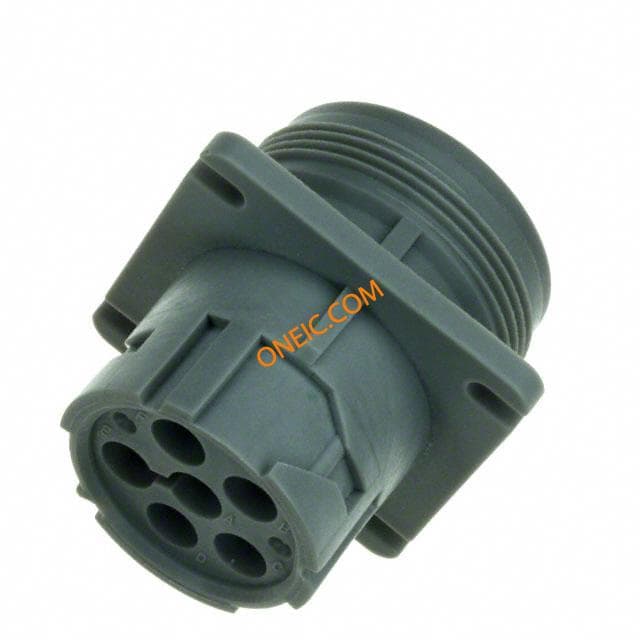

AHD10-6-12P
