RT0710-6PNH
| Manufacturer | |
| Description | CONN HSG RCPT 6POS JAM NUT PINS Jam nut receptacle RT360 Poles=6 Male Housing size10, RT0710-6PNH, Amphenol |
Business
| Standard Package | 50 | ||
Electrical
| Voltage Rating | 150 | Number of Poles | 6 |
| Current Rating (Max) | 5 A | Voltage - Protection Level (VP) (2416) | IP 67 |
Mechanical
| Packaging | Bulk | Shell Size | 10 |
| Orientation | N (Normal) | Contact Size | 20 |
| Contact Type | Crimp | Mounting Type | Panel Mount, Bulkhead - Front Side Nut |
| Connector Type | Receptacle for Male Contacts | Fastening Type | Bayonet Lock |
| Locking Feature | Bayonet locking | Housing Material | Zinc Alloy |
| Number of Contacts | Size 20 | Number of Positions | 6 |
| Shell Size - Insert | 10-6 | 1st Connector Gender | Male |
| Shell Material, Finish | Zinc Die Cast, Nickel Plated | ||
Product Info
| Note | Contacts Not Provided | Series | RT360 |
Environmental
| Ingress Protection | IP67/68 - Dust Tight, Waterproof | Operating Temperature | -40...+105 °C |
Similar Parts
RT010DCG
Amphenol Sine Systems Corp
CONN RCPT DUST CAP SIZE 10 Standard Circular Connector Recptle Dust Cap Shell Size 18 DUST CAP, RT360 RECEPT, SIZE 10 Connector accessories: protection cover; Series: RT360 Receptacle dust cap 10, RT010DCG, Amphenol
SP20W1F
Amphenol Sine Systems Corp
CONTACT PIN CRIMP 20-22AWG GOLD Standard Circular Contacts Pin 3K Gold Flash Wire Range 20-22 CONTACT, PIN, S&F, SIZE 20, 20-22AWG Contact; Pin; Stamped; 3K Reel; Gold Flash; 22-20 AWG; RT360 Series Contact; Size:20; male; 20÷22AWG; RT360; gold plated; crimped; tape RT PIN 3K GOLD WIRE RANGE 20-22
SP28W1F
Amphenol Sine Systems Corp
CONTACT PIN CRIMP 28-30AWG GOLD Standard Circular Contacts Pin 3K Gold Flash Wire Range 30-28 CONTACT, PIN, S&F, SIZE 20, 28-30AWG Contact; Pin; Stamped; 3K Reel; Gold Flash; 30-28 AWG; RT360 Series Contact; Size:20; male; 28÷30AWG; RT360; gold plated; crimped; tape Crimp pin, SP28W1F, Amphenol
MP20W23F
Amphenol Sine Systems Corp
CONTACT PIN CRIMP 20-22AWG GOLD Standard Circular Contacts Mach Pin Gld Flash Wire Range 20-22 Contact; Pin; Machined; Gold Flash; 22-20 AWG; RT360 Series Contact; Size:20; male; 20÷22AWG; RT360; gold flash; crimped; 7.5A
MP28W23F
Amphenol Sine Systems Corp
CONTACT PIN CRIMP 28-30AWG GOLD Contact; Pin; Machined; Gold Flash; 30-28 AWG; RT360 Series Contact; Size:20; male; 28÷30AWG; RT360; gold flash; crimped; 7.5A
MP20W23G30
Amphenol Sine Systems Corp
CONTACT PIN CRIMP 20-22AWG GOLD Contact; Size:20; male; 20÷22AWG; RT360; gold plated; crimped; 7.5A
MP28W23G30
Amphenol Sine Systems Corp
CONTACT PIN CRIMP 28-30AWG GOLD Contact; Size:20; male; 28÷30AWG; RT360; gold plated; crimped; 7.5A

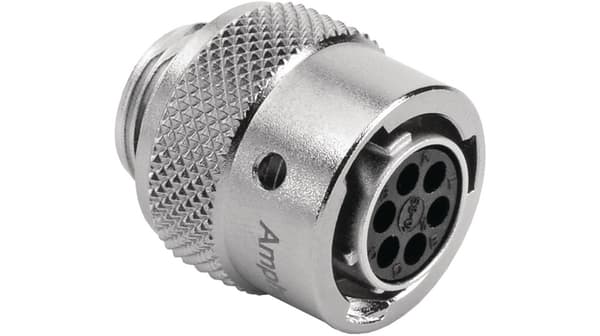

RT0610-6SNH
