RT0710-4PNH
| Manufacturer | |
| Description | CONN HSG RCPT 4POS JAM NUT PINS RECEPT, JAM NUT, SIZE 10, 4WAY, PIN Conn; Circular; Receptacla; Jam Nut; 4 Pin; Male; 16 AWG; RT360 Series Connector: circular; male; Series: RT360; Case: size 10; socket Jam nut receptacle RT360 Poles=4 Male Housing size10, RT0710-4PNH, Amphenol |
| Category |
Business
| Standard Package | 50 | ||
Compliance
| Standards | UL E63093 | Tariff No | 85369010 |
Electrical
| Connector - Voltage Input | for size 16 terminals | ||
Mechanical
| Weight | 0.025 | Packaging | Bulk |
| Orientation | N (Normal) | Contact Size | 16 |
| Contact Type | Crimp | Body Material | aluminium, zinc |
| Mounting Type | Panel Mount, Bulkhead - Front Side Nut | Connector Type | Receptacle for Male Contacts |
| Fastening Type | Bayonet Lock | Mounting Style | for panel mounting, front side nut |
| Package / Case | size 10 | Plating - Body | nickel |
| Insertion Angle | :10-4 | Locking Feature | external bayonet |
| Material - Body | :Zinc Alloy | Package Quantity | 25 |
| Connector - Cable | socket | 1st Contact Gender | :Pin |
| Number of Positions | 4 | Shell Size - Insert | 10-4 |
| Shell Material, Finish | Zinc Die Cast, Nickel Plated | 1st Connector Mounting Type | :Panel |
Product Info
| Spg | 25 | Note | Contacts Not Provided |
| Gender | :Socket | Series | :RT360 |
| Adapter Series | RT360 | Number of Units | 1 |
Environmental
| Ingress Protection | IP67/68 - Dust Tight, Waterproof | Operating Temperature | -40...105°C |
Similar Parts
RT010DCG
Amphenol Sine Systems Corp
CONN RCPT DUST CAP SIZE 10 Standard Circular Connector Recptle Dust Cap Shell Size 18 DUST CAP, RT360 RECEPT, SIZE 10 Connector accessories: protection cover; Series: RT360 Receptacle dust cap 10, RT010DCG, Amphenol
SP20M1F
Amphenol Sine Systems Corp
CONTACT PIN CRIMP 20-22AWG GOLD Standard Circular Contacts Pin 3K Gold Flash Wire Range 20-22 CONTACT, PIN, SIZE 16, 22-20 AWG, CRIMP Contact; Pin; Stamped; 3K Reel; Gold Flash; 22-20 AWG; RT360 Series Contact; Size:16; male; 20÷22AWG; RT360; gold plated; crimped; tape Crimp pin, SP20M1F, Amphenol RT PIN 3K GOLD WIRE 20-22
SP16M1F
Amphenol Sine Systems Corp
CONTACT PIN CRIMP 16-18AWG GOLD Standard Circular Contacts Pin 3K Gold Flash Wire Range 16-18 CONTACT, PIN, S&F, SIZE 16, 16-18AWG Contact; Pin; Stamped; 3K Reel; Gold Flash; 18-16 AWG; RT360 Series Contact; Size:16; male; 16÷18AWG; RT360; gold plated; crimped; tape
SP24M1F
Amphenol Sine Systems Corp
CONTACT PIN CRIMP 24-26AWG GOLD Standard Circular Contacts Pin 3K Gold Flash Wire Range 24-26 CONTACT, PIN, S&F, SIZE 16, 24-26AWG Contact; Pin; Stamped; 3K Reel; Gold Flash; 26-24 AWG; RT360 Series Contact; Size:16; male; 24÷26AWG; RT360; gold plated; crimped; tape Crimp pin, SP24M1F, Amphenol
SP14M1F
Amphenol Sine Systems Corp
CONT PIN CRIMP 14AWG GOLD SZ 16 Standard Circular Contacts Pin 3K Gold Flash Wire Range 14 CONTACT, PIN, S&F, SIZE 16, 14AWG Contact; Pin; Stamped, ; 3K Reel; Gold Flash; 14 AWG; RT360 Series Contact; Size:16; male; 14AWG; RT360; gold plated; crimped; tape Crimp pin, SP14M1F, Amphenol

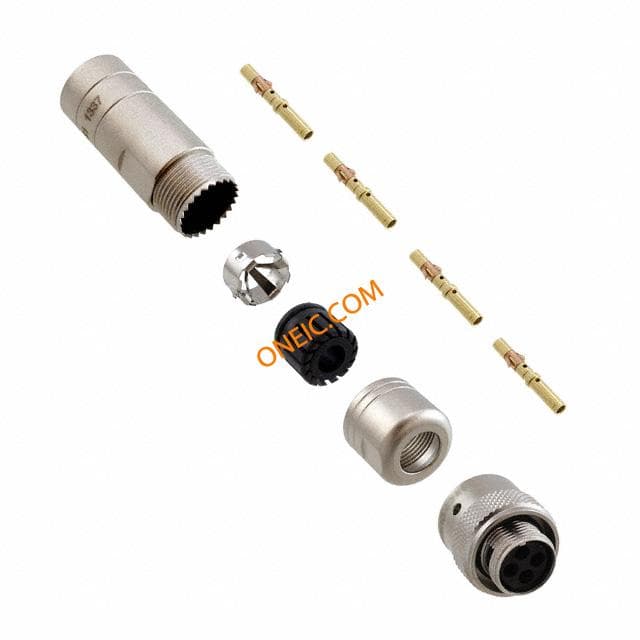

RT06104SNH-K
