RT0614-12PNH
| Manufacturer | |
| Description | CONN HSG PLUG 12POS CABLE PINS CIRCULAR CONNECTOR, PLUG, 14-12, CABLE CONN HSG PLUG 12POS INLINE PINS Conn; Circular; Plug; 12 Pin; Male; 16 AWG; RT360 Series Connector: circular; male; Series: RT360; Case: size 14; plug; IP67 Cable plug RT360 Poles=12 Male Housing size14, RT0614-12PNH, Amphenol |
| Category |
Business
| Standard Package | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | UL E63093 |
| Tariff No | 85369010 | ||
Electrical
| Connector - Voltage Input | for size 16 terminals | ||
Mechanical
| Weight | 0.03 | Packaging | Bulk |
| Orientation | N (Normal) | Contact Size | 16 |
| Contact Type | Crimp | Body Material | aluminium, zinc |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Plug for Male Contacts |
| Fastening Type | Bayonet Lock | Mounting Style | for cable |
| Package / Case | size 14 | Plating - Body | nickel |
| Insertion Angle | :14-12 | Locking Feature | internal bayonet |
| Material - Body | :Zinc Alloy | Package Quantity | 25 |
| Connector - Cable | plug | 1st Contact Gender | :Pin |
| Number of Positions | 12 | Shell Size - Insert | 14-12 |
| Shell Material, Finish | Zinc Die Cast, Nickel Plated | 1st Connector Mounting Type | :Cable |
Product Info
| Spg | 25 | Note | Contacts Not Provided |
| Gender | :Plug | Series | :RT360 |
| Adapter Series | RT360 | Number of Units | 25 |
Environmental
| Ingress Protection | IP67/68 - Dust Tight, Waterproof | Operating Temperature | -40...105°C |
Similar Parts
SP20M1F
Amphenol Sine Systems Corp
CONTACT PIN CRIMP 20-22AWG GOLD Standard Circular Contacts Pin 3K Gold Flash Wire Range 20-22 CONTACT, PIN, SIZE 16, 22-20 AWG, CRIMP Contact; Pin; Stamped; 3K Reel; Gold Flash; 22-20 AWG; RT360 Series Contact; Size:16; male; 20÷22AWG; RT360; gold plated; crimped; tape Crimp pin, SP20M1F, Amphenol RT PIN 3K GOLD WIRE 20-22
SP16M1F
Amphenol Sine Systems Corp
CONTACT PIN CRIMP 16-18AWG GOLD Standard Circular Contacts Pin 3K Gold Flash Wire Range 16-18 CONTACT, PIN, S&F, SIZE 16, 16-18AWG Contact; Pin; Stamped; 3K Reel; Gold Flash; 18-16 AWG; RT360 Series Contact; Size:16; male; 16÷18AWG; RT360; gold plated; crimped; tape
SP24M1F
Amphenol Sine Systems Corp
CONTACT PIN CRIMP 24-26AWG GOLD Standard Circular Contacts Pin 3K Gold Flash Wire Range 24-26 CONTACT, PIN, S&F, SIZE 16, 24-26AWG Contact; Pin; Stamped; 3K Reel; Gold Flash; 26-24 AWG; RT360 Series Contact; Size:16; male; 24÷26AWG; RT360; gold plated; crimped; tape Crimp pin, SP24M1F, Amphenol
SP14M1F
Amphenol Sine Systems Corp
CONT PIN CRIMP 14AWG GOLD SZ 16 Standard Circular Contacts Pin 3K Gold Flash Wire Range 14 CONTACT, PIN, S&F, SIZE 16, 14AWG Contact; Pin; Stamped, ; 3K Reel; Gold Flash; 14 AWG; RT360 Series Contact; Size:16; male; 14AWG; RT360; gold plated; crimped; tape Crimp pin, SP14M1F, Amphenol
RT0014-12SNH
Amphenol Sine Systems Corp
CONN HSG RCPT 12POS WALL MT SKTS RECEPTACLE,PANEL,SIZE 14, 12WAY,SKT Conn; Circular; Receptacla; Box Mount; 12 Pin; Female; 16 AWG; RT360 Series Connector: circular; female; Series: RT360; Case: size 14; socket Square flange receptacle RT360 Poles=12 Female Housing size14, RT0014-12SNH, Amphenol
RT0714-12SNH
Amphenol Sine Systems Corp
CONN HSG RCPT 12POS JAM NUT SKTS RECEPT, JAM NUT, SIZE 14, 12WAY,SKT Conn; Circular; Receptacla; Jam Nut; 12Pin; Female; 16 AWG; RT360 Series Connector: circular; female; Series: RT360; Case: size 14; socket Jam nut receptacle RT360 Poles=12 Female Housing size14, RT0714-12SNH, Amphenol

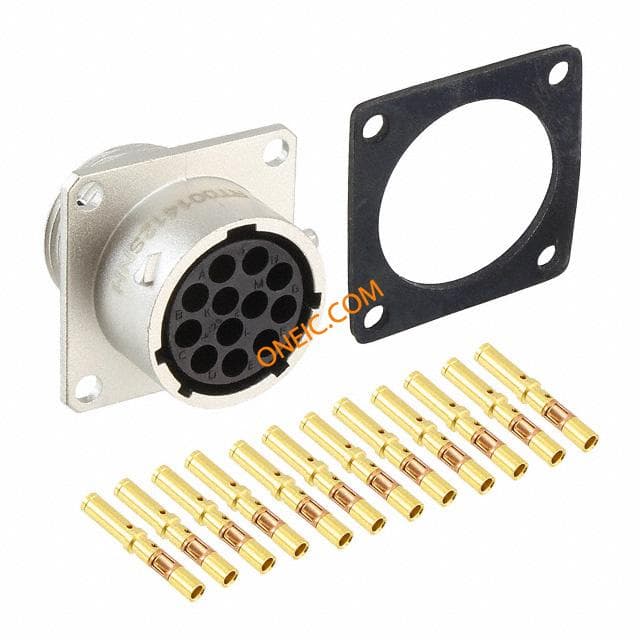

RT001412SNH-K
Amphenol Sine Systems Corp
CONN RCPT 12POS WALL MT SKTS KIT Standard Circular Connector Wall Mtg Recpt Sckt 16Awg 12 pin

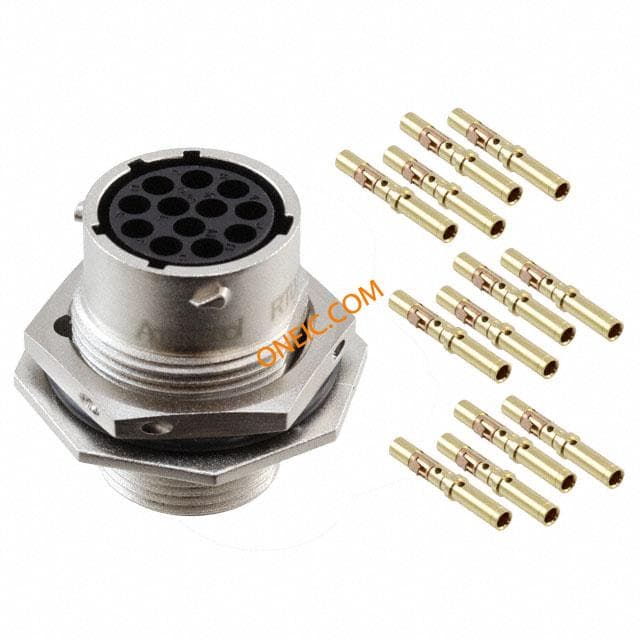

RT071412SNH-K
