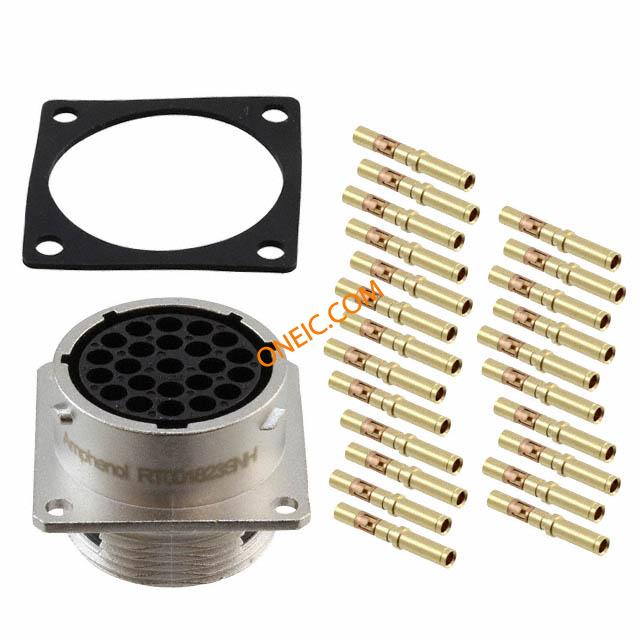

RT001823SNH-K
| Manufacturer | |
| Description | CONN RCPT 23POS WALL MT SKTS KIT Standard Circular Connector Wall Mtg Recpt Sckt 16Awg 23 pin |
| Category |
Business
| Other Names | 889-1278 | Standard Package | 5 |
Compliance
| RoHS | Lead free / RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 300VAC/DC | Current Rating (Max) | 13A |
Mechanical
| Packaging | Bulk | Wire Gauge | 16 |
| Orientation | N (Normal) | Shell Style | Wall Mount |
| Termination | Crimp | Mounting Type | Panel Mount, Flange |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Connector Style | Receptacle |
| 1st Contact Gender | Socket | Number of Contacts | 23 |
| Number of Positions | 23 | Shell Size - Insert | 18-23 |
| Shell Material, Finish | Zinc Die Cast, Nickel Plated | Contact Finish Thickness | Flash |
Product Info
| Product Type | Connector Kits | ||
Environmental
| Ingress Protection | IP67/68 - Dust Tight, Waterproof | Operating Temperature | -40°C ~ 105°C |
Documents & Media
Similar Parts
CA-4016-59
Amphenol Sine Systems Corp
CONN PLUG SEALING 16AWG Standard Circular Connector Sealing Plug 12AWG SEALING PLUG, RT360, 16AWG Connector accessories: sealing pin; Series: RT360; Size:16
RTFD18B
Amphenol Sine Systems Corp
GASKET PANEL SHELL SIZE 18 Standard Circular Connector Panel Gasket GASKET, PANEL, RT360, SIZE 18 Connector accessories: socket gasket; Series: RT360 Panel gasket 18, RTFD18B, Amphenol RT PANEL GASKET SHELL 18
RT018DCG
Amphenol Sine Systems Corp
CONN RCPT DUST CAP SIZE 18 Standard Circular Connector Recptle Dust Cap Shell Size 19 DUST CAP, RT360 RECEPT, SIZE 18 Connector accessories: protection cover; Series: RT360 Receptacle dust cap 18, RT018DCG, Amphenol
.jpg&w=3840&q=75)
RT0618-23PNH
Amphenol Sine Systems Corp
CONN HSG PLUG 23POS CABLE PINS PLUG, SIZE 18, 23WAY, PIN, IP67 Conn; Circular; Plug; 23 Pin; Male; 16 AWG; RT360 Series Connector: circular; male; Series: RT360; Case: size 18; plug; IP67 Cable plug RT360 Poles=23 Male Housing size18, RT0618-23PNH, Amphenol
RT061823PNH-K
Amphenol Sine Systems Corp
CONN PLUG 23POS CBLE PIN KIT Standard Circular Connector Plug Pin 16Awg 23 pin

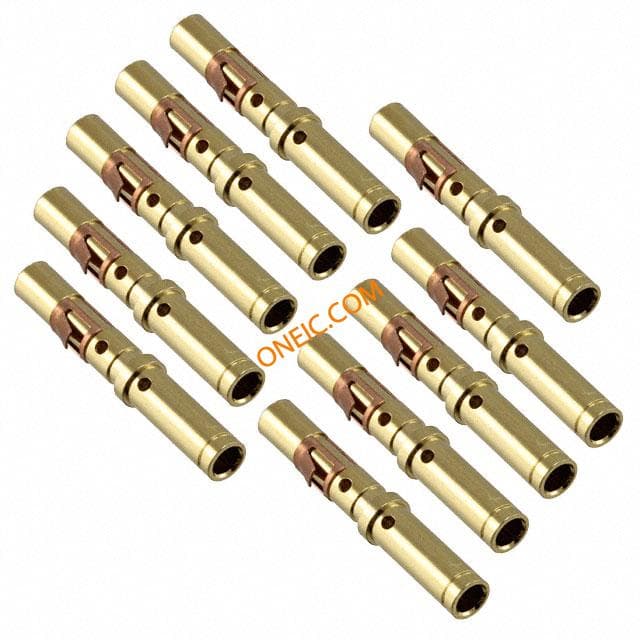

MS16M23S-10
Amphenol Sine Systems Corp
16AWG SOCKET CONTACT 10/BAG Standard Circular Contacts 16Awg Socket Contact 10 Piece Bag
