RT0018-32PNH
| Manufacturer | |
| Description | CONN HSG RCPT 32POS WALL MT PIN RECEPTACLE,PANEL,SIZE 18, 32WAY, PIN Square flange receptacle RT360 Poles=32 Male Housing size18, RT0018-32PNH, Amphenol |
| Category |
Business
| Standard Package | 50 | ||
Compliance
| Tariff No | 85369010 | ||
Mechanical
| Weight | 0.035 | Packaging | Bulk |
| Orientation | N (Normal) | Contact Size | 20 |
| Contact Type | Crimp | Mounting Type | Panel Mount, Flange |
| Connector Type | Receptacle for Male Contacts | Fastening Type | Bayonet Lock |
| Insertion Angle | :18-32 | Material - Body | :Zinc Alloy |
| 1st Contact Gender | :Pin | Number of Positions | 32 |
| Shell Size - Insert | 18-32 | Shell Material, Finish | Zinc Die Cast, Nickel Plated |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Note | Contacts Not Provided | Gender | :Socket |
| Series | :RT360 | ||
Environmental
| Ingress Protection | IP67/68 - Dust Tight, Waterproof | ||
Similar Parts

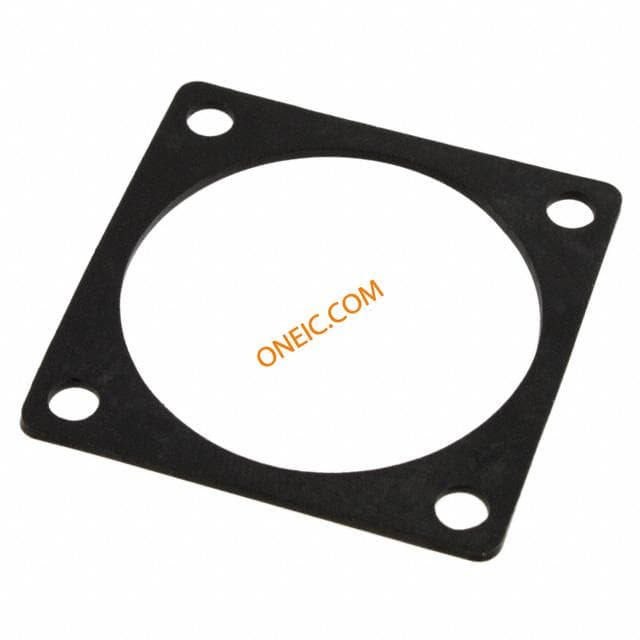

RTFD18B
Amphenol Sine Systems Corp
GASKET PANEL SHELL SIZE 18 Standard Circular Connector Panel Gasket GASKET, PANEL, RT360, SIZE 18 Connector accessories: socket gasket; Series: RT360 Panel gasket 18, RTFD18B, Amphenol RT PANEL GASKET SHELL 18

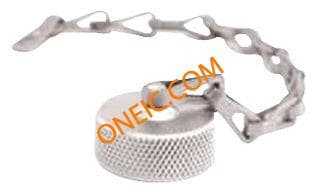

RT018DCG
Amphenol Sine Systems Corp
CONN RCPT DUST CAP SIZE 18 Standard Circular Connector Recptle Dust Cap Shell Size 19 DUST CAP, RT360 RECEPT, SIZE 18 Connector accessories: protection cover; Series: RT360 Receptacle dust cap 18, RT018DCG, Amphenol
SP20W1F
Amphenol Sine Systems Corp
CONTACT PIN CRIMP 20-22AWG GOLD Standard Circular Contacts Pin 3K Gold Flash Wire Range 20-22 CONTACT, PIN, S&F, SIZE 20, 20-22AWG Contact; Pin; Stamped; 3K Reel; Gold Flash; 22-20 AWG; RT360 Series Contact; Size:20; male; 20÷22AWG; RT360; gold plated; crimped; tape RT PIN 3K GOLD WIRE RANGE 20-22
SP28W1F
Amphenol Sine Systems Corp
CONTACT PIN CRIMP 28-30AWG GOLD Standard Circular Contacts Pin 3K Gold Flash Wire Range 30-28 CONTACT, PIN, S&F, SIZE 20, 28-30AWG Contact; Pin; Stamped; 3K Reel; Gold Flash; 30-28 AWG; RT360 Series Contact; Size:20; male; 28÷30AWG; RT360; gold plated; crimped; tape Crimp pin, SP28W1F, Amphenol
MP20W23F
Amphenol Sine Systems Corp
CONTACT PIN CRIMP 20-22AWG GOLD Standard Circular Contacts Mach Pin Gld Flash Wire Range 20-22 Contact; Pin; Machined; Gold Flash; 22-20 AWG; RT360 Series Contact; Size:20; male; 20÷22AWG; RT360; gold flash; crimped; 7.5A
MP28W23F
Amphenol Sine Systems Corp
CONTACT PIN CRIMP 28-30AWG GOLD Contact; Pin; Machined; Gold Flash; 30-28 AWG; RT360 Series Contact; Size:20; male; 28÷30AWG; RT360; gold flash; crimped; 7.5A
MP20W23G30
Amphenol Sine Systems Corp
CONTACT PIN CRIMP 20-22AWG GOLD Contact; Size:20; male; 20÷22AWG; RT360; gold plated; crimped; 7.5A
MP28W23G30
Amphenol Sine Systems Corp
CONTACT PIN CRIMP 28-30AWG GOLD Contact; Size:20; male; 28÷30AWG; RT360; gold plated; crimped; 7.5A
RT0618-32SNH
Amphenol Sine Systems Corp
CONN HSG PLUG 32POS CABLE SKTS
