RT0018-23SNH
| Manufacturer | |
| Description | CONN HSG RCPT 23POS WALL MT SKTS RECEPTACLE,PANEL,SIZE 18, 23WAY,SKT Conn; Circular; Receptacla; Box Mount; 23 Pin; Female; 16 AWG; RT360 Series Connector: circular; female; Series: RT360; Case: size 18; socket Square flange receptacle RT360 Poles=23 Female Housing size18, RT0018-23SNH, Amphenol |
| Category |
Business
| Standard Package | 50 | ||
Compliance
| Standards | UL E63093 | Tariff No | 85369010 |
Electrical
| Connector - Voltage Input | for size 16 terminals | ||
Mechanical
| Weight | 0.035 | Packaging | Bulk |
| Orientation | N (Normal) | Contact Size | 16 |
| Contact Type | Crimp | Body Material | aluminium, zinc |
| Mounting Type | Panel Mount, Flange | Connector Type | Receptacle for Female Contacts |
| Fastening Type | Bayonet Lock | Mounting Style | flange (4 holes), for panel mounting |
| Package / Case | size 18 | Plating - Body | nickel |
| Insertion Angle | :18-23 | Locking Feature | external bayonet |
| Material - Body | :Zinc Alloy | Package Quantity | 25 |
| Connector - Cable | socket | 1st Contact Gender | :Socket |
| Number of Positions | 23 | Shell Size - Insert | 18-23 |
| Shell Material, Finish | Zinc Die Cast, Nickel Plated | 1st Connector Mounting Type | :Panel |
Product Info
| Spg | 25 | Note | Contacts Not Provided |
| Gender | :Socket | Series | :RT360 |
| Adapter Series | RT360 | Number of Units | 1 |
Environmental
| Ingress Protection | IP67/68 - Dust Tight, Waterproof | Operating Temperature | -40...105°C |
Similar Parts
CA-4016-59
Amphenol Sine Systems Corp
CONN PLUG SEALING 16AWG Standard Circular Connector Sealing Plug 12AWG SEALING PLUG, RT360, 16AWG Connector accessories: sealing pin; Series: RT360; Size:16
RTFD18B
Amphenol Sine Systems Corp
GASKET PANEL SHELL SIZE 18 Standard Circular Connector Panel Gasket GASKET, PANEL, RT360, SIZE 18 Connector accessories: socket gasket; Series: RT360 Panel gasket 18, RTFD18B, Amphenol RT PANEL GASKET SHELL 18
RT018DCG
Amphenol Sine Systems Corp
CONN RCPT DUST CAP SIZE 18 Standard Circular Connector Recptle Dust Cap Shell Size 19 DUST CAP, RT360 RECEPT, SIZE 18 Connector accessories: protection cover; Series: RT360 Receptacle dust cap 18, RT018DCG, Amphenol
SS20M1F
Amphenol Sine Systems Corp
CONTACT SKT CRIMP 20-22AWG GOLD Standard Circular Contacts Skt 3K Gold Flash Wire Range 20-22 CONTACT, SKT, S&F, SIZE 16, 20-22AWG Contact; Socket; Stamped, ; 3K Reel, Gold Flash; 22-20 AWG; RT360 Series Contact; Size:16; female; 20÷22AWG; RT360; gold plated; crimped RT SOCKET GOLD WIRE RANGE 20-22
SS16M1F
Amphenol Sine Systems Corp
CONTACT SKT CRIMP 16-18AWG GOLD Standard Circular Contacts Skt 3K Gold Flash Wire Range 16-18 CONTACT, SKT, S&F, SIZE 16, 16-18AWG Contact; Socket; Stamped; 3K Reel, GoldFlash; 18-16 AWG; RT360 Series Contact; Size:16; female; 16÷18AWG; RT360; gold plated; crimped
SS24M1F
Amphenol Sine Systems Corp
CONTACT SKT CRIMP 24-26AWG GOLD Standard Circular Contacts Skt 3K Gold Flash Wire Range 24-26 CONTACT, SKT, S&F, SIZE 16, 24-26AWG Contact; Socket; Stamped; 3K Reel; GoldFlash; 26-24 AWG; RT360 Series Contact; Size:16; female; 24÷26AWG; RT360; gold plated; crimped Crimp socket, SS24M1F, Amphenol
SS14M1F
Amphenol Sine Systems Corp
CONTACT SKT CRIMP 14AWG GOLD Standard Circular Contacts Skt 3K Gold Flash Wire Range 14 CONTACT, SKT, S&F, SIZE 16, 14AWG Contact; Socket; Stamped; 3K Reel; GoldFlash; 14 AWG; RT360 Series Contact; Size:16; female; 14AWG; RT360; gold plated; crimped; tape Crimp socket, SS14M1F, Amphenol
.jpg&w=3840&q=75)
RT0618-23PNH
Amphenol Sine Systems Corp
CONN HSG PLUG 23POS CABLE PINS PLUG, SIZE 18, 23WAY, PIN, IP67 Conn; Circular; Plug; 23 Pin; Male; 16 AWG; RT360 Series Connector: circular; male; Series: RT360; Case: size 18; plug; IP67 Cable plug RT360 Poles=23 Male Housing size18, RT0618-23PNH, Amphenol

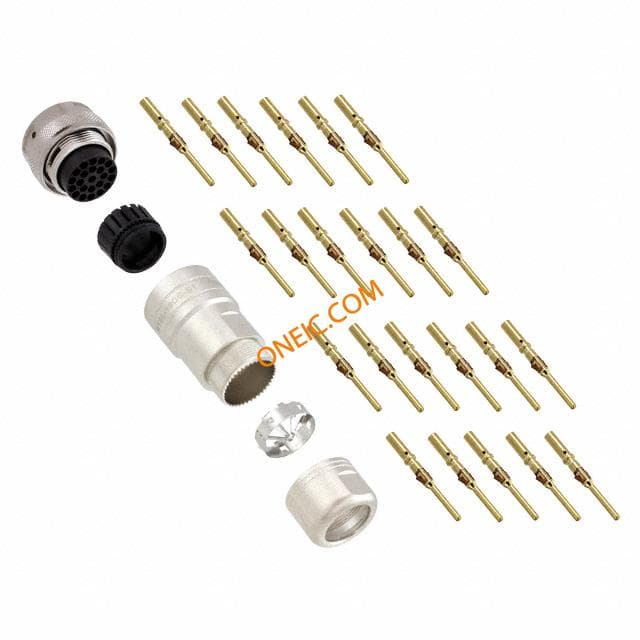

RT061823PNH-K
