RT0018-23PNH
| Manufacturer | |
| Description | CONN HSG RCPT 23POS WALL MT PINS RECEPTACLE,PANEL,SIZE 18, 23WAY, PIN Conn; Circular; Receptacla; Box Mount; 23 Pin; Male; 16 AWG; RT360 Series Connector: circular; male; Series: RT360; Case: size 18; socket Square flange receptacle RT360 Poles=23 Male Housing size18, RT0018-23PNH, Amphenol |
| Category |
Business
| Standard Package | 50 | ||
Compliance
| Standards | UL E63093 | Tariff No | 85369010 |
Electrical
| Connector - Voltage Input | for size 16 terminals | ||
Mechanical
| Weight | 0.035 | Packaging | Bulk |
| Orientation | N (Normal) | Contact Size | 16 |
| Contact Type | Crimp | Body Material | aluminium, zinc |
| Mounting Type | Panel Mount, Flange | Connector Type | Receptacle for Male Contacts |
| Fastening Type | Bayonet Lock | Mounting Style | flange (4 holes), for panel mounting |
| Package / Case | size 18 | Plating - Body | nickel |
| Insertion Angle | :18-23 | Locking Feature | external bayonet |
| Material - Body | :Zinc Alloy | Package Quantity | 25 |
| Connector - Cable | socket | 1st Contact Gender | :Pin |
| Number of Positions | 23 | Shell Size - Insert | 18-23 |
| Shell Material, Finish | Zinc Die Cast, Nickel Plated | 1st Connector Mounting Type | :Panel |
Product Info
| Spg | 25 | Note | Contacts Not Provided |
| Gender | :Socket | Series | :RT360 |
| Adapter Series | RT360 | Number of Units | 1 |
Environmental
| Ingress Protection | IP67/68 - Dust Tight, Waterproof | Operating Temperature | -40...105°C |
Similar Parts

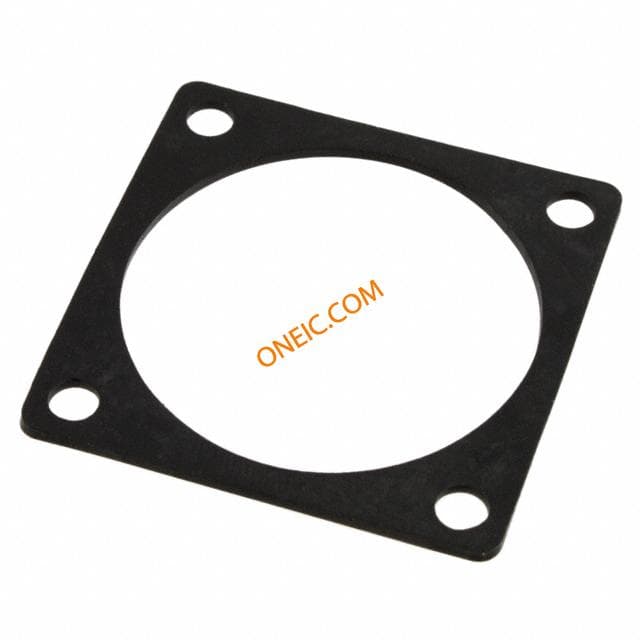

RTFD18B
Amphenol Sine Systems Corp
GASKET PANEL SHELL SIZE 18 Standard Circular Connector Panel Gasket GASKET, PANEL, RT360, SIZE 18 Connector accessories: socket gasket; Series: RT360 Panel gasket 18, RTFD18B, Amphenol RT PANEL GASKET SHELL 18
RT018DCG
Amphenol Sine Systems Corp
CONN RCPT DUST CAP SIZE 18 Standard Circular Connector Recptle Dust Cap Shell Size 19 DUST CAP, RT360 RECEPT, SIZE 18 Connector accessories: protection cover; Series: RT360 Receptacle dust cap 18, RT018DCG, Amphenol
SP20M1F
Amphenol Sine Systems Corp
CONTACT PIN CRIMP 20-22AWG GOLD Standard Circular Contacts Pin 3K Gold Flash Wire Range 20-22 CONTACT, PIN, SIZE 16, 22-20 AWG, CRIMP Contact; Pin; Stamped; 3K Reel; Gold Flash; 22-20 AWG; RT360 Series Contact; Size:16; male; 20÷22AWG; RT360; gold plated; crimped; tape Crimp pin, SP20M1F, Amphenol RT PIN 3K GOLD WIRE 20-22
SP16M1F
Amphenol Sine Systems Corp
CONTACT PIN CRIMP 16-18AWG GOLD Standard Circular Contacts Pin 3K Gold Flash Wire Range 16-18 CONTACT, PIN, S&F, SIZE 16, 16-18AWG Contact; Pin; Stamped; 3K Reel; Gold Flash; 18-16 AWG; RT360 Series Contact; Size:16; male; 16÷18AWG; RT360; gold plated; crimped; tape
SP24M1F
Amphenol Sine Systems Corp
CONTACT PIN CRIMP 24-26AWG GOLD Standard Circular Contacts Pin 3K Gold Flash Wire Range 24-26 CONTACT, PIN, S&F, SIZE 16, 24-26AWG Contact; Pin; Stamped; 3K Reel; Gold Flash; 26-24 AWG; RT360 Series Contact; Size:16; male; 24÷26AWG; RT360; gold plated; crimped; tape Crimp pin, SP24M1F, Amphenol
SP14M1F
Amphenol Sine Systems Corp
CONT PIN CRIMP 14AWG GOLD SZ 16 Standard Circular Contacts Pin 3K Gold Flash Wire Range 14 CONTACT, PIN, S&F, SIZE 16, 14AWG Contact; Pin; Stamped, ; 3K Reel; Gold Flash; 14 AWG; RT360 Series Contact; Size:16; male; 14AWG; RT360; gold plated; crimped; tape Crimp pin, SP14M1F, Amphenol

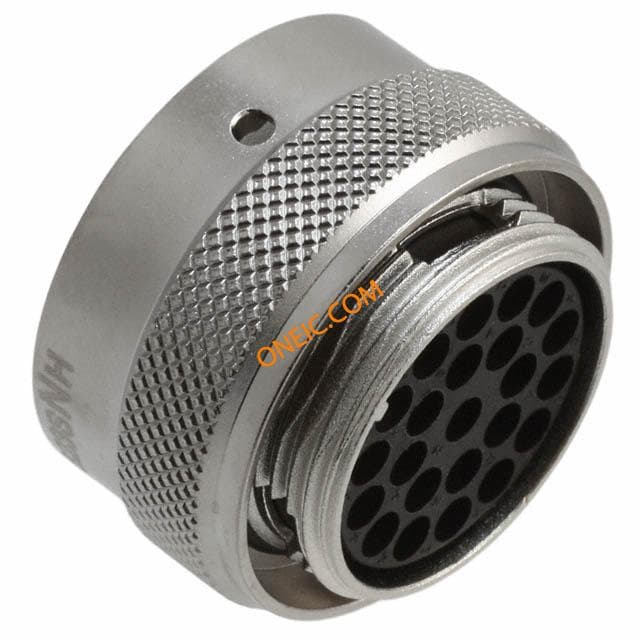

RT0618-23SNH
Amphenol Sine Systems Corp
CONN HSG PLUG 23POS CABLE SKTS PLUG, SIZE 18, 23WAY, SKT, IP67 Conn; Circular; Plug; 23 Pin; Female; 16 AWG; RT360 Series Connector: circular; female; Series: RT360; Case: size 18; plug Cable plug RT360 Poles=23 Female Housing size18, RT0618-23SNH, Amphenol

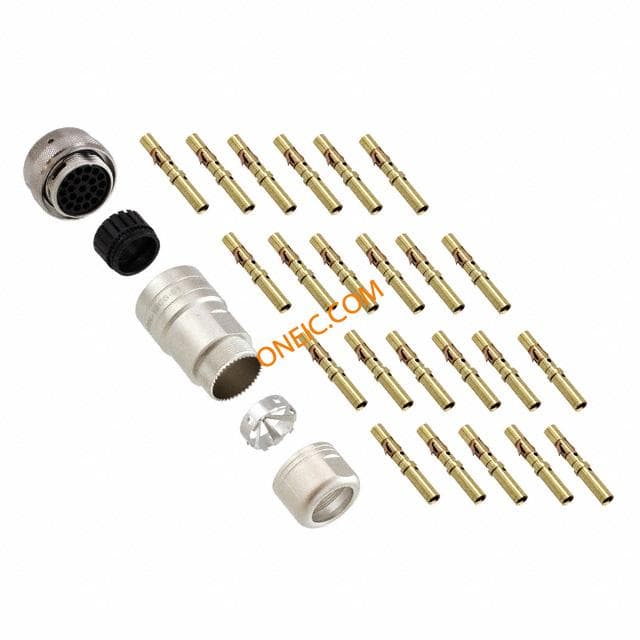

RT061823SNH-K
Amphenol Sine Systems Corp
CONN PLUG 23POS CBLE SKT KIT Standard Circular Connector Plug Socket 16Awg 23 pin
