RT0016-26PNH
| Manufacturer | |
| Description | CONN HSG RCPT 26POS WALL MT PINS Square flange receptacle RT360 Poles=26 Male Housing size16, RT0016-26PNH, Amphenol |
| Category |
Business
| Standard Package | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Voltage Rating | 150 | Number of Poles | 26 |
| Current Rating (Max) | 5 A | Voltage - Protection Level (VP) (2416) | IP 67 |
Mechanical
| Packaging | Bulk | Shell Size | 16 |
| Orientation | N (Normal) | Contact Size | 20 |
| Contact Type | Crimp | Mounting Type | Panel Mount, Flange |
| Connector Type | Receptacle for Male Contacts | Fastening Type | Bayonet Lock |
| Connector Style | with flange | Locking Feature | Bayonet locking |
| Housing Material | Zinc Alloy | Number of Contacts | Size 20 |
| Number of Positions | 26 | Shell Size - Insert | 16-26 |
| 1st Connector Gender | Male | Shell Material, Finish | Zinc Die Cast, Nickel Plated |
Product Info
| Note | Contacts Not Provided | Series | RT360 |
Environmental
| Ingress Protection | IP67/68 - Dust Tight, Waterproof | Operating Temperature | -40...+105 °C |
Similar Parts

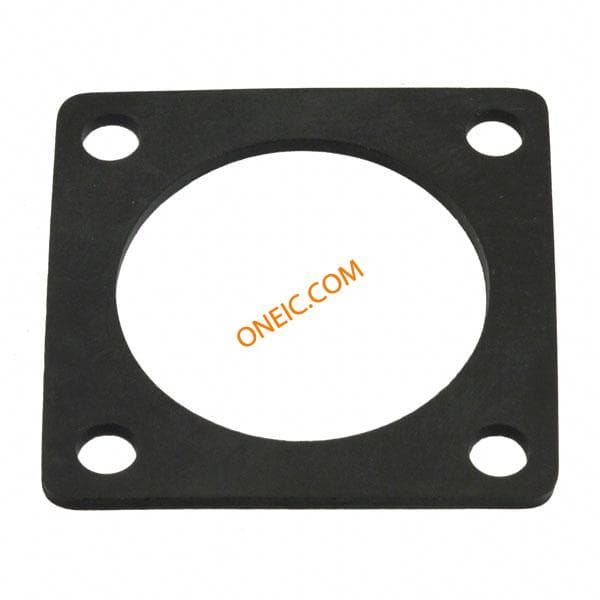

RTFD16B
Amphenol Sine Systems Corp
GASKET PANEL SHELL SIZE 16 Standard Circular Connector Panel Gasket Shell Size 16 GASKET, PANEL, RT360, SIZE 16 Connector accessories: socket gasket; Series: RT360 Panel gasket 16, RTFD16B, Amphenol RT PANEL GASKET SHELL 16
RT016DCG
Amphenol Sine Systems Corp
CONN RCPT DUST CAP SIZE 16 Standard Circular Connector Recptle Dust Cap Shell Size 18 DUST CAP, RT360 RECEPT, SIZE 16 Connector accessories: protection cover; Series: RT360 Receptacle dust cap 16, RT016DCG, Amphenol
SP20W1F
Amphenol Sine Systems Corp
CONTACT PIN CRIMP 20-22AWG GOLD Standard Circular Contacts Pin 3K Gold Flash Wire Range 20-22 CONTACT, PIN, S&F, SIZE 20, 20-22AWG Contact; Pin; Stamped; 3K Reel; Gold Flash; 22-20 AWG; RT360 Series Contact; Size:20; male; 20÷22AWG; RT360; gold plated; crimped; tape RT PIN 3K GOLD WIRE RANGE 20-22
SP28W1F
Amphenol Sine Systems Corp
CONTACT PIN CRIMP 28-30AWG GOLD Standard Circular Contacts Pin 3K Gold Flash Wire Range 30-28 CONTACT, PIN, S&F, SIZE 20, 28-30AWG Contact; Pin; Stamped; 3K Reel; Gold Flash; 30-28 AWG; RT360 Series Contact; Size:20; male; 28÷30AWG; RT360; gold plated; crimped; tape Crimp pin, SP28W1F, Amphenol
MP20W23F
Amphenol Sine Systems Corp
CONTACT PIN CRIMP 20-22AWG GOLD Standard Circular Contacts Mach Pin Gld Flash Wire Range 20-22 Contact; Pin; Machined; Gold Flash; 22-20 AWG; RT360 Series Contact; Size:20; male; 20÷22AWG; RT360; gold flash; crimped; 7.5A
MP28W23F
Amphenol Sine Systems Corp
CONTACT PIN CRIMP 28-30AWG GOLD Contact; Pin; Machined; Gold Flash; 30-28 AWG; RT360 Series Contact; Size:20; male; 28÷30AWG; RT360; gold flash; crimped; 7.5A
MP20W23G30
Amphenol Sine Systems Corp
CONTACT PIN CRIMP 20-22AWG GOLD Contact; Size:20; male; 20÷22AWG; RT360; gold plated; crimped; 7.5A
MP28W23G30
Amphenol Sine Systems Corp
CONTACT PIN CRIMP 28-30AWG GOLD Contact; Size:20; male; 28÷30AWG; RT360; gold plated; crimped; 7.5A

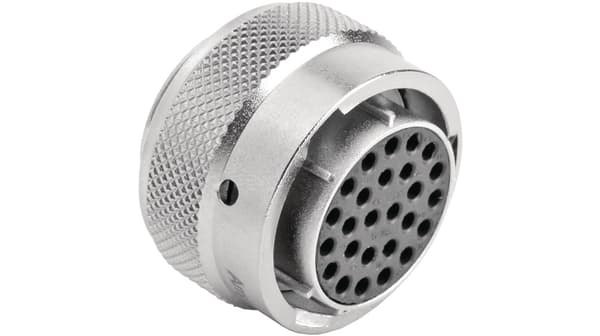

RT0616-26SNH
