79875
| Manufacturer | |
| Description | RF コネクタ STRAIGHT CLAMP PLUG connector;rf coaxial;tnc str plug;clamp/solder;rg55;58;141;142;223;400;50 ohm RF Connectors / Coaxial Connectors STRAIGHT CLAMP PLUG |
| Category |
Business
| Product | Connectors | Part # Aliases | 000-79875 713-8650 77B6498 |
| Product Category | RF Connectors / Coaxial Connectors | ||
Compliance
| RoHS | RoHS Compliant By Exemption | ||
Electrical
| Impedance | 50 Ohms | Coupling Factor | Threaded |
| Frequency - Max | 4 GHz | ||
Mechanical
| Weight | 0.480008 oz | Cable Type | RG-55, RG-58, RG-141, RG-142, RG-223, RG-400 |
| Body Finish | Nickel | Orientation | Straight |
| Body Material | Brass | Contact Finish | Silver |
| Contact Material | Brass | Termination Style | Cable - Clamp |
| Contact Termination | Solder | Supplier Device Package | Straight |
Product Info
| Gender | Plug | Polarity | Standard |
| RF Family/Standard | TNC | ||
Environmental
| Mating Cycles | 500 | Operating Temperature | - 65 C to + 165 C |
Documents & Media
Similar Parts
8240 010U1000
Belden Wire & Cable
Coaxial Cables 20AWG 1C SHIELD 1000ft BOX BLACK CABLE, COAXIAL, RG-58A/U, 1000FT, BLACK RG-58A/U Type Coax cable, 20 AWG solid .033" bare copper conductor, polyethylene insulation, tinned copper braid shield, 1000’ boxes, PVC jacket, 30V, 80C
8240 010U500
Belden Wire & Cable
Coaxial Cables 20AWG 1C SHIELD 500ft BOX BLACK Coax - RG-58A/U type, 20 AWG solid .033" bare copper conductor, polyethylene insulation, 500’ boxes, tinned copper braid shield, PVC jacket
9201 010U500
Belden Wire & Cable
Coaxial Cables 20AWG 1C SHIELD 500ft BOX BLACK COAXIAL CABLE, RG-58/U, 500FT, BLACK Coax - RG-58/U Type 20 AWGPE BRD PVCRG58/U Type Black
8259 010U500
Belden Wire & Cable
Coaxial Cables 20AWG 1C SHIELD 500ft BOX BLACK COAXIAL CABLE, RG-58A/U, 500FT, BLACK Coax - RG-58A/U Type RG-58A/U 50 OHMS Coax Black
8259 010U1000
Belden Wire & Cable
Coaxial Cables 20AWG 1C SHIELD 1000ft BOX BLACK COAXIAL CABLE, RG-58A/U, 1000FT, BLACK Coax - RG-58A/U Type RG-58A/U 50 OHMS Coax Black

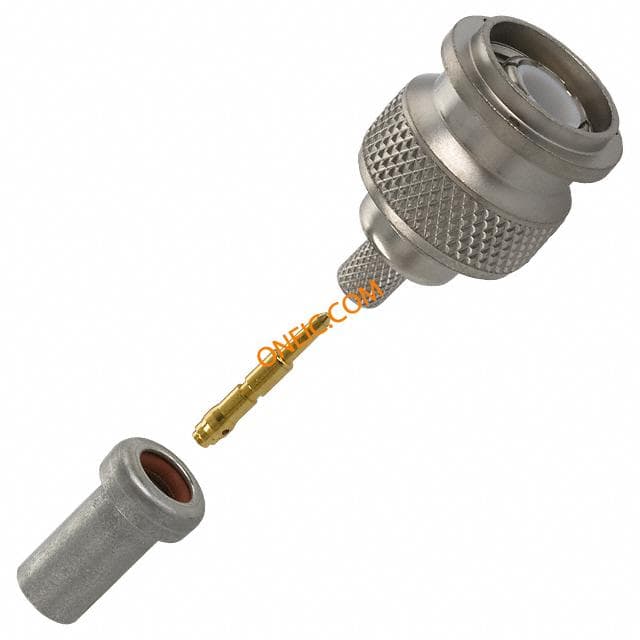

5225555-2
