31-2221
| Manufacturer | |
| Description | RF Connectors FRT MNT RECEPT UG-1094A/U CONN BNC JACK STR 50 OHM SOLDER Conn BNC RCP 0Hz to 4GHz 50Ohm Solder Cup ST Panel Mount Silver RF/COAXIAL BNC BHD RCPT STR 50 OHM SOLDER |
| Category |
Business
| Standard Package | 1 | ||
Compliance
| Tariff No | 85369010 | ||
Electrical
| Impedance | 50 Ohm | Voltage Rating | 500V |
| Frequency - Max | 4GHz | ||
Mechanical
| Weight | 0.009 | Packaging | Bulk |
| Cable Type | :- | Body Finish | Nickel |
| Weight (g): | 9.20000 | Body Material | Brass |
| Housing Color | Silver | Mounting Type | Panel Mount, Bulkhead - Rear Side Nut |
| Connector Type | Jack, Female Socket | Contact Finish | :Silver |
| Fastening Type | Bayonet Lock | Connector Style | BNC |
| Contact Material | :- | Shield Termination | Solder |
| Contact Termination | Solder Cup | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Center Contact Plating | Silver | Center Contact Material | Phosphor Bronze |
| Supplier Device Package | :Straight Bulkhead Jack | ||
Product Info
| Series | :- | Features | Extended Insulation |
Environmental
| Operating Temperature | -65°C ~ 165°C | ||
Documents & Media
Similar Parts
000-5275
amphenol
Connector Accessories BNC 51Ohm Male Shorting Cap and Chain Nickel CONN PLUG BNC SHORTING W/O CHAIN Coaxial/RF; Cap-NoChain; BNC; Shorting; Male; Nickel; forJacksandRecep; Straight; 75Ohms
031-6
amphenol
Connector Accessories BNC 50Ohm Male Cap and Chain Connector Accessories BNC 51Ohm Male Shorting Cap and Chain Nickel CONN BNC MALE CAP & CHAIN Coaxial/RF; Cap-w/Chain; BNC; Protective; Male; Nickel; forJacksandRecep; Str.; 75Ohms
31-759
amphenol
Connector Accessories Shield Grounding Lug Nickel Finish BNC SHIELD GROUNDING LUG connector accessory;rf coaxial;bnc grounding lug;for front mount blkhd recept RF Connector Accessories GROUNDING LUG Connector Accessories Grounding Lug

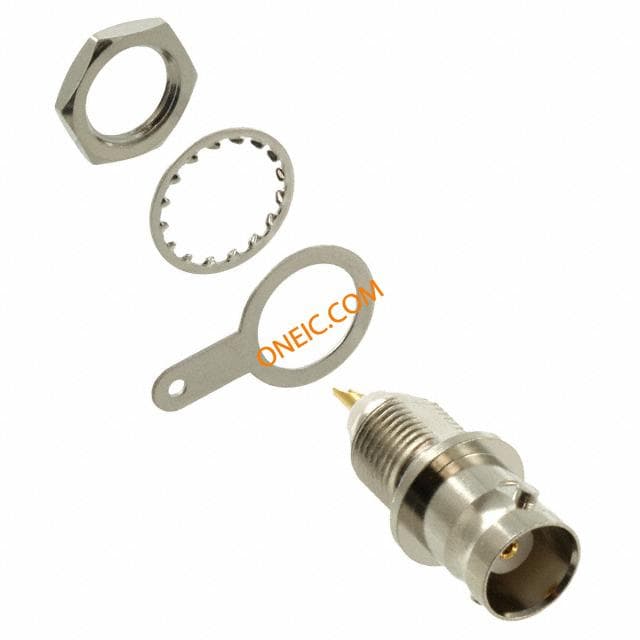

112426
