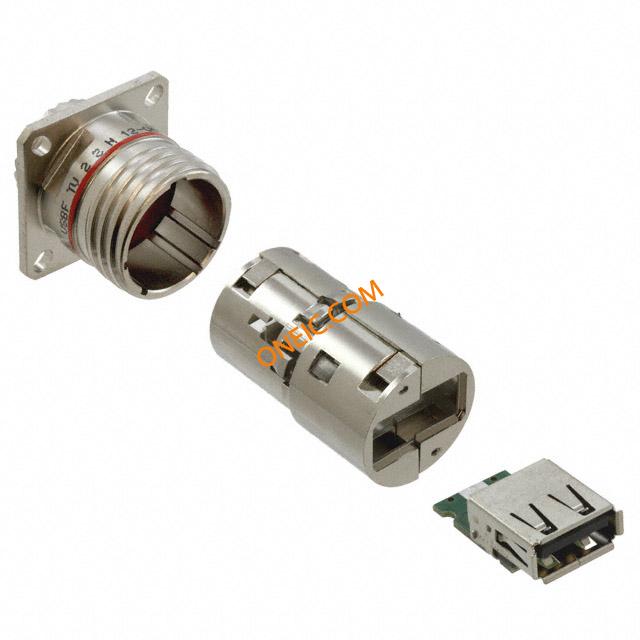

USBFTV22N
| Manufacturer | |
| Description | Conn USB RCP 4 POS Solder ST Panel Mount 4 Terminal 1 Port USB Connectors 4-Hole Solder Recept Sq Flange Nickel USB SQUARE RECEPTACLE _NO ROHS CONN USB-A RCPT SQ FLANGE SOLDER connector;metal circular;square flange receptacle;pcb;usb 2.0 type a;nickel fin connector, metal circular, square flange receptacle, pcb, usb 2.0 type a, nickel fin |
| Category |
Business
| MOQ | 10 | Product | USB Type A Connectors |
| Unit Pack | 1 | Other Names | APC1104 |
| Part # Aliases | 20J4060 308-0065 | Product Category | USB Connectors |
| Standard Package | Bulk | ||
Compliance
| RoHS | RoHS Compliant | Automotive | NO |
| Leadfree Defin | Leaded | Material Flammability Rating | UL94-V0 |
Electrical
| Voltage - Supply | USB | ||
Mechanical
| Color | Nickel | Depth | 30.96 mm |
| Height | 30.96 mm | Shell Size | 2 |
| Termination | Solder | Weight (g): | 22.00000 |
| Mounting Type | Panel Mount | Angle of Throw | Straight |
| Connector Type | USB Type A Square Flange Receptacle | Housing Finish | Nickel |
| Mounting Style | Panel | Package / Case | Metal |
| Connector Usage | Threaded | Panel Thickness | 0.031 " |
| Housing Material | Metal | Length - Overall | 31.41 mm |
| Primary Material | Ethernet | Termination Style | Solder |
| Number of Contacts | 1 | Mounting Hole Diameter | 0.128 " |
| Contact Layout, Typical | RECEPTACLE | Contact Material - Plating | -55 TO 125 |
Product Info
| Type | USB | Gender | RCP |
| Features | Sealed against fluids and dusts, Shock, Vibration and Traction resistant | Matchcode | USBFTV22N |
| Specifications | USB 2.0 | Number of Ports | 1 |
| Standard Leadtime | 10 weeks | Application Specifics | Commercial |
Environmental
| Seal Rating | IP 67 | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature | SCREW°C | Operating Temperature - Junction | 85C |
