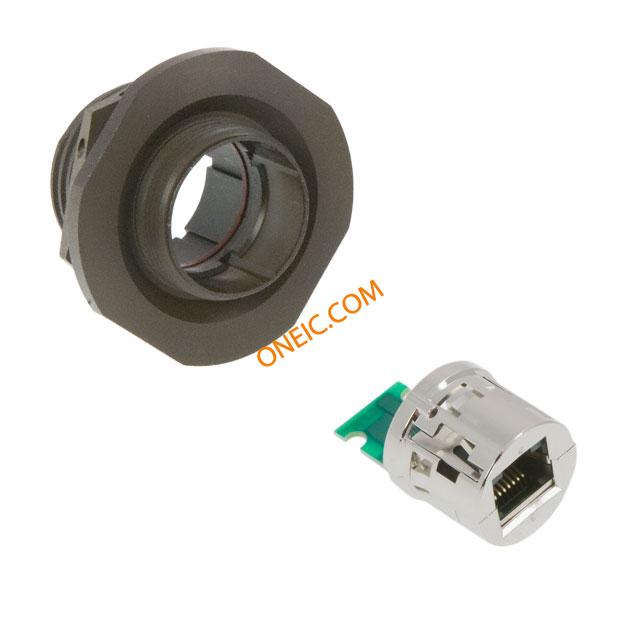

RJFTV72G00
| Manufacturer | |
| Description | Cable Assembly Cord Set 8 POS RJ-45 to 8 POS RJ-45 RCP-PL Solder-Crimp CONN MOD JACK 8P8C Modular Connectors / Ethernet Connectors RJFTV JAM NUT RECPT SOLDER OLIVE RJF TV FIELD THREADED JAM NUT RECEPT W/PCB 8 TINED HOLES GREEN |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 20J3994 | Product Category | Modular Connectors / Ethernet Connectors |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| LED | Does Not Contain LED | ||
Mechanical
| Color | Olive Drab | LED Color | Does Not Contain LED |
| Packaging | Bulk | Shielding | Unshielded |
| Cable Type | Cord Set | Jaw Opening | User Selectable |
| Orientation | Straight | Termination | Solder-Crimp |
| Weight (g): | 41.20000 | Mounting Type | Panel Mount, Bulkhead |
| Tab Direction | User Selectable | Connector Type | 8POS RJ-45 to 8POS RJ-45 |
| Mounting Style | Panel | Number of Rows | 1 |
| Termination Style | Solder Terminal | Number of Contacts | 8p8c (RJ45, Ethernet) |
Product Info
| Grade | Cat5e | Gender | RCP-PL |
| Series | RJFTV | Features | Circular Threaded Coupling |
| USOC Codes | RJ45 | Number of Ports | 1 |
| Output Configuration | Panel Mount, Bulkhead | Performance Category | Cat 5e, Class D |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) | ||
Environmental
| Ratings | Cat5e | Seal Rating | IP 68 |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | -40°C ~ 85°C |
