RJFTV21N
| Manufacturer | |
| Description | Conn RJ-45 RCP 8 POS ST Panel Mount 8 Terminal 1 Port Cat 5e COUPLER MODULAR 8POS-8POS Square flange receptacle,RJ45 female,Ni Modular Connectors / Ethernet Connectors Female RJ45 Nickel Sq Flange Receptacle SEALED ETHERNET CONNECTOR connector, metal circular, panel mount receptacle, rj45 ethernet, nickel finish Amphenol RJF 系列 直 母 RJ45 连接器 , Cat5e, 屏蔽, 面板安装型 |
| Category |
Business
| Other Names | APC1076 | Part # Aliases | 308-0045 36K2893 |
| Product Category | Modular Connectors / Ethernet Connectors | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366910 |
| Material Flammability Rating | UL 94 V-0 | ||
Mechanical
| Color | Black | Depth | 36.53mm |
| Height | 36.53 mm | Length | 43.1mm |
| Weight | 0.036 | Shielding | Unshielded |
| Orientation | Straight | Weight (g): | 36.00000 |
| Mounting Type | Panel Mount | Connector Type | :Ethernet |
| Contact Finish | Nickel | Mounting Style | Panel |
| Contact Material | :- | Length - Overall | 43.1 mm |
| Number of Contacts | 8 POS | Contact Termination | :- |
| Shell Material, Finish | Aluminum, Nickel Plated | 1st Connector Mounting Type | :Panel |
Product Info
| Type | RJ-45 | Gender | RCP |
| Series | RJFTV | Features | Circular Bayonet Coupling |
| USOC Codes | RJ45 | Category Number | Cat 5e |
| Number of Ports | 1 | RF Family/Standard | RJFTV |
| Convert To (Adapter End) | Jack, 8p8c (RJ45) | Convert From (Adapter End) | Jack, 8p8c (RJ45) |
| Number of Positions Loaded | 8 | ||
Environmental
| Ratings | Cat5e | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
Similar Parts

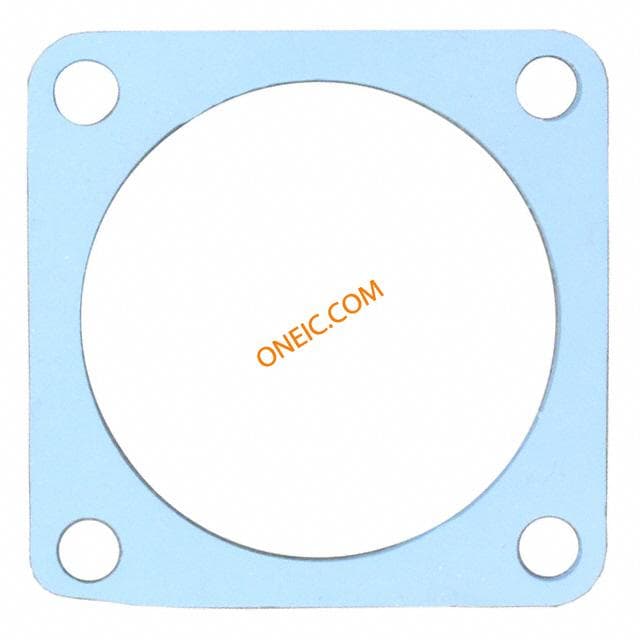

JE19
amphenol pcd
GASKET FOR RJFTV SERIES NIOBIUM OXIDE SMT CONN ACCY GASKET Modular Connectors / Ethernet Connectors RJ FIELD TV GASKET PM RECPT GASKET, PANEL ENGINEERING MATERIALS, GASKET connector accessory, rj field tv, panel gasket for square flange receptacle

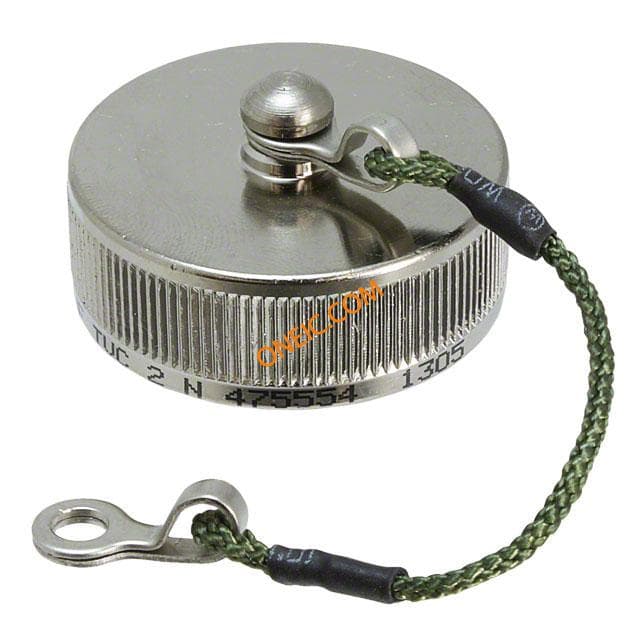

RJFTVC2N
amphenol pcd
Connector Accessories Metallic Cap Square Flange Receptacle Nickel CONN ACCY CAP Cap for Square flange recept,nickel Modular Connectors / Ethernet Connectors Sq Flange Recpt Cap Nickel CONNECTORS ACCESSORIES connector accessory, rj field tv, cap forsquare flange receptacle, nickel finish
RJFTVC2G
amphenol pcd
Connector Accessories Metallic Cap Square Flange Receptacle Olive Drab Cadmium CONN ACCY CAP OLIVE Modular Connectors / Ethernet Connectors Sq Flange Recpt Cap Olive Drab connector accessory, rj field tv, cap forsquare flange receptacle, green finish
