RJF7SA1G
| Manufacturer | |
| Description | Conn RJ-45 RCP 8 POS ST Jam Nut 8 Terminal 1 Port Cat 5e COUPLER MODULAR 8POS-8POS connector;metal circ;jam nut recept;rj45 to rj45;transversal seal;green finish Modular Connectors / Ethernet Connectors RJ SEALED JAM NUT R RJ45 CODE A OLIVE connector, metal circ, jam nut recept, rj45 to rj45, transversal seal, green finish |
| Category |
Business
| Part # Aliases | 20J4024 308-0124 | Product Category | Modular Connectors / Ethernet Connectors |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Mechanical
| Color | Olive Drab | Shielding | Unshielded |
| Weight (g): | 40.40000 | Mounting Type | Jam Nut |
| Mounting Style | Panel | Housing Material | Cadmium |
| Mounting Feature | Front Side Nut | Termination Style | Solder |
| Number of Contacts | 8 POS | Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated |
Product Info
| Type | RJ-45 | Grade | Cat5e |
| Gender | RCP | Series | RJF7S |
| Features | Circular Bayonet Coupling | USOC Codes | RJ45 |
| Category Number | Cat 5e | Number of Ports | 1 Port |
| RF Family/Standard | RJF | Output Configuration | Panel Mount, Bulkhead |
| Performance Category | Cat 5e, Class D | Convert To (Adapter End) | Jack, 8p8c (RJ45) |
| Convert From (Adapter End) | Jack, 8p8c (RJ45) | Number of Positions Loaded | 8 |
Environmental
| Ratings | Cat5e | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
Similar Parts

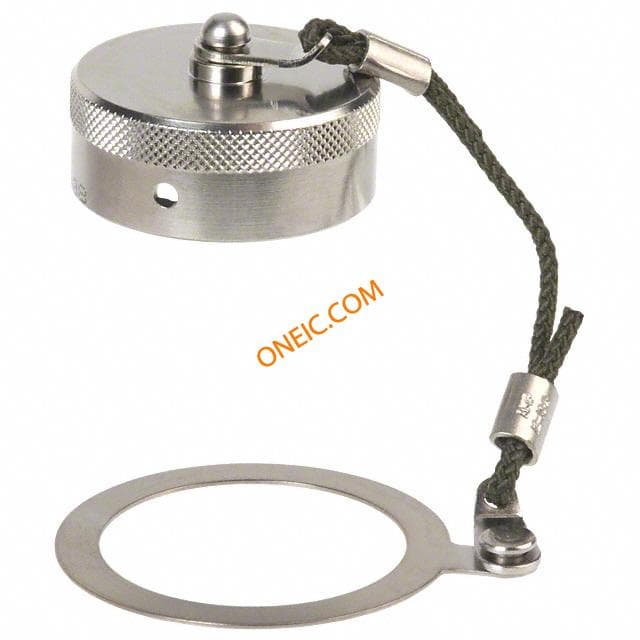

RJFC7N
amphenol pcd
Connector Accessories Metallic Cap Jam Nut Receptacle Nickel CONN ACCY CAP Modular Connectors / Ethernet Connectors Jam Nut Recept Cap RJ45 Cat5e Nickel connector accessory, rj field, cap for jam nut receptacle(bayonet coupling), nickel

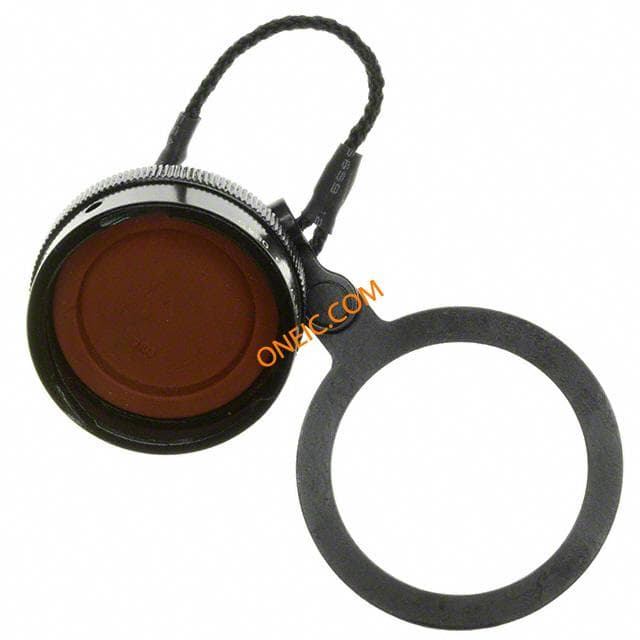

RJFC7B
amphenol pcd
Connector Accessories Metallic Cap Jam Nut Receptacle Black Coating CONN ACCY CAP BLACK Modular Connectors / Ethernet Connectors Jam Nut Recept Cap RJ45 Cat5e Black connector accessory, rj field, protectioncap for jam nut receptacle, black

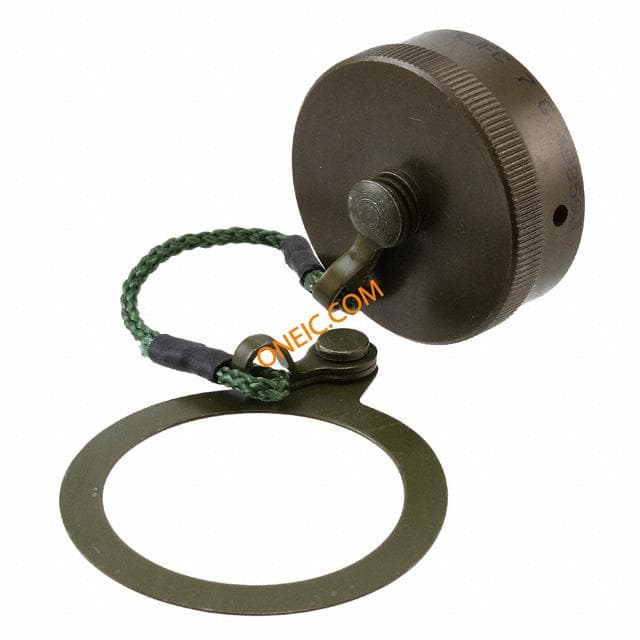

RJFC7G
amphenol pcd
Connector Accessories Metallic Cap Jam Nut Receptacle Olive Drab Cadmium CONN ACCY CAP OLIVE Modular Connectors / Ethernet Connectors Jam Nut Recept Cap RJ45 Cat5e Olive RECEPTACLE DUST CAP, METAL connector accessory, rj field, cap for jam nut receptacle(bayonet coupling), green
