RJF21B
| Manufacturer | |
| Description | Conn RJ-45 RCP 8 POS ST Panel Mount 8 Terminal 1 Port Cat 5e COUPLER MODULAR 8POS-8POS Female Square Flange Panel Mount Field RJ45 Connector, LAN Category Cat5e connector;metal circ;panel mount recept;4-hole square flange;rj 45;black finish Modular Connectors / Ethernet Connectors Female RJ45 Black Sq Flange Recpt Blk CONNECTOR, SEALED ETHERNET connector, metal circ, panel mount recept, 4-hole square flange, rj 45, black finish 方形法兰 面板安装 RJ45 连接器 母, Cat5e |
| Category |
Business
| Part # Aliases | 03H9929 308-4605 | Product Category | Modular Connectors / Ethernet Connectors |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Connector - Voltage Input | Cat5e | ||
Mechanical
| Color | Black | Depth | 39.1mm |
| Width | 33.3mm | Height | 33.3 mm |
| Length | 33.3mm | Weight | 0.02636 |
| Shielding | Unshielded | Orientation | Straight |
| Weight (g): | 25.60000 | Mounting Type | Panel Mount |
| Connector Type | :Sealed Ethernet | Contact Finish | :- |
| Mounting Style | Flange | Contact Material | :- |
| Length - Overall | 39.1 mm | Primary Material | Sealed |
| Termination Style | Solder Terminal | Number of Contacts | 8 POS |
| Contact Termination | :Solder | Mounting Hole Diameter | 0.138 in. |
| Shell Material, Finish | Metal | 1st Connector Mounting Type | :Panel |
Product Info
| Type | RJ-45 | Gender | RCP |
| Series | RJF | Features | Circular Bayonet Coupling |
| USOC Codes | RJ45 | Socket Type | Square Flange |
| Manufacturer | RJField Series | Category Number | Cat 5e |
| Number of Ports | 1 | RF Family/Standard | RJF |
| Performance Category | Cat 5e | Application Specifics | For robotics, industrial process control, CNC machines, special machines, motion control, data acquisition and transmission in harsh environments and tele-maintenances |
| Convert To (Adapter End) | Jack, 8p8c (RJ45) | Convert From (Adapter End) | Jack, 8p8c (RJ45) |
| Number of Positions Loaded | 8 | ||
Environmental
| Ratings | Cat5e | Seal Rating | IP67 |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | -40°C ~ 85°C |
Documents & Media
Similar Parts
JE18
amphenol pcd
Connector Accessories Panel Gasket For Square Flange Receptacle CONN ACCY GASKET BLACK Circular Connector Seal Gasket Firewire Connectors RJ FIELD GASKET PM RECPT GASKET, PANEL connector accessory, panel gasket for rjfield square flange receptacle Flat gasket for appliance socket, JE18, Amphenol Gasket

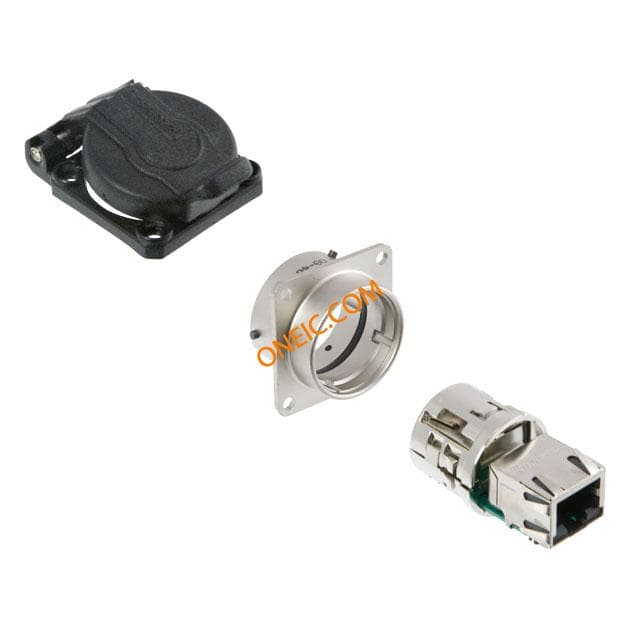

RJF21NSCC
amphenol pcd
Connector Accessories Self Closing Cap For RJ45 Nickel And Metallized Insert CONN ACCY CAP Modular Connectors / Ethernet Connectors Female RJ45 Nickel Sq Flange Receptacle connector, metal circular, snap cap recept, metalized insert, rj45 ethernet, nickel
RJFC2B
amphenol pcd
Connector Accessories Metallic Cap Square Flange Receptacle Black Coating CONN ACCY CAP BLACK Modular Connectors / Ethernet Connectors Sq Flange Recpt Cap RJ45 Cat5e Black connector accessory, rj field, protectioncap for square flange recept, black fin

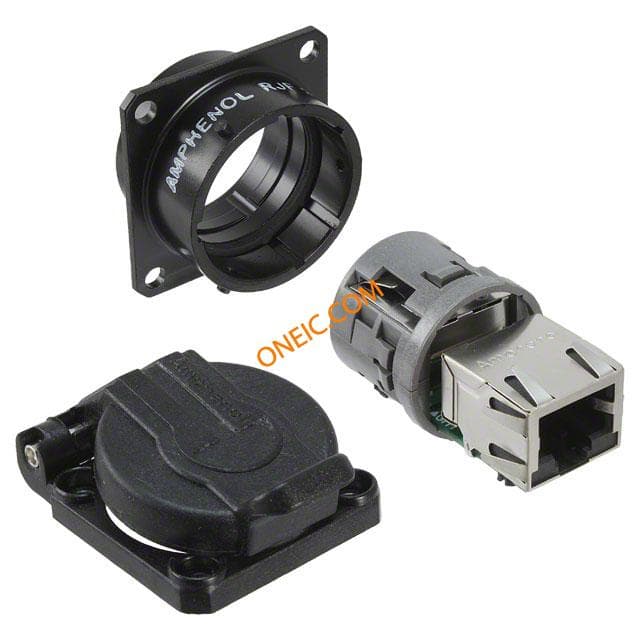

RJF21BSCC
amphenol pcd
Connector Accessories Self Closing Cap For RJ45 Black CONN ACCY CAP BLACK Modular Connectors / Ethernet Connectors Female RJ45 Black Sq Flange Recpt Blk connector, metal circ, panel mount receptw/snap cap, plain insert, rj45, black fin

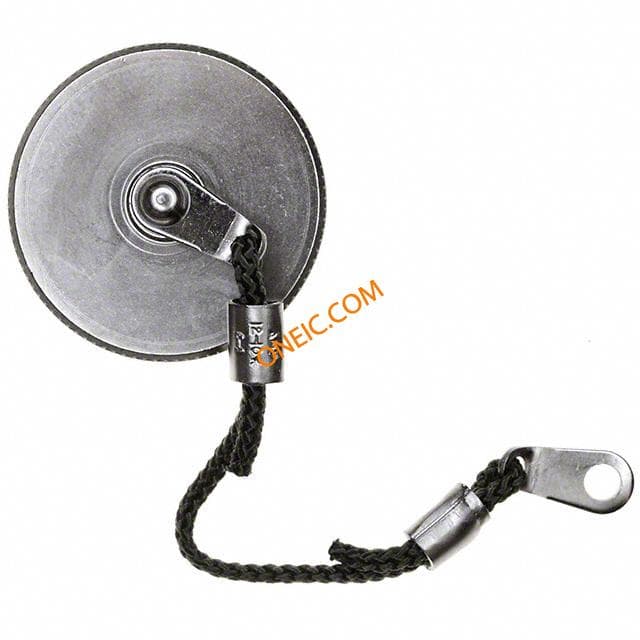

RJFC2N
amphenol pcd
Connector Accessories Metallic Cap Square Flange Receptacle Nickel CONN ACCY CAP metal cap,sq flange rcp,fem, RJ45 Nickel Modular Connectors / Ethernet Connectors Sq Flange Recpt Cap RJ45 Cat5e Nickel RECEPTACLE DUST CAP, METAL connector accessory, rj field, cap for square flange receptacle, nickel

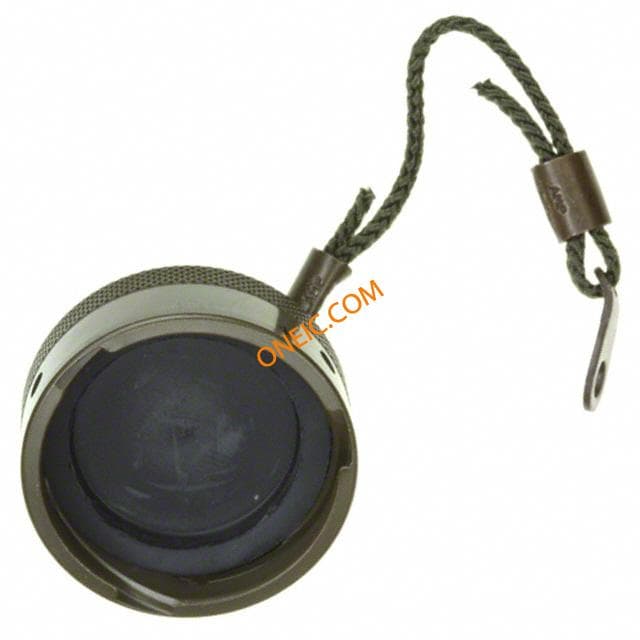

RJFC2G
amphenol pcd
Connector Accessories Metallic Cap Square Flange Receptacle Olive Drab Cadmium CONN ACCY CAP OLIVE Modular Connectors / Ethernet Connectors Sq Flange Recpt Cap RJ45 Cat5e Olive DUST CAP & COVER, RJFC2G Protection Cap; for Square Flange Receptacle; RJ Field; Olive Drab Cadmium

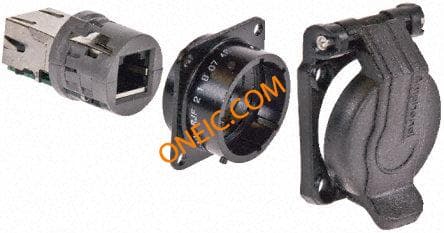

RJF 21 B SCC
