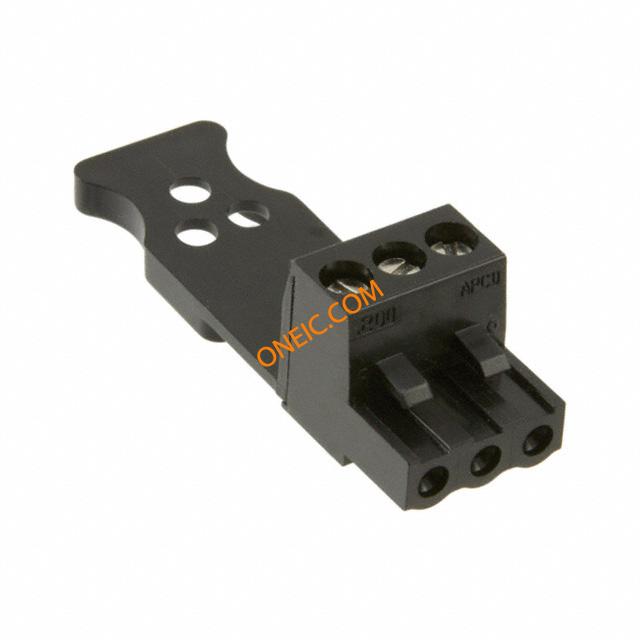

ELFP0321P0
| Manufacturer | |
| Description | Pluggable Terminal Blocks R/A Plug W/SR .2in 3pos Conn Terminal Block PL 3 POS 5.08mm Screw RA Cable Mount 15A TERM BLOCK PLUG 3POS STR 5.08MM |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Pluggable Terminal Blocks | Other Names | APC1169 |
| Product Category | Pluggable Terminal Blocks | Standard Package | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 300 V | Current Rating (Max) | 15 A |
| Voltage - Input (Min) | 300V | ||
Mechanical
| Color | Black | Depth | 51.4 |
| Pitch | 0.200" (5.08mm) | Height | 16.78 |
| Packaging | Bulk | Wire Gauge | 12-26 AWG |
| Termination | Screw | Mounting Type | Cable Mount |
| Contact Finish | Tin/Nickel | Number of Rows | 1 |
| Plug Wire Entry | 180° | Contact Material | Copper Alloy/Steel |
| Housing Material | Polyphenylene Oxide | Length - Overall | 12.7 |
| Termination Style | Screw | Number of Contacts | 3 |
| Number of Positions | 3 | Terminal Block Type | Plug, Female Sockets |
| Wire Gauge or Range - mm2 | 14 | ||
Product Info
| Type | Terminal Block | Gender | PL |
| Features | Retention Latches (Wire Side), Strain Relief | Number of Levels | 1 |
| Positions Per Level | 3 | ||
