ELFH09250J
| Manufacturer | |
| Description | VERT HEAD CLOSED ENDS EJECT EARS Pluggable Terminal Blocks Hor Header W/Eject Ears 9pos .2in TERM BLOCK HDR 9POS VERT 5.08MM |
| Category |
Business
| Other Names | APC1156 | Product Category | Pluggable Terminal Blocks |
| Standard Package | 100 | ||
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 300 V | Current Rating (Max) | 15 A |
| Insulation Resistance | 100000 MOhms | ||
Mechanical
| Color | Black | Pitch | 5 mm |
| Packaging | Bulk | Termination | Solder |
| Mounting Type | Through Hole | Contact Finish | Tin |
| Mounting Style | Through Hole | Housing Material | Polybutylene Terephthalate (PBT) |
| Termination Style | Through Hole | Header Orientation | Vertical |
| Number of Contacts | 9 | Number of Positions | 9 |
| Terminal Block Type | Header, Male Pins, Shrouded (4 Side) | ||
Product Info
| Features | Ejectors | Number of Levels | 1 |
| Positions Per Level | 9 | ||
Documents & Media
Similar Parts

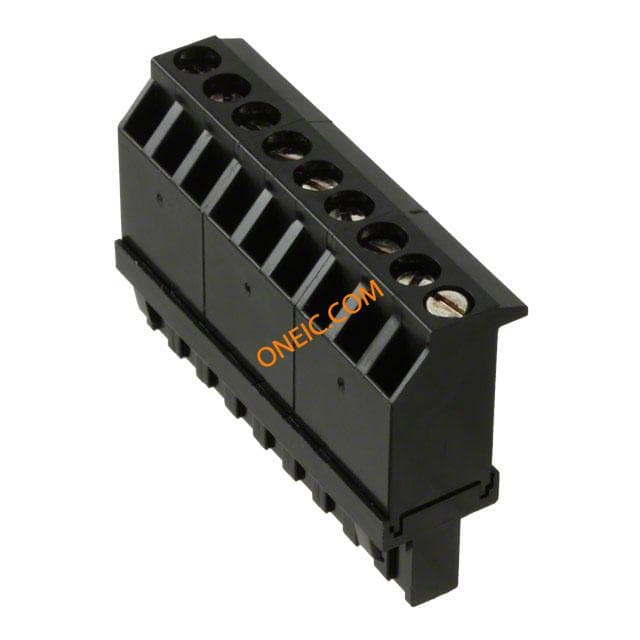

ELFF09230
