ELFH03250
| Manufacturer | |
| Description | Conn Shrouded Header HDR 3 POS 5.08mm Solder ST Thru-Hole Pluggable Terminal Blocks VERTICAL HEADER 5.08MM 3POS CLOSED TERM BLOCK HDR 3POS VERT 5.08MM Amphenol ELFH Series 5.08mm Pitch 3 Way 1 Row Vertical PCB Header, Solder Termination, 15A Conn; Term Blk; PCB; 3; 5.08 mm; Vert.; Black; 15 A; 300 V |
| Category |
Business
| Other Names | APC1243 | Part # Aliases | 308-0187 |
| Product Category | Pluggable Terminal Blocks | Standard Package | Bulk |
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 300 V | Current Rating (Max) | 15 A |
| Insulation Resistance | 100000 MOhms | ||
Mechanical
| Color | Black | Pitch | 5.08 mm |
| Length | 1 in | Packaging | Bulk |
| Termination | Solder | Mounting Type | 180 Deg |
| Contact Finish | Tin-Lead | Number of Rows | 1 |
| Contact Material | Brass | Housing Material | Polybutylene Terephthalate (PBT) |
| Termination Style | SMD/SMT | Header Orientation | Vertical |
| Number of Contacts | 3 | Number of Positions | 3 |
| Terminal Block Type | Header, Male Pins, Shrouded (4 Side) | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | ELFH | Number of Levels | 1 |
| Positions Per Level | 3 | ||
Documents & Media
Similar Parts

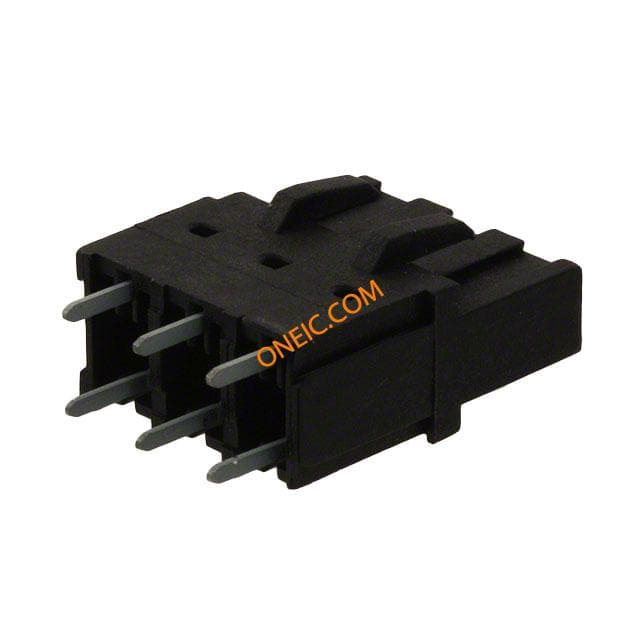

ELFB03280
amphenol pcd
MALE HEADER/BOARD-MOUNT PLUG, MODULAR TERM BLOCK HDR 3POS VERT 5.08MM Fixed Terminal Blocks Ver Board Mnt Plug .2 in 3 Pos.
ELFF03220
amphenol pcd
FRONT/FRONT PLUG-BOTTOM ENTRY OFFSET Pluggable Terminal Blocks Plug TERM BLOCK PLUG 3POS 5.08MM
SCFF03210
amphenol pcd
SPRING CLAMP FRONT/FRONT Pluggable Terminal Blocks Spring Clamp Plug .2 in 3 Pos TERM BLOCK PLUG 3POS STR 5.08MM
ELFF03240
amphenol pcd
Conn Terminal Block F 3 POS 5.08mm Screw ST Cable Mount 15A TERM BLOCK PLUG 3POS 5.08MM
ELFK03210
amphenol pcd
Conn Terminal Block F 3 POS 5.08mm Screw Cable Mount 15A TERM BLOCK PLUG 3POS 5.08MM Pluggable Terminal Blocks 3 POS 45 DEG ANGLE
ELFP03210
amphenol pcd
Conn Terminal Block F 3 POS 5.08mm Screw RA Cable Mount 15A Pluggable Terminal Blocks 3P Right Angle Panel Mount Terminal Block TERM BLOCK PLUG 3POS STR 5.08MM
ELFF03230
amphenol pcd
Conn Terminal Block F 3 POS 5.08mm Screw ST Cable Mount 15A Pluggable Terminal Blocks 3 POS FRONT ENTRY TERM BLOCK PLUG 3POS 5.08MM Plug Top Entry,5.08mm,3way

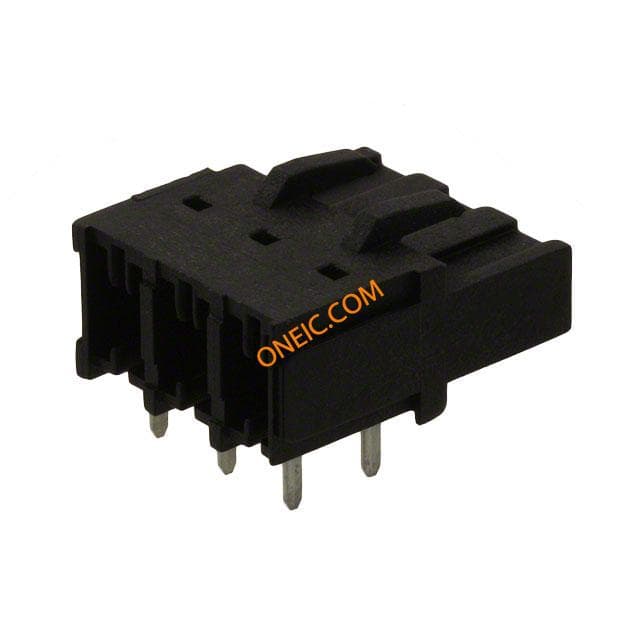

ELFB03230
