ELFF12240
| Manufacturer | |
| Description | Conn Terminal Block F 12 POS 5.08mm Screw ST Cable Mount 15A TERM BLOCK PLUG 12POS 5.08MM |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current | 15A | Voltage | 300V |
| Current Rating (Max) | 15 | Voltage - Input (Min) | 300V |
Mechanical
| Color | Black | Depth | 30.93 |
| Pitch | 5.08 mm | Height | 14.37 |
| Packaging | Tray | Wire Gauge | 14-26 AWG |
| Termination | Screw | Housing Color | Black |
| Mounting Type | Cable Mount | Contact Finish | Tin |
| Number of Rows | 1 | Plug Wire Entry | 270° |
| Contact Material | Copper Alloy | Housing Material | Polyphenylene Oxide |
| Length - Overall | 60.96 | Number of Contacts | 12 |
| Number of Positions | 12 | Terminal Block Type | Plug, Female Sockets |
Product Info
| Type | Terminal Block | Gender | F |
| Features | Retention Latches (Non-Wire Side) | Number of Levels | 1 |
| Positions Per Level | 12 | ||
Documents & Media
Similar Parts

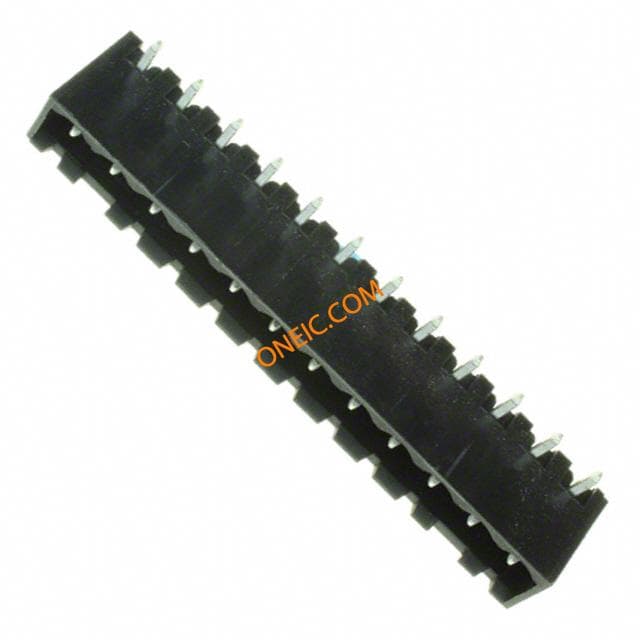

ELFH12210J
amphenol pcd
HEAD CLOSED ENDS EJECT EARS Pluggable Terminal Blocks Hor Header W/Eject Ears 12pos .2in TERM BLOCK HDR 12POS R/A 5.08MM
ELFH12240
amphenol pcd
Conn Shrouded Header HDR 12 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 12POS R/A 5.08MM
ELFA24210
amphenol pcd
RIGHT ANGLE HORIZONTAL HEADER TERM BLOCK HDR 24POS R/A 5.08MM
ELFD24220
amphenol pcd
Conn Stackable Header HDR 24 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 24POS R/A 5.08MM

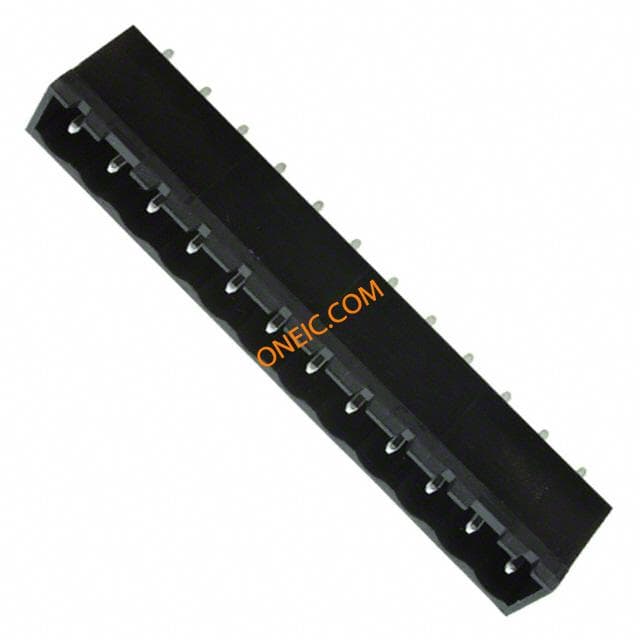

ELFH12250J
