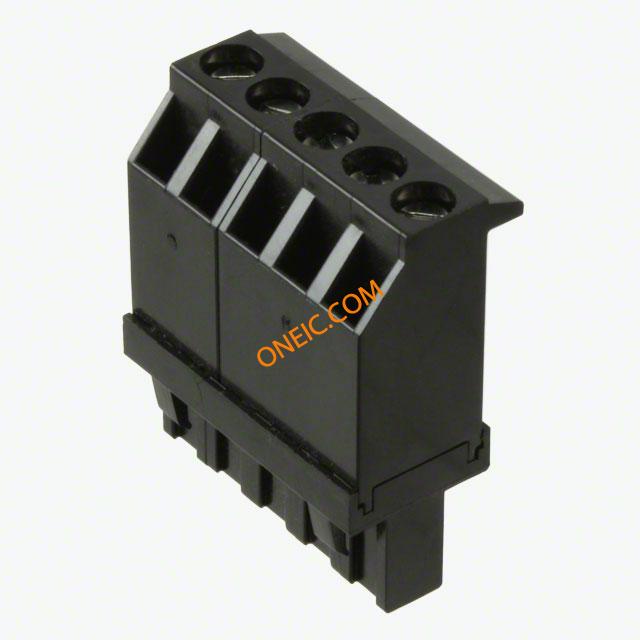

ELFF05230
| Manufacturer | |
| Description | Conn Terminal Block F 5 POS 5.08mm Screw ST Cable Mount 15A TERM BLOCK PLUG 5POS 5.08MM Plug Top Entry,5.08mm,5way Pluggable Terminal Blocks Plug Top Entry 5 pos .2in |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Pluggable Terminal Blocks | Other Names | APC1177 |
| Product Category | Pluggable Terminal Blocks | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 300 V | Current Rating (Max) | 15A |
| Voltage - Input (Min) | 300V | ||
Mechanical
| Color | Black | Depth | 30.93 |
| Pitch | 5.08 mm | Height | 14.37 |
| Material | PPO | Packaging | Bulk |
| Wire Gauge | 14-26 AWG | Termination | Screw |
| Housing Color | Black | Mounting Type | Cable Mount |
| Contact Finish | Tin | Number of Rows | 1 |
| Plug Wire Entry | 90° | Contact Material | Copper Alloy |
| Housing Material | Polyphenylene Oxide | Length - Overall | 25.4 |
| Number of Contacts | 5 | Number of Positions | 5 |
| Terminal Block Type | Plug, Female Sockets | ||
Product Info
| Type | Terminal Block | Gender | F |
| Features | Retention Latches (Wire Side) | Number of Levels | 1 |
| Positions Per Level | 5 | ||
