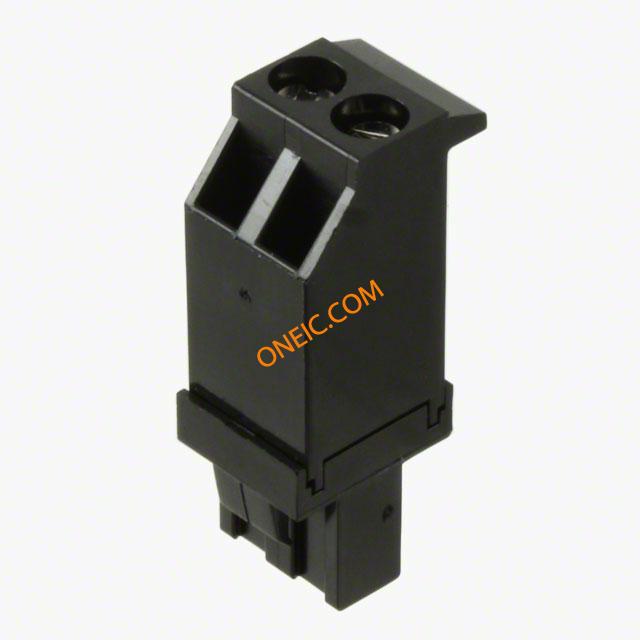

ELFF02230
| Manufacturer | |
| Description | Conn Terminal Block F 2 POS 5.08mm Screw ST Cable Mount 15A Pluggable Terminal Blocks 2 POS FRONT ENTRY TERM BLOCK PLUG 2POS 5.08MM Plug Top Entry,5.08mm,2way |
| Category |
Business
| Product | Pluggable Terminal Blocks | Other Names | APC1174 |
| Product Category | Pluggable Terminal Blocks | Standard Package | Bulk |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 300 V | Current Rating (Max) | 15 A |
| Voltage - Input (Min) | 300V | ||
Mechanical
| Color | Black | Depth | 30.93 |
| Pitch | 5.08 mm | Width | 0.566 in |
| Height | 14.37 | Length | 0.4 in |
| Material | PPO | Packaging | Bulk |
| Wire Gauge | 14-26 AWG | Termination | Screw |
| Housing Color | Black | Mounting Type | Cable Mount |
| Contact Finish | Gold | Number of Rows | 1 |
| Plug Wire Entry | 90° | Contact Material | Copper |
| Housing Material | Thermoplastic | Length - Overall | 10.16 |
| Termination Style | Screw | Number of Contacts | 2 |
| Number of Positions | 2 | Terminal Block Type | Plug, Female Sockets |
| Wire Gauge or Range - AWG | 26-12 | ||
Product Info
| Type | Terminal Block | Gender | F |
| Series | ELFF | Features | Retention Latches (Wire Side) |
| Number of Levels | 1 | Positions Per Level | 2 |
