PT02SE-22-55S(025)

Manufacturer	Amphenol Corporation
Description	Circular MIL Spec Connector 55P Sz 22 Box Mt Skt Receptacle Blk Zinc MIL-C-26482 Series 1 Connector, Crimp Contacts CONN RECEPT 55POS W/SOCKET CRIMP
Category	Connector SolutionsCircular ConnectorsMilitary Circular Connectors

对参数有疑问？问 AI 助手

Business

Product Category

Circular MIL Spec Connector

Standard Package

Compliance

RoHS

RoHS Compliant

MIL Type

MIL-DTL-26482

Electrical

Voltage Rating

600VAC

Current Rating (Max)

7.5A

Mechanical

Packaging	Bulk	Shell Size	22
Orientation	N (Normal)	Shell Style	Box Mount
Termination	Crimp	Contact Type	socket contacts
Mounting Type	Straight	Shell Plating	Non-Conductive Black Zinc
Connector Type	Receptacle, Female Sockets	Contact Finish	non-conductive black zinc cobalt
Fastening Type	Bayonet Lock	Mounting Style	Panel
Shell Material	Aluminum Alloy	Insertion Angle	22-55
Termination Style	Crimp	1st Contact Gender	Socket (Female)
Mating Orientation	Bayonet	Number of Contacts	55
Number of Positions	55	Shell Size - Insert	22-55
Shell Material, Finish	Aluminum, Black Zinc Cobalt Plated

Product Info

Series	PT	Product Type	Receptacles
Service Class	environmental crimp

Environmental

Ingress Protection

Environment Resistant

Operating Temperature

-55°C ~ 125°C

Documents & Media

PDF Document

MIL-C-26482, Series 1

PDF Document

PT00A-1_ht.pdf

Similar Parts

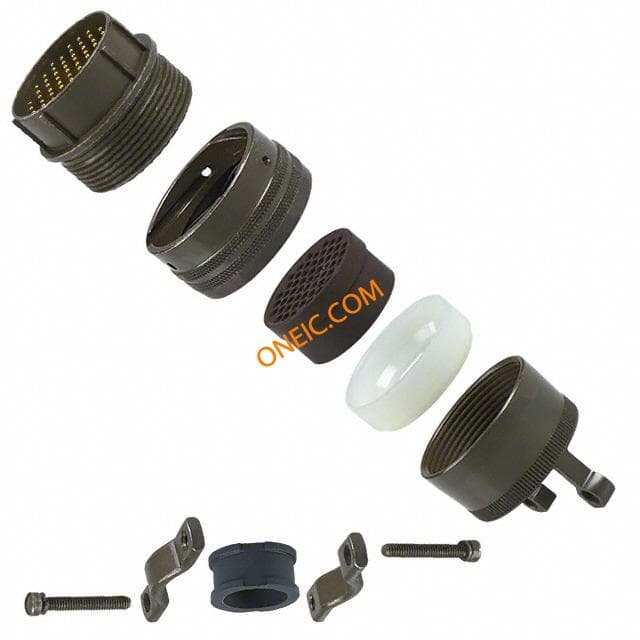

PT06E-22-55P(470)
