PT02SE-18-32P(025)
| Manufacturer | |
| Description | Circular MIL Spec Connector 32P Sz 18 Box Mt Pin Receptacle Blk Zinc CONN RECEPT 32POS W/PINS CRIMP |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Circular MIL Spec Connector | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | MIL Type | MIL-DTL-26482 |
Electrical
| Voltage Rating | 600VAC | Current Rating (Max) | 7.5A |
Mechanical
| Packaging | Bulk | Shell Size | 18 |
| Orientation | N (Normal) | Shell Style | Box Mount |
| Termination | Crimp | Mounting Type | Straight |
| Shell Plating | Non-Conductive Black Zinc | Connector Type | Receptacle, Male Pins |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Mounting Style | Panel | Shell Material | Aluminum Alloy |
| Insertion Angle | 18-32 | Termination Style | Crimp |
| 1st Contact Gender | Pin (Male) | Mating Orientation | Bayonet |
| Number of Contacts | 32 | Number of Positions | 32 |
| Shell Size - Insert | 18-32 | Shell Material, Finish | Aluminum, Black Zinc Cobalt Plated |
Product Info
| Series | PT | Product Type | Receptacles |
Environmental
| Ingress Protection | Environment Resistant | Operating Temperature | -55°C ~ 125°C |
Documents & Media
PDF Document
PDF Document
Similar Parts
10-101949-018
amphenol
Connector Accessories Flange Gasket 18 Shell Size SEALING GASKET FOR #18 WALL RCPT connector accessory, flange gasket for wall& box receptacles, pt-series size 18
$0.9357
Details
.JPG&w=3840&q=75)

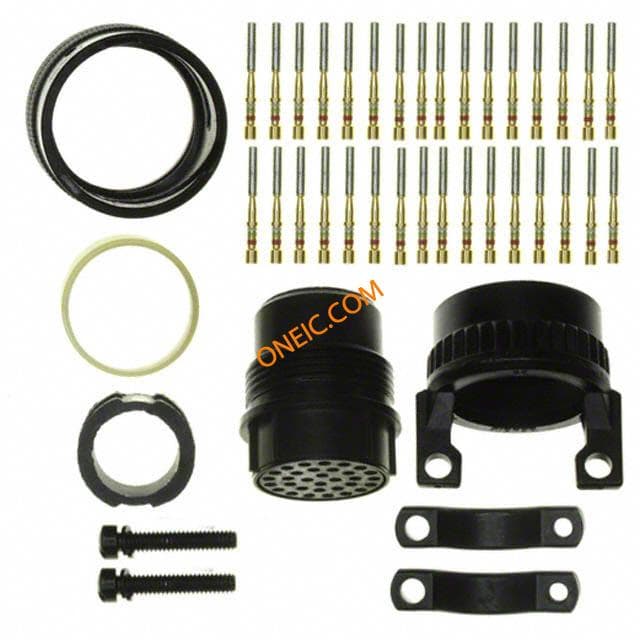

PT06SE18-32S(470)
