97-3106A-20-16S(946)
| Manufacturer | |
| Description | Circular MIL Spec Connector 9P Strt Socket Plug Sz 20 Solder Blk Zn CONN PLUG 9POS W/SOCKETS connector;metal circ;str plug;size 20;2#12;7#16 solder socket cont;black finish connector, metal circ, str plug, size 20, 2#12, 7#16 solder socket cont, black finish |
| Category |
Business
| Product Category | Circular MIL Spec Connector | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | MIL Type | MIL-DTL-5015 |
| Approval Agency Marking | UL Recognized/CSA | ||
Electrical
| Voltage Rating | 500VAC, 700VDC | Current Rating (Max) | 13 A to 23 A |
Mechanical
| Packaging | Bulk | Cable Exit | Solid |
| Shell Size | 20 | Wire Gauge | 12, 16 |
| Orientation | N (Normal) | Shell Style | Potting |
| Termination | Solder Cup | Contact Type | Socket |
| Mounting Type | Straight | Shell Plating | Olive Drab Chromate over Cadmium |
| Angle of Throw | Straight | Connector Type | Plug, Female Sockets |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Olive Drab Cadmium | Mounting Style | Wire |
| Package / Case | Metal | Shell Material | Aluminum Alloy |
| Connector Usage | Threaded | Insertion Angle | 20-16 |
| Contact Material | Copper Alloy | Housing Material | Aluminum Alloy |
| Primary Material | 5015 Commercial | Termination Style | Solder |
| 1st Contact Gender | Socket (Female) | Mating Orientation | Threaded |
| Number of Contacts | 9 | Dielectric Material | Diallyl-Phthalate |
| Number of Positions | 9 | Shell Size - Insert | 20-16 |
| Shell Material, Finish | Aluminum, Zinc Plated, Black | Contact Layout, Typical | 2#12, 7#16 |
Product Info
| Type | Cable Plug | Class | A |
| Series | 97 | Features | Environmental Resistant, Single Key/Keyway Shell Polarization |
| Manufacturer | 97 Series | Product Type | Plugs |
| Application Specifics | Commercial | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Similar Parts
.jpg&w=3840&q=75)

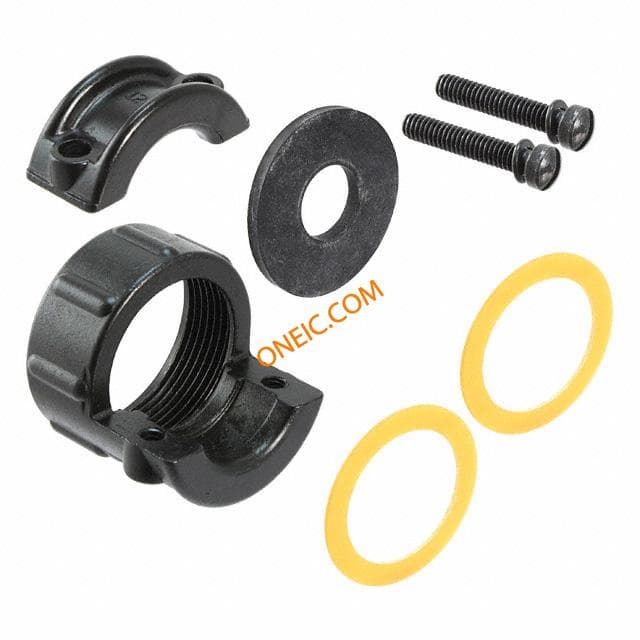

97-3057-12(621)
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Black Zinc Alloy CONN CABLE CLAMP SIZE 20, 22 connector accessory;an3057 cable clamp for connector size 20;22;black zinc finis Circular MIL Spec Strain Reliefs & Adapters Cable Clamp AN3057 Size 20,22 Blk Zinc CABLE CLAMP, SIZE 20, 22 CABLE CLAMP, 97 MIL-C-5015 CONNECTOR connector accessory, an3057 cable clamp for connector size 20, 22, black zinc finis Amphenol 97 系列 尺寸20, 22 电缆夹, 使用于带护套电缆，带管道保护的电线
97-3057-1012(621)
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Black Zinc Alloy CONN CABLE CLAMP SIZE 20, 22 connector accessory;ms3057 cable clamp for connector size 20;22;black zinc finis Circular MIL Spec Strain Reliefs & Adapters Cable Clamp MS3057A Size 20, 22 Blk Zinc CABLE CLAMP, SIZE 20/22, DIECAST ZINC CABLE GLAND, SIZE 20, 22 CABLE CLAMP, SIZE 20/22, ZINC ALLOY connector accessory, ms3057 cable clamp for connector size 20, 22, black zinc finis Amphenol 97 系列 尺寸20, 22 电缆夹, 使用于带护套电缆，带管道保护的电线
97-3102A-20-16P(946)
Amphenol Industrial
Circular MIL Spec Connector 9P Sz 20 Box Mount Pin Recept Solder MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RECEPT BOX MNT 9POS W/PINS connector;metal circ;box recept;size 20;2#12;7#16 solder pin contact;black fin connector, metal circ, box recept, size 20, 2#12, 7#16 solder pin contact, black fin
.jpg&w=3840&q=75)

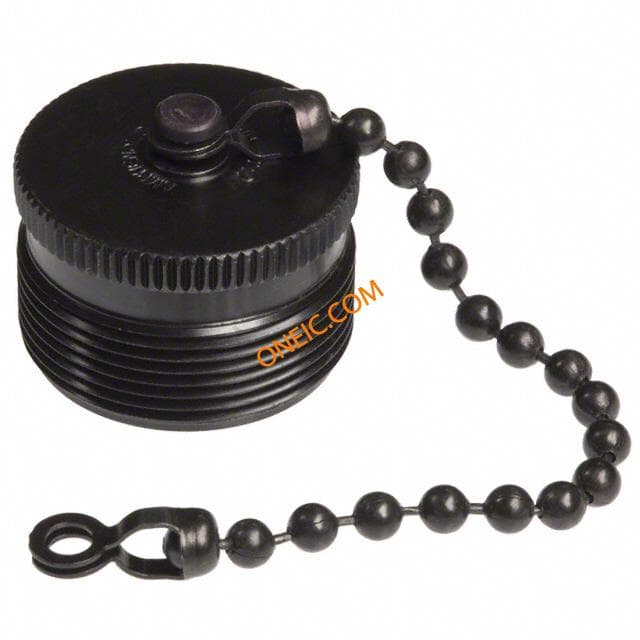

97-60-20P(621)
