97-3106A-16S-1P(946)
| Manufacturer | |
| Description | Circular MIL Spec Connector 7P Straight Pin Plug Sz 16S Solder Blk Zn CONN PLUG 7POS W/PINS connector;metal circ;str plug;size 16s;7 #16 solder pin contact;black finish CIRCULAR CONNECTOR PLUG SIZE 16S, 7POS, CABLE connector, metal circ, str plug, size 16s, 7 #16 solder pin contact, black finish |
| Category |
Business
| Other Names | 973106A16S1P946 | Product Category | Circular MIL Spec Connector |
| Standard Package | 1 | ||
Compliance
| RoHS | Compliant | MIL Type | MIL-DTL-5015 |
| Tariff No | 85366910 | Approval Agency Marking | UL Recognized/CSA |
Electrical
| Voltage Rating | 500VAC, 700VDC | Current Rating (Max) | 13A |
Mechanical
| Weight | 0.027 | Packaging | Bulk |
| Cable Exit | Solid | Shell Size | 16 |
| Wire Gauge | 22-16 | Orientation | N (Normal) |
| Shell Style | In-Line | Termination | Solder Cup |
| Contact Type | Pin | Mounting Type | Free Hanging (In-Line) |
| Shell Plating | Black Zinc Alloy | Angle of Throw | Straight |
| Connector Type | Plug, Male Pins | Contact Finish | Silver |
| Fastening Type | Threaded | Housing Finish | Olive Drab Cadmium |
| Mounting Style | Free Hanging | Package / Case | Metal |
| Shell Material | Aluminum Alloy | Connector Usage | Threaded |
| Insertion Angle | 16S-1 | Material - Body | :Aluminium Alloy |
| Housing Material | Aluminum Alloy | Primary Material | 5015 Commercial |
| Termination Style | Solder | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 7 | Dielectric Material | Diallyl-Phthalate |
| Number of Positions | 7 | Shell Size - Insert | 16S-1 |
| Shell Material, Finish | Aluminum, Zinc Plated, Black | Contact Layout, Typical | 7#16 |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | Cable Plug | Class | A |
| Gender | :Plug | Series | 97 |
| Features | Environmental Resistant, Single Key/Keyway Shell Polarization | Manufacturer | 97 Series |
| Product Type | Plugs | Application Specifics | Commercial |
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Similar Parts
97-3106A-16S-1P
amphenol
Conn MIL-C-5015 Circular PIN 7 POS Solder ST Cable Mount 7 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 7POS W/PINS connector;metal circ;straight plug;size 16s;7 #16 solder pin contact;olive drab Circular MIL Spec Connector 7P Straight Pin Plug Sz 16S Solder CIRCULAR CONNECTOR connector, metal circ, straight plug, size16s, 7 #16 solder pin contact, olive drab
97-3057-1008(621)
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Black Zinc Alloy CONN CABLE CLAMP SIZE 16, 16S connector accessory;ms3057 cable clamp for connector size 16;16s;black zinc Circular MIL Spec Strain Reliefs & Adapters Cable Clamp MS3057A Sz 16, 16S Blk Zinc CABLE CLAMP, SIZE 16, 16S CABLE CLAMP, 97 MIL-C-5015 CONNECTOR connector accessory, ms3057 cable clamp for connector size 16, 16s, black zinc
97-3057-8
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 16, 16S connector accessory;an3057 cable clamp;connector size 16;16s;olive drab finish Circular MIL Spec Strain Reliefs & Adapters Cable Clamp AN3067 Shell Size 16, 16S CABLE CLAMP, SIZE 16/16S, ZINC ALLOY CABLE CLAMP, SIZE 16/16S, DIECAST ZINC connector accessory, an3057 cable clamp, connector size 16, 16s, olive drab finish Amphenol 97 系列 尺寸16, 16S 电缆夹, 使用于带护套电缆，带管道保护的电线
97-3055-16-6
amphenol
Connector Accessories Adapter Used As Reducing Bushing Circular MIL Spec Strain Reliefs & Adapters Bushing Adapter Shell Size 16, 16S CIRC REDUCING BUSHING SZ 16, 16S connector accessory;reducing/extending bushing;conn size 16s;16;conduit 3/8 inch connector accessory, reducing/extending bushing, conn size 16s, 16, conduit 3/8 inch
97-60-16P(621)
Amphenol Industrial
Circular MIL Spec Tools, Hardware & Accessories PLUG CAP 16 16S BLACK ZINK COBALT CONN CAP FOR SIZE 16 PLUG connector accessory, metal prot cap w/bead chain, for size 16 plugs, black zinc
97-3057-1008-1(621)
Amphenol Industrial
Circular MIL Spec Strain Reliefs & Adapters Clamp with Bushing Sz 16, 16S Blk Zinc CONN CABLE CLAMP SIZE 16, 16S connector accessory;ms3057a cable clamp w/rubber bushing;size 16;16s;black zinc CABLE CLAMP, SIZE 16, 16S connector accessory, ms3057a cable clampw/rubber bushing, size 16, 16s, black zinc Amphenol 97 系列 尺寸16, 16S 电缆夹, 使用于带护套电缆，带管道保护的电线

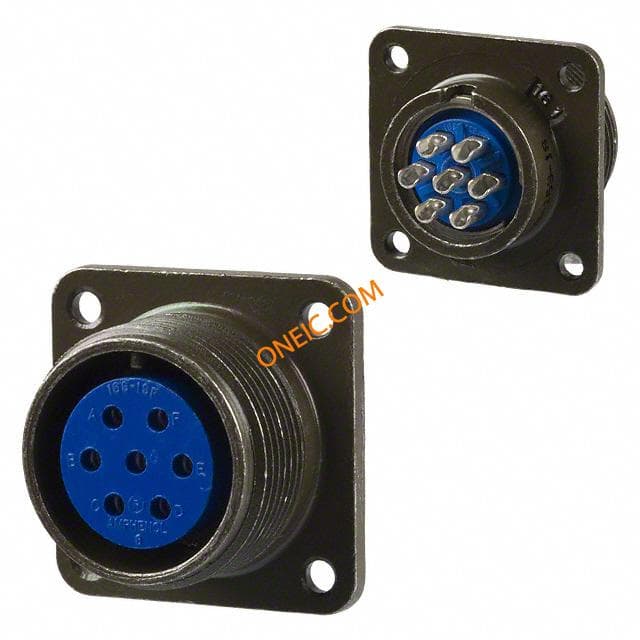

97-3102A-16S-1S(946)
