97-3102A-22-14S(946)
| Manufacturer | |
| Description | Circular MIL Spec Connector 19P Sz 22 Box Mount Socket Recept Solder RECEPT CONN RECEPT BOX MNT 19POS W/SOCK connector;metal circ;box recept;size 22;19 #16 solder socket cont;black finish connector, metal circ, box recept, size 22, 19 #16 solder socket cont, black finish |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 973102A2214S946 | Product Category | Circular MIL Spec Connector |
| Standard Package | 1 | ||
Compliance
| RoHS | Compliant | MIL Type | MIL-DTL-5015 |
| Approval Agency Marking | UL Recognized/CSA | ||
Electrical
| Voltage Rating | 500VAC, 700VDC | Current Rating (Max) | 13A |
Mechanical
| Packaging | Bulk | Cable Exit | Solid |
| Shell Size | 22 | Wire Gauge | 16-22 |
| Orientation | N (Normal) | Shell Style | Box Mount |
| Termination | Solder Cup | Contact Type | Socket |
| Mounting Type | Panel Mount, Flange | Shell Plating | Black Zinc Alloy |
| Angle of Throw | Straight | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Olive Drab Cadmium | Mounting Style | Panel |
| Package / Case | Metal | Shell Material | Aluminum Alloy |
| Connector Usage | Threaded | Insertion Angle | 22-1 |
| Housing Material | Aluminum Alloy | Primary Material | 5015 Commercial |
| Termination Style | Solder | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 2 | Dielectric Material | Diallyl-Phthalate |
| Number of Positions | 19 | Shell Size - Insert | 22-14 |
| Mounting Hole Diameter | 0.12 " | Shell Material, Finish | Aluminum, Zinc Plated, Black |
| Contact Layout, Typical | 19#16 | ||
Product Info
| Type | Panel Socket | Class | A |
| Series | 97 | Features | Environmental Resistant, Single Key/Keyway Shell Polarization |
| Manufacturer | 97 Series | Product Type | Receptacles |
| Application Specifics | Commercial | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
PDF Document
Similar Parts
97-3106A-22-14P(946)
Amphenol Industrial
Circular MIL Spec Connector 19P Strt Pin Plug Sz 22 Solder Blk Zn CONN PLUG 19POS W/PINS connector;metal circ;str plug;size 22;19 #16 solder pin contact;black finish connector, metal circ, str plug, size 22, 19 #16 solder pin contact, black finish
$127.1926
Details
.jpg&w=3840&q=75)

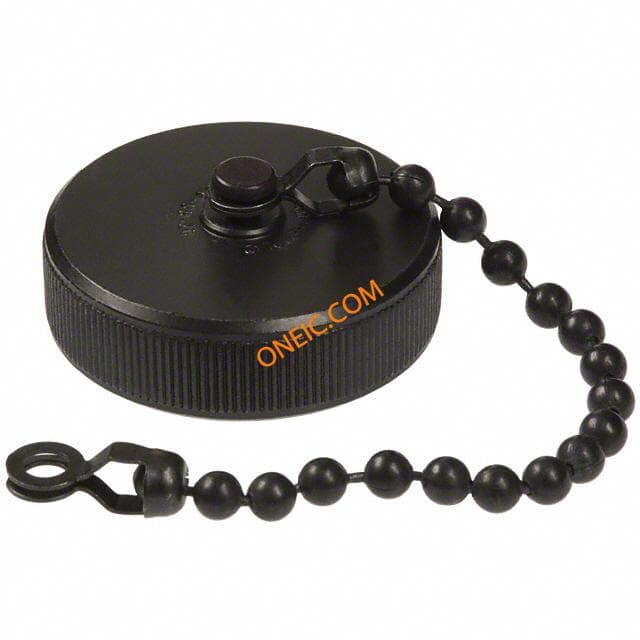

97-60-22(621)
