97-3102A-20-29P(946)
| Manufacturer | |
| Description | Circular MIL Spec Connector 17P Sz 20 Box Mount Pin Recept Solder MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RECEPT BOX MNT 17POS W/PINS connector;metal circ;box recept;size 20;17 #16 solder pin contact;black finish connector, metal circ, box recept, size 20, 17 #16 solder pin contact, black finish |
| Category |
Business
| Product Category | Circular MIL Spec Connector | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | MIL Type | MIL-DTL-5015 |
| Approval Agency Marking | UL Recognized/CSA | ||
Electrical
| Voltage Rating | 500VAC, 700VDC | Current Rating (Max) | 13 A |
Mechanical
| Packaging | Bulk | Cable Exit | Solid |
| Shell Size | 20 | Wire Gauge | 16 |
| Orientation | N (Normal) | Shell Style | Potting |
| Termination | Solder Cup | Contact Type | pin contacts |
| Mounting Type | Straight | Shell Plating | Olive Drab Chromate over Cadmium |
| Angle of Throw | Straight | Connector Type | Amphenol 97 Series - Standard Cylindrical Connector - solder type |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Olive Drab Cadmium | Mounting Style | Panel |
| Package / Case | Metal | Shell Material | Aluminum Alloy |
| Connector Usage | Threaded | Insertion Angle | 20-2 |
| Contact Material | Copper Alloy | Housing Material | Aluminum Alloy |
| Primary Material | 5015 Commercial | Termination Style | Solder |
| 1st Contact Gender | Pin (Male) | Mating Orientation | Threaded |
| Number of Contacts | 1 | Dielectric Material | Diallyl-Phthalate |
| Number of Positions | 17 | Shell Size - Insert | 20-29 |
| Mounting Hole Diameter | 0.12 " | Shell Material, Finish | Aluminum, Zinc Plated, Black |
| Contact Layout, Typical | 17#16 | ||
Product Info
| Type | Panel Socket | Class | A |
| Series | 97 | Features | Environmental Resistant, Single Key/Keyway Shell Polarization |
| Manufacturer | 97 Series | Product Type | Receptacles |
| Insert Configuration | 20-29 | Application Specifics | Commercial |
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Similar Parts
.jpg&w=3840&q=75)

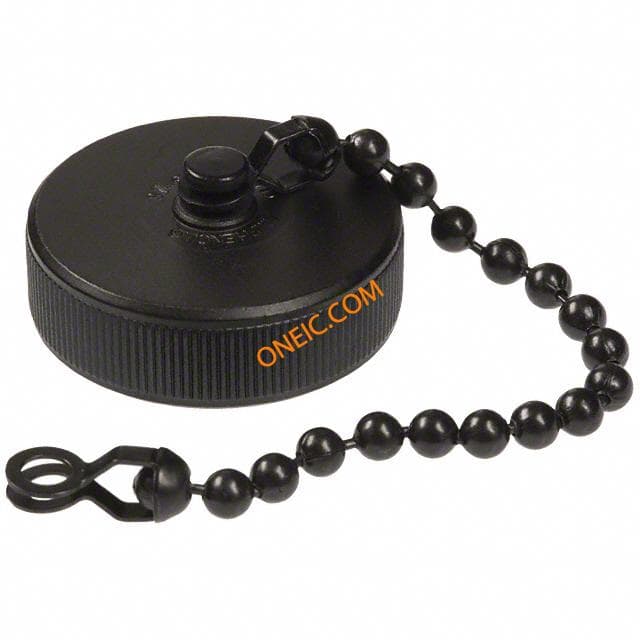

97-60-20(621)
