97-3102A-16S-8S(946)
| Manufacturer | |
| Description | Circular MIL Spec Connector 5P Sz 16S Box Mount Socket Recept Solder MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RECEPT BOX MNT 5POS W/SOCK connector;metal circ;box recept;size 16s;5 #16 solder socket cont;black finish CIRCULAR, RECEPTACLE, 16S-8, BOX connector, metal circ, box recept, size 16s, 5 #16 solder socket cont, black finish |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Circular MIL Spec Connector | Standard Package | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | MIL Type | MIL-DTL-5015 |
| Tariff No | 85369010 | Approval Agency Marking | UL Recognized/CSA |
Electrical
| Voltage Rating | 500VAC, 700VDC | Current Rating (Max) | 13A |
Mechanical
| Weight | 0.001 | Packaging | Bulk |
| Cable Exit | Solid | Shell Size | 16S |
| Wire Gauge | 16-22 | Orientation | N (Normal) |
| Shell Style | box mount receptable | Termination | Solder Cup |
| Contact Type | socket contacts | Mounting Type | Panel Mount, Flange |
| Shell Plating | Black Zinc Alloy | Angle of Throw | Straight |
| Connector Type | Amphenol 97 Series - Standard Cylindrical Connector - solder type | Contact Finish | special variation code |
| Fastening Type | Threaded | Housing Finish | Olive Drab Cadmium |
| Mounting Style | Panel | Package / Case | Metal |
| Shell Material | solid backshell | Connector Usage | Threaded |
| Insertion Angle | 16S-8 | Material - Body | :Aluminium |
| Contact Material | :- | Housing Material | Aluminum Alloy |
| Primary Material | 5015 Commercial | Termination Style | Solder |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 5 |
| Contact Termination | :Solder | Dielectric Material | Diallyl-Phthalate |
| Number of Positions | 5 | Shell Size - Insert | 16S-8 |
| Mounting Hole Diameter | 0.12 " | Shell Material, Finish | Aluminum, Zinc Plated, Black |
| Contact Layout, Typical | 5#16 | 1st Connector Mounting Type | :Panel |
Product Info
| Type | Panel Socket | Class | A |
| Gender | :Receptacle | Series | 97 |
| Features | Environmental Resistant, Single Key/Keyway Shell Polarization | Manufacturer | 97 Series |
| Product Type | Receptacles | Insert Configuration | 16S-8 |
| Application Specifics | Commercial | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
.jpg&w=3840&q=75)

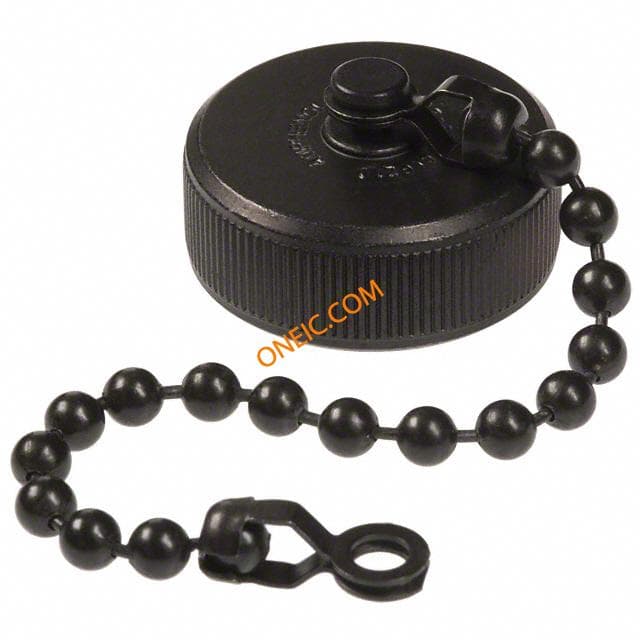

97-60-16(621)
