97-3102A-16S-1P(946)
| Manufacturer | |
| Description | Circular MIL Spec Connector 7P Sz 16S Box Mount Pin Recept Solder MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RECEPT BOX MNT 7POS W/PINS connector;metal circ;box recept;size 16s;7 #16 solder pin contact;black finish connector, metal circ, box recept, size 16s, 7 #16 solder pin contact, black finish |
| Category |
Business
| Other Names | 973102A16S1P946 | Product Category | Circular MIL Spec Connector |
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | MIL Type | MIL-DTL-5015 |
| Approval Agency Marking | UL Recognized/CSA | ||
Electrical
| Voltage Rating | 500VAC, 700VDC | Current Rating (Max) | 13A |
Mechanical
| Packaging | Bulk | Cable Exit | Solid |
| Shell Size | 16S | Wire Gauge | 16-22 |
| Orientation | N (Normal) | Shell Style | box mount receptable |
| Termination | Solder Cup | Contact Type | pin contacts |
| Mounting Type | Panel Mount, Flange | Shell Plating | Black Zinc Alloy |
| Angle of Throw | Straight | Connector Type | Amphenol 97 Series - Standard Cylindrical Connector - solder type |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Olive Drab Cadmium | Mounting Style | Panel |
| Package / Case | Metal | Shell Material | solid backshell |
| Connector Usage | Threaded | Insertion Angle | 16S-1 |
| Housing Material | Aluminum Alloy | Primary Material | 5015 Commercial |
| Termination Style | Solder | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 7 | Dielectric Material | Diallyl-Phthalate |
| Number of Positions | 7 | Shell Size - Insert | 16S-1 |
| Mounting Hole Diameter | 0.12 " | Shell Material, Finish | Aluminum, Zinc Plated, Black |
| Contact Layout, Typical | 7#16 | ||
Product Info
| Type | Panel Socket | Class | A |
| Series | 97 | Features | Environmental Resistant, Single Key/Keyway Shell Polarization |
| Manufacturer | 97 Series | Product Type | Receptacles |
| Application Specifics | Commercial | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Similar Parts
.jpg&w=3840&q=75)

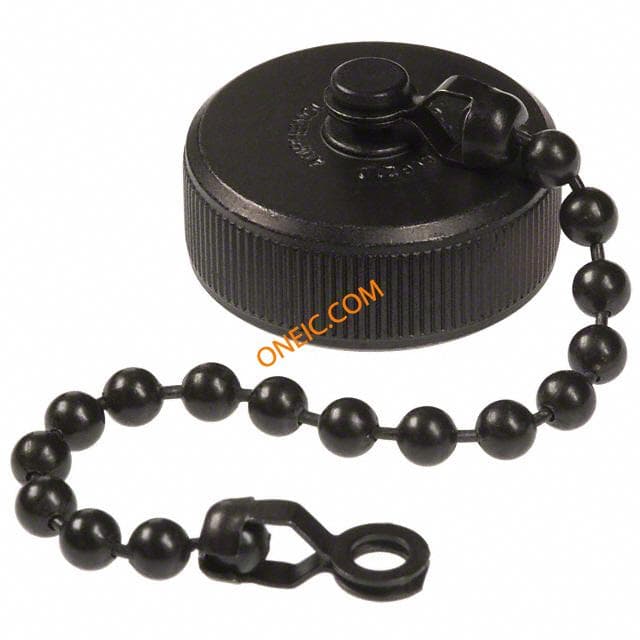

97-60-16(621)
