97-3101A-10SL-4P(946)
| Manufacturer | |
| Description | Circular MIL Spec Connector 2P Sz 10SL Pin Cable Recpt Solder Blk Zn CONN RECEPT CBL MNT 2POS W/PINS connector, metal circ, cable recept, size 10sl, 2#16 solder pin cont, black zinc fin |
| Category |
Business
| Product Category | Circular MIL Spec Connector | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | MIL Type | MIL-DTL-5015 |
| Approval Agency Marking | UL Recognized/CSA | ||
Electrical
| Voltage Rating | 500VAC, 700VDC | Current Rating (Max) | 13A |
Mechanical
| Packaging | Bulk | Cable Exit | Solid |
| Shell Size | 10 | Wire Gauge | 16 |
| Orientation | N (Normal) | Shell Style | Potting |
| Termination | Solder Cup | Contact Type | Pin |
| Mounting Type | Free Hanging (In-Line) | Shell Plating | Olive Drab Chromate over Cadmium |
| Angle of Throw | Straight | Connector Type | Receptacle, Male Pins |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Olive Drab Cadmium | Mounting Style | Wire |
| Package / Case | Metal | Shell Material | Aluminum Alloy |
| Connector Usage | Threaded | Insertion Angle | 10SL-4 |
| Contact Material | Copper Alloy | Housing Material | Aluminum Alloy |
| Primary Material | 5015 Commercial | Termination Style | Solder |
| 1st Contact Gender | Pin (Male) | Mating Orientation | Threaded |
| Number of Contacts | 2 | Dielectric Material | Diallyl-Phthalate |
| Number of Positions | 2 | Shell Size - Insert | 10SL-4 |
| Shell Material, Finish | Aluminum, Zinc Plated, Black | Contact Layout, Typical | 2#16 |
Product Info
| Type | Cable Socket | Class | A |
| Series | 97 | Features | Environmental Resistant, Single Key/Keyway Shell Polarization |
| Manufacturer | 97 Series | Product Type | Receptacles |
| Application Specifics | Commercial | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Similar Parts
97-3057-1004(621)
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Black Zinc Alloy CONN CABLE CLAMP SIZE 10SL, 12S connector accessory;ms3057a cable clamp for shell sizes 10sl;12;12s;black zinc Circular MIL Spec Strain Reliefs & Adapters Cable Clamp MS3057A Sz 10SL, 12S Blk Zn CABLE CLAMP, SIZE 10SL, 12S connector accessory, ms3057a cable clampfor shell sizes 10sl, 12, 12s, black zinc
97-3057-1004-1(621)
amphenol
Connector Accessories Clamp/Bushing Zinc Die Cast Alloy/Rubber Black Zinc Alloy Miscellaneous Connector Accessories CONN CABLE CLAMP SIZE 10SL, 12S connector accessory;ms3057a cable clamp w/rubber bushing;size 10sl;12;12s;black Circular MIL Spec Strain Reliefs & Adapters Clamp with Bushing Size 10SL, 12S CABLE GLAND, SIZE 10SL, 12S connector accessory, ms3057a cable clampw/rubber bushing, size 10sl, 12, 12s, black
97-3108B-10SL-4S(946)
amphenol

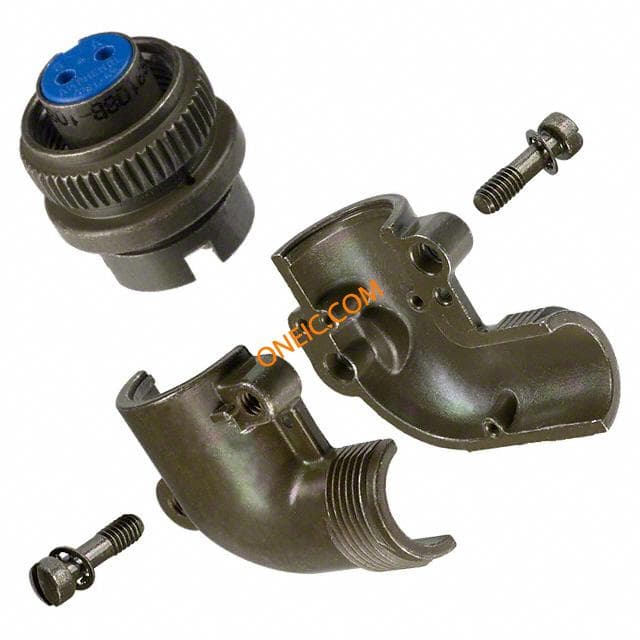

Conn MIL-C-5015 Circular SKT 2 POS Solder RA Cable Mount 2 Terminal 1 Port CONN PLUG RT ANG 2POS W/SOCKETS Circular MIL Spec Connector 2P Size 10SL Solder R/A Socket Plug connector, metal circ, rt angle plug, split bkshl, size 10sl, 2#16 solder socket, blk
