97-3100A-14S-5P(946)
| Manufacturer | |
| Description | Circular MIL Spec Connector 5P Sz 14S Wall Mount Pin Recept Solder MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RECEPT WALL MNT 5POS W/PINS connector;metal circ;wall recept;size 14s;5 #16 solder pin contact;black finish connector, metal circ, wall recept, size 14s, 5 #16 solder pin contact, black finish |
| Category |
Business
| Product Category | Circular MIL Spec Connector | Standard Package | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | MIL Type | MIL-DTL-5015 |
| Approval Agency Marking | UL Recognized/CSA | ||
Electrical
| Voltage Rating | 200VAC, 250VDC | Current Rating (Max) | 13A |
Mechanical
| Packaging | Bulk | Cable Exit | Solid |
| Shell Size | 14S | Wire Gauge | 16-22 |
| Orientation | N (Normal) | Shell Style | wall receptacle |
| Termination | Solder Cup | Contact Type | pin contacts |
| Mounting Type | Panel Mount, Flange | Shell Plating | Black Zinc Alloy |
| Angle of Throw | Straight | Connector Type | Amphenol 97 Series - Standard Cylindrical Connector - solder type |
| Contact Finish | special variation code | Fastening Type | Threaded |
| Housing Finish | Olive Drab Cadmium | Mounting Style | Panel |
| Package / Case | Metal | Shell Material | solid backshell |
| Connector Usage | Threaded | Insertion Angle | 14S-5 |
| Housing Material | Aluminum Alloy | Primary Material | 5015 Commercial |
| Termination Style | Solder | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 5 | Dielectric Material | Diallyl-Phthalate |
| Number of Positions | 5 | Shell Size - Insert | 14S-5 |
| Mounting Hole Diameter | 0.12 " | Shell Material, Finish | Aluminum, Zinc Plated, Black |
| Contact Layout, Typical | 5#16 | ||
Product Info
| Type | Panel Socket | Class | A |
| Series | 97 | Features | Environmental Resistant, Single Key/Keyway Shell Polarization |
| Manufacturer | 97 Series | Product Type | Receptacles |
| Insert Configuration | 14S-5 | Application Specifics | Commercial |
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Similar Parts
97-3057-1007(621)
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Black Zinc Alloy CONN CBL CLAMP SZ 12SL, 14, 14S connector accessory;ms3057 cable clamp;connector sizes 12sl;14;14s;black zinc Circular MIL Spec Strain Reliefs & Adapters Cable Clamp MS3057A Size 12SL, 14, 14S CABLE CLAMP, SIZE 12SL, 14, 14S CABLE CLAMP, 97 MIL-C-5015 CONNECTOR connector accessory, ms3057 cable clamp, connector sizes 12sl, 14, 14s, black zinc
.jpg&w=3840&q=75)

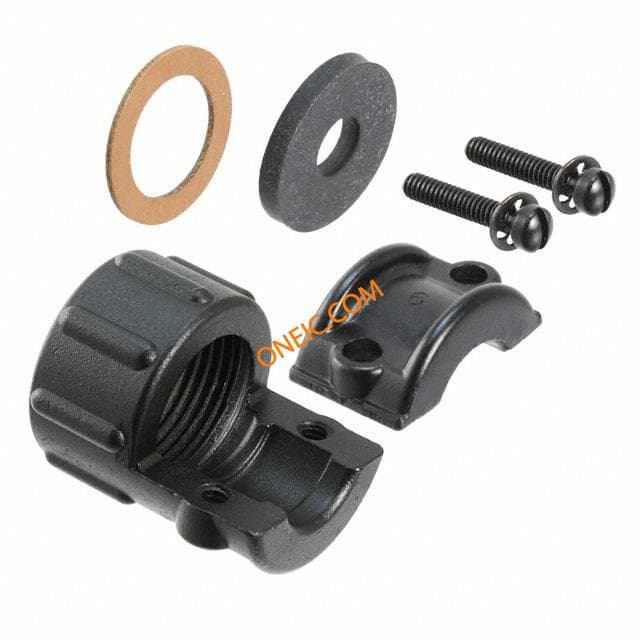

97-3057-6(621)
