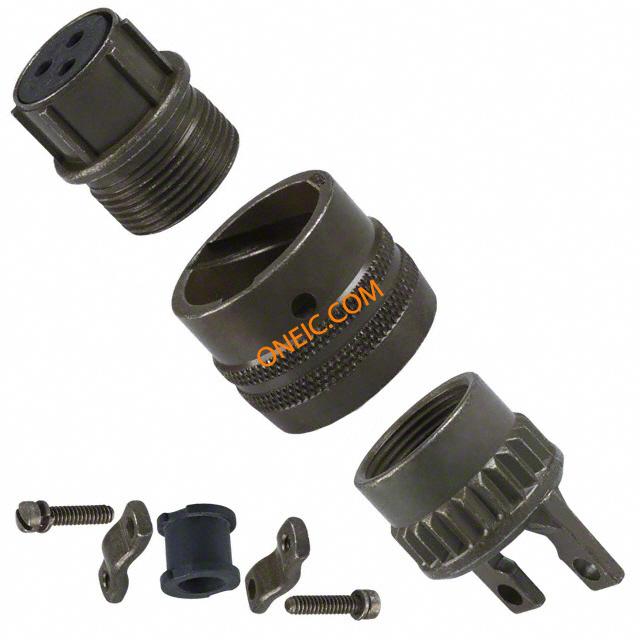

PT06A-12-3S(470)
| Manufacturer | |
| Description | CONN PLUG 3POS W/SOCKET SOLDER MIL-C-26482 Series 1 Connector, Solder Contacts Circular MIL Spec Connector 3S SIZE 12 GEN DUTY STR PLUG CONNECTOR connector, metal circ, str plug w/strain relief, cl a, sz12, 3#16 solder socket, black |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 233-0467 | Standard Package | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | MIL Type | MIL-DTL-26482 |
| Approval Agency Marking | UL Recognized | ||
Electrical
| Voltage Rating | 1000VAC | Current Rating (Max) | 13A |
Mechanical
| Packaging | Bulk | Shell Size | 12 |
| Wire Gauge | 16 | Orientation | N (Normal) |
| Shell Style | straight plug | Termination | Solder Cup |
| Contact Type | socket contacts | Mounting Type | Free Hanging (In-Line) |
| Shell Plating | Non-Conductive Black Zinc | Angle of Throw | Straight |
| Connector Type | Plug, Female Sockets | Contact Finish | non-conductive black zinc cobalt with strain relief |
| Fastening Type | Bayonet Lock | Housing Finish | Zinc Cobalt |
| Mounting Style | Wire | Package / Case | Metal |
| Shell Material | Aluminum Alloy | Connector Usage | Bayonet |
| Insertion Angle | normal (no rotation) position | Housing Material | Aluminum |
| Primary Material | 26482 Commercial | Termination Style | Solder |
| 1st Contact Gender | Socket (Female) | Mating Orientation | Bayonet |
| Number of Contacts | 3 | Dielectric Material | Neoprene |
| Number of Positions | 3 | Shell Size - Insert | 12-3 |
| Shell Material, Finish | Aluminum, Black Zinc Cobalt Plated | Contact Layout, Typical | 3#16 |
Product Info
| Type | Cable Plug | Class | A |
| Series | PT | Features | Strain Relief |
| Manufacturer | PT Series | Product Type | Plugs |
| Service Class | general duty back shell | Application Specifics | Commercial |
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
